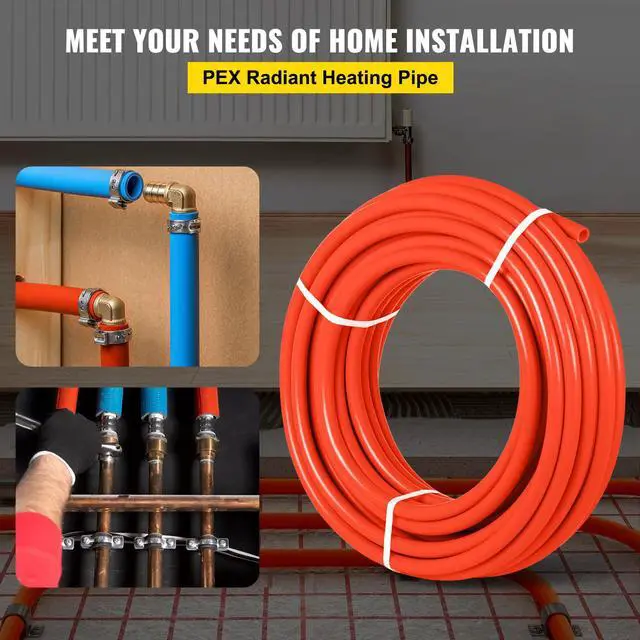

Oxygen Barrier 1/2 Inch 300 Feet Tube Coil EVOH PEX-B Pipe, for Residential Commercial Radiant Floor Heating, Red

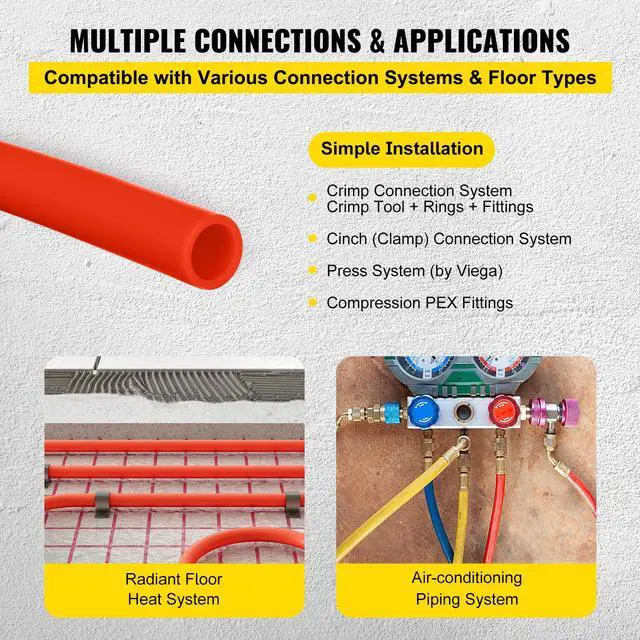

- RELIABLE PEX MATERIAL- Color: Red; Nominal Diameter: 1/2"; Total Length: 300 ft. Outside Diameter: 5/8"; Inner Diameter: 1/2"; Keep quick & smooth hot/cold water flows. Made of PEX material, non-toxic, crack-proof, leak-proof. Perfect for potable water or radiant floor water use.
- ROBUST O2 RESISTANCE- Unique EVOH layer, stop O2 into the tube, protect metal components from corrosion. This non-broken 1/2" PEX tube can tackle different weather circumstances, no matter the high or low temperature, to ensure the integrity and safer use for longer life expectancy.

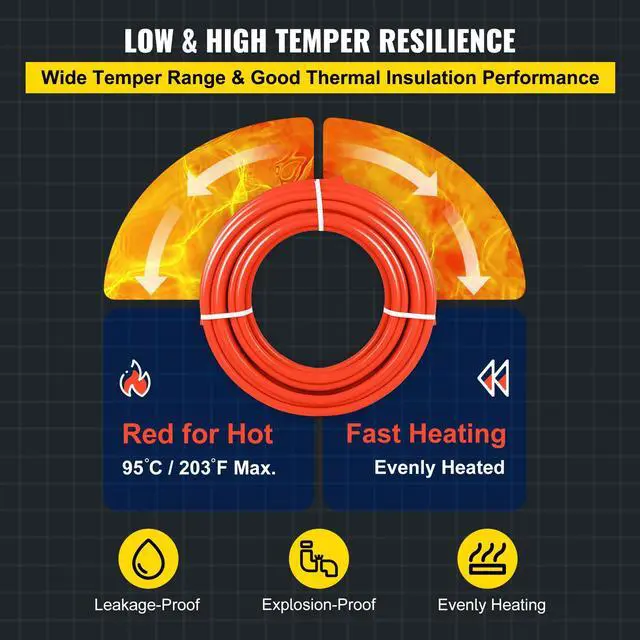

- PREMIUM FLEXIBILITY- Min.5" bending radius, easy to bend for different ground situation. Compatible water temperature: -40 to 95/-40 to 203. Big pressure capacity: 80psi @ 200, 100psi @ 180, 160psi @ 73. Thus, to ensure its good temperature resistance, crack- & leakage-proof
+
+
Overview
Specs
Reviews
Specifications
Type: PEX-B Tube (Oxygen Barrier)
Color: Red
Total Length: 300 ft/ 91.4 m

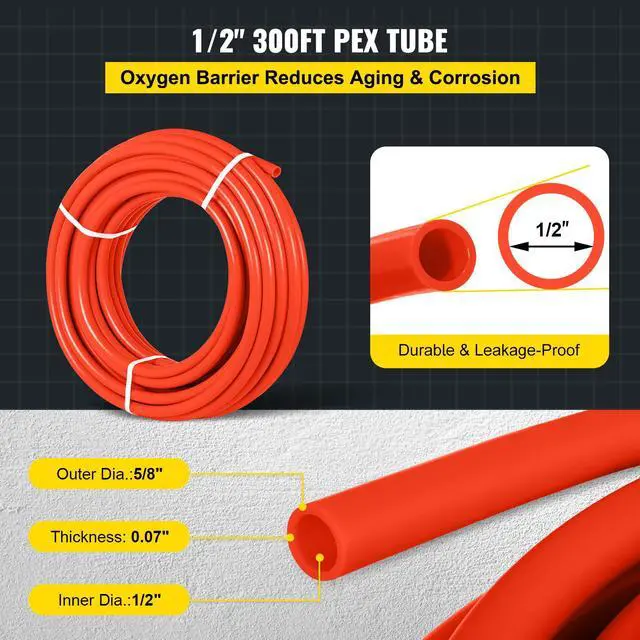

Nominal Diameter: 1/2"/ 1.2 cm
Inside Diameter: 1/2"/ 1.2 cm
Outside Diameter: 5/8" / 1.6 cm
Tube Thickness: 0.07" / 1.8 mm

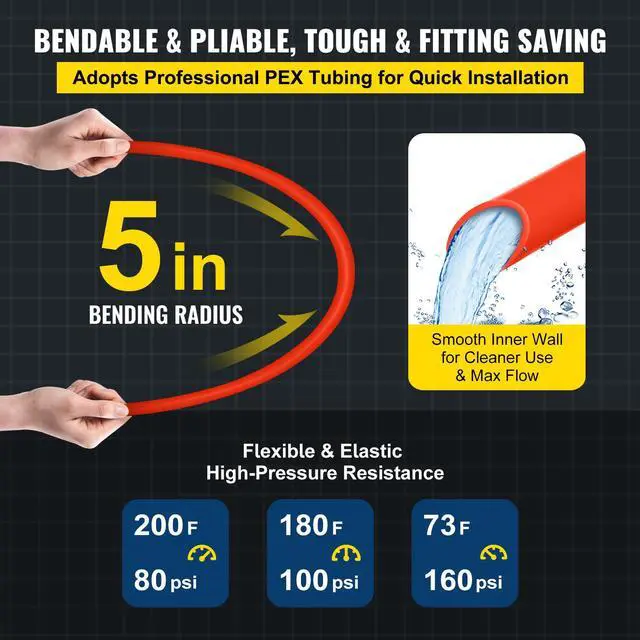

Pressure Ratings: 80psi @ 200F, 100psi @ 180F, 160psi @ 73F
Min.
Bending Radius: 5"/ 12.7 cm
ANSI/NSF 14, ANSI/NSF61, NSF-Pw (certified for radiant heating applications).
UPC listed by IAPMO
SDR-9 Dimensional Standards

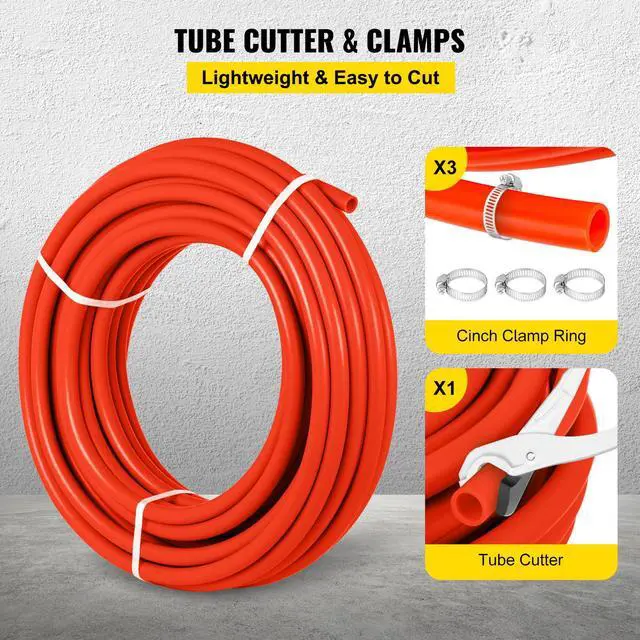

Package Content
1 x Oxygen Barrier PEX Tube
1 x Tube Cutter
3 x Cinch Clamp Ring
