    SIHAO 8.7"x23.6" High-Precision Mini Metal Lathe, 1100W Benchtop Lathe, 0-3000 RPM Mini Lathe Metal 3-Jaw Chuck for Counter Face Turning Drilling

    Be the first to review this product...
    • [INFINITELY VARIABLE SPEED]- The mini metal lathe is driven by DC motor with Power: 1.1KW. Variable Speed(Rpm): 50-3000±10%. Taper in Spindle Nose: MT5. LED screen shows you the clear and accurate speed for accurate working. Soft start, change-over switch for clockwise or counter-clockwise spondle rotation. Operate either manually or with the adjustable auto feed rate.
    • [600MM LARGE SWING RANGE]- The bench top lathe brings a 3-jaw Chuck with Diameter: 4.9"/125mm. Swing Over Bed: 8.7"/220mm and Swing Over Cross Slide: 23.6"/600mm offers more possibilities for for large size or/and heavy workpieces. Taper in Spindle Nose: MT5. Range of Imperial Threads: 8~44 T.P.I,
    • [PROFESSIONAL COMPOUND REST]- The mini lathe machine quick change tool post can achieve positions of internal cutting, face cutting and bevel cutting by changing the tool post angle and adjusting the compound rest, moving blades freely with feed rod. Heat hardening lead screw can be reversed in three speeds by turning the two handles under the variable speed rotary button.
    • [SUPPORTIVE & PROTECTIVE]- Steady rest works as an end support ensuring chatter-free operation. Follow rest is used for turning operations on long, slender workpices. Backsplash guard included.
    +
    +
    Overview
    Specs
    Reviews
    Lathe Machine

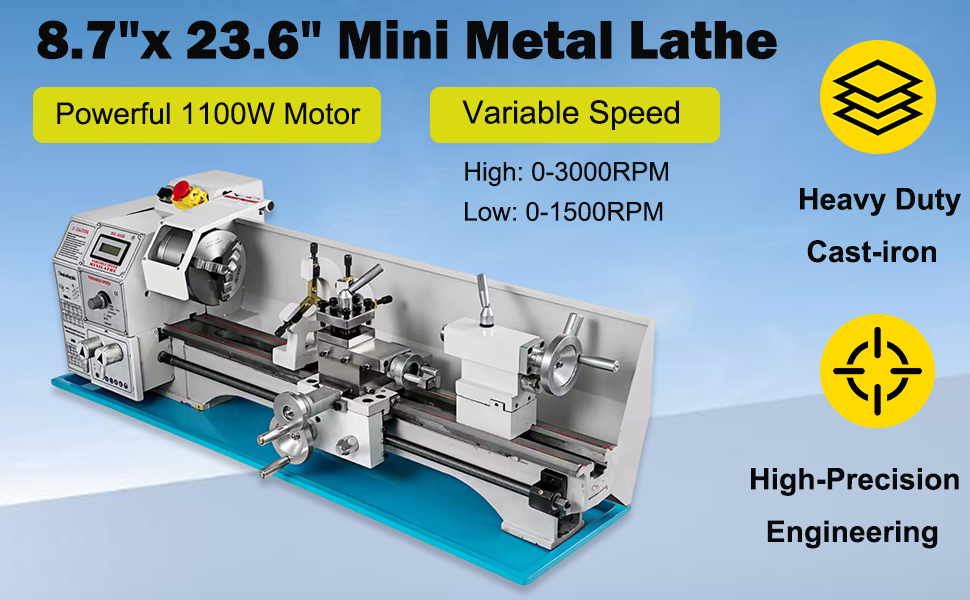

    Mini Metal Lathe Machine
    • Powered by a 1100W motor with variable speed control, offering a high range of 0 to 3000 RPM and a low range of 0 to 1500 RPM.
    • Features an 8.7" swing over bed and 23.6" center distance, accommodating large and heavy workpieces.
    • Constructed from reinforced cast iron and metal gears for stability, wear resistance, and professional-grade accuracy.
    • Supports forward and reverse operation, delivering high-precision performance for turning, drilling, threading, cutting, and polishing.
    Lathe Machine
    Specifications:

    Overall Dimension: 41.5" × 13.3" × 13.5"

    Motor Power: 1100W

    Volt: 110V 60Hz

    Swing Over Bed: 8.7"

    Distance Between Centers: 23.6"

    3-Jaw Chuck Diameter: 4.9"

    Hole Through Spindle: 1.5" / 38 mm

    Variable Speed(Rpm): 0-3000RPM/0-1500RPM

    Taper of Spindle: MT#5, Taper of Tailstock: MT#2

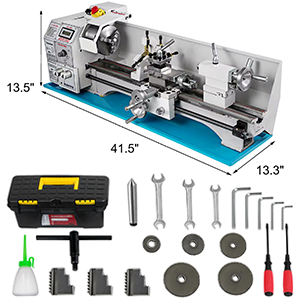

    Package Content:

    • 1 x Metal Lathe Machine

    • 5 x Metal Gears

    • 3 x Jaws

    • 1 x Oil Gun

    • 1 x Tool Kit

    • 1x Accessories Kit

    • 1x Manual

    Lathe Machine

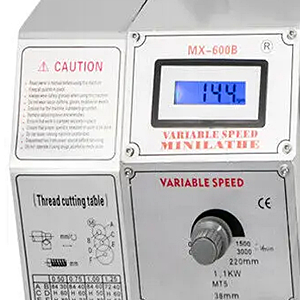

    Variable Speed & Digital Display

    Two Variable Speed Range: 0-3000rpm, 0-1500rpm, easily adjustable by turning the switch. Digital display of rotation speed with more accurate adjustment, it's more convenient to operate.

    Lathe Machine

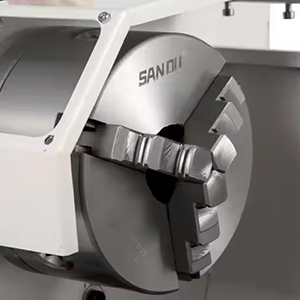

    3-Jaw Chuck

    The mini lathe bears a high-precision 3-jaw chuck, can easily handle both square and round objects, ideal for professionals.

    Lathe Machine

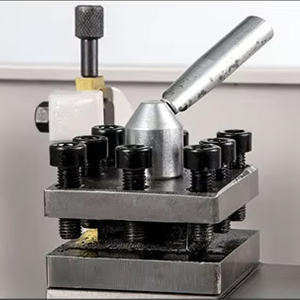

    4-Way Tool Post

    The adjustable 4-way tool post helps you to change your cutting tools and offsets for easy beveling with ease.

    Lathe Machine

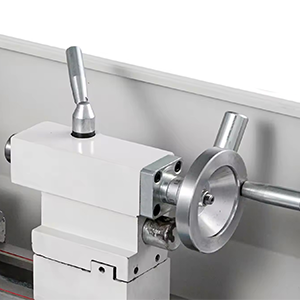

    Accurate Tailstock

    The machine has a center rest and a tailstock supports the longitudinal rotary axis of a workpiece to allows for stable operation.

    Lathe Machine

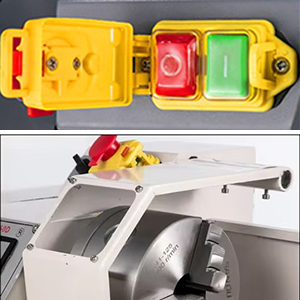

    Enhanced Safety

    Features automatic power-off cover and emergency stop button, adding extra safety during operation.

    Lathe Machine

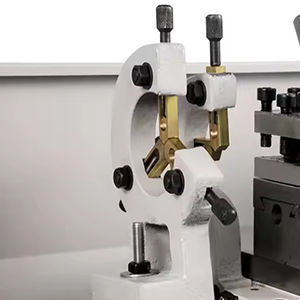

    Steady & Follower Rest

    The steady rest ensures concentricity and keeps the workpiece from wobbling while the follower rest moves along the feed when handling longer items.

    Lathe Machine
    Lathe Machine

    This metal lathe machine is powered by 1100W motor , Variable Speed Range: High: 0-3000 RPM, Low: 0-1500RPM. This mini lathe allows both forward and reverse. It's designed for high quality precision craftsmanship, including turning, drilling, threading and cutting. With a 8.7" swing over the bed and a 23.6" center distance, this benchtop lathe offers more possibilities for large size and heavy workpieces. Made of reinforced cast iron and metal gears, this lathe provides a sturdy base for a more accurate rotation, ensures wear-resistance and professional-grade accuracy.

    Specifications:

    Swing Over Bed8.7"/220mm

    Hole Through Spindle1.5"/38mm

    Range of Longitudinal Feed0.5-3mm

    Swing Over Cross Slide23.6"/600mm

    Variable Speed(Rpm)50-3000±10%

    3-Jaw Chuck Diameter4.9"/125mm

    Range of Imperial Threads8~44 T.P.I

    Net Weight83KG

    Package size:1140X480X490mm

    Package Include:

    1 x Metal Lathe

    1 x Dead Center MT2

    1 x Oil Gun

    3 x Jaw

    5 x Gear

    Some Related Accessories

    Product information

    Lathe typeMini Lathes
    Chuck typeThree Jaw Universal Chucks
    Chuck size4.9 in
    Spindle taperMT5
    BrandSIHAO
    Electrical phaseSingle Phase
    Volts110 V
    FeaturesAccurate, Easy Installation, Easy To Operate
    Maximum motor speed3000 rpm
    Manufacturer Part NumberX600
