Air Compressor Filter Regulator, 1/2" NPT 3-Stage 5m & 0.3m & 0.1m Air Drying System with Micron Filter and Desiccant Dryer, Manual Drain Air Compressor Water Separator 175PSI Max Pressure

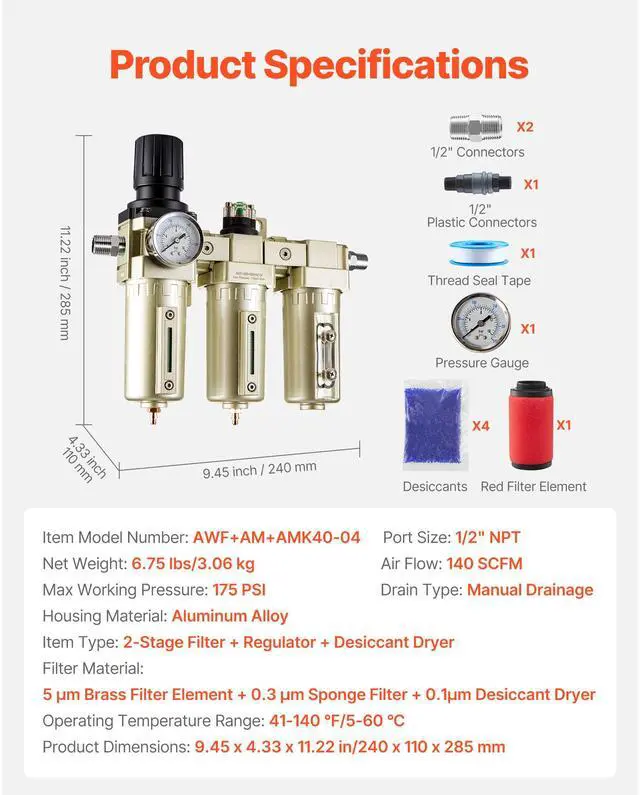

- Specifications
- Item Model Number: AWF+AM+AMK40-04

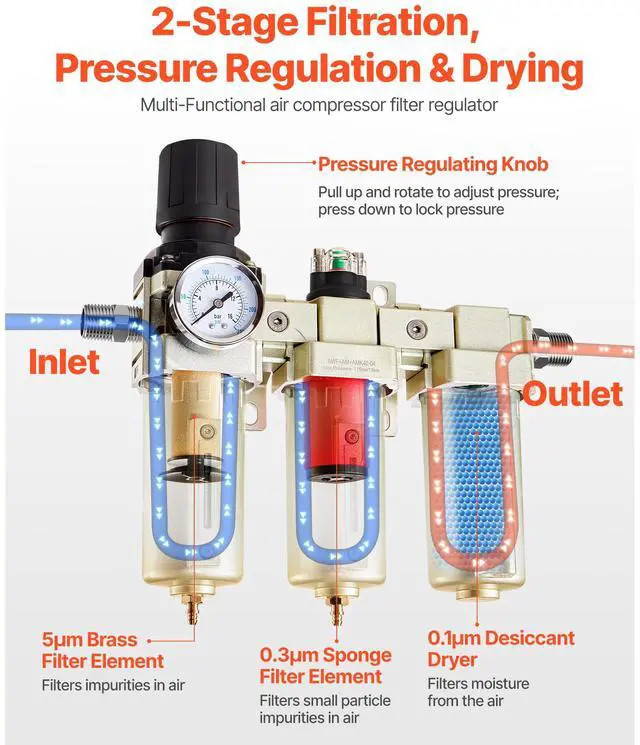

- Item Type: 2-Stage Filter + Regulator + Desiccant Dryer

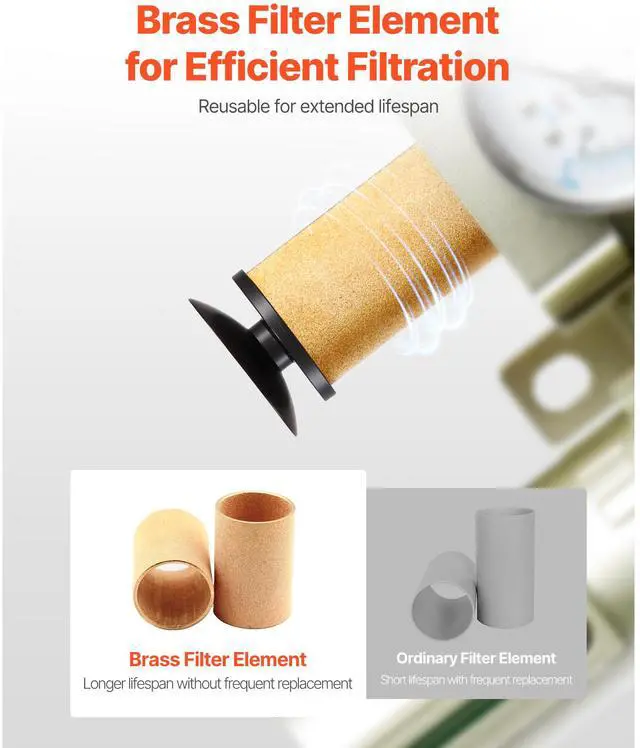

- Filter Material: 5 m Brass Filter Element + 0.3 m Sponge Filter + 0.1m Desiccant Dryer

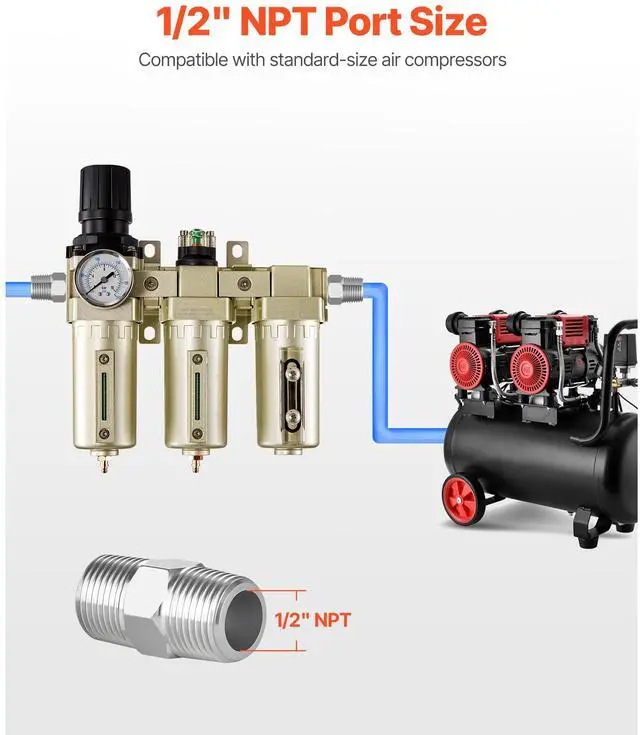

- Port Size: 1/2" NPT
- Air Flow: 140 SCFM
- Max Working Pressure: 175 PSI
- Operating Temperature Range: 41-140 /5-60
- Housing Material: Aluminum Alloy

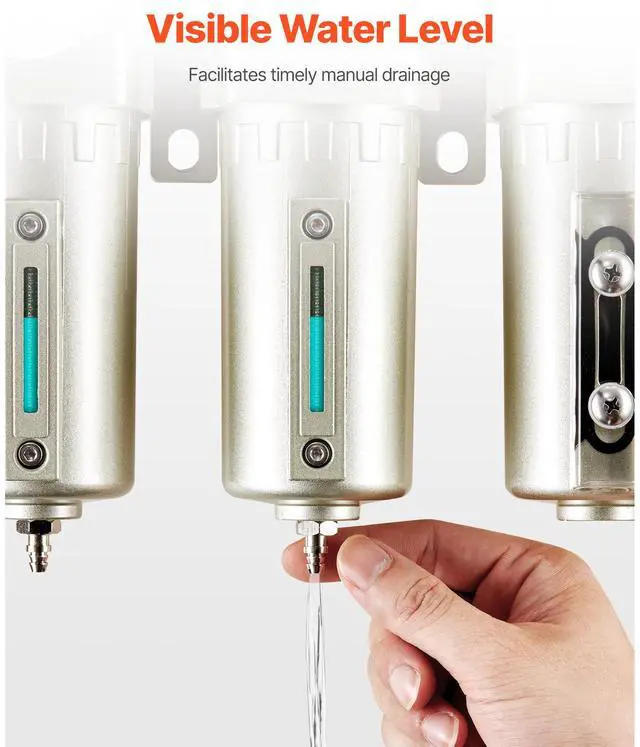

- Drain Type: Manual Drainage
- Net Weight: 6.75 lbs/3.06 kg
- Product Dimensions: 9.45 x 4.33 x 11.22 in/240 x 110 x 285 mm

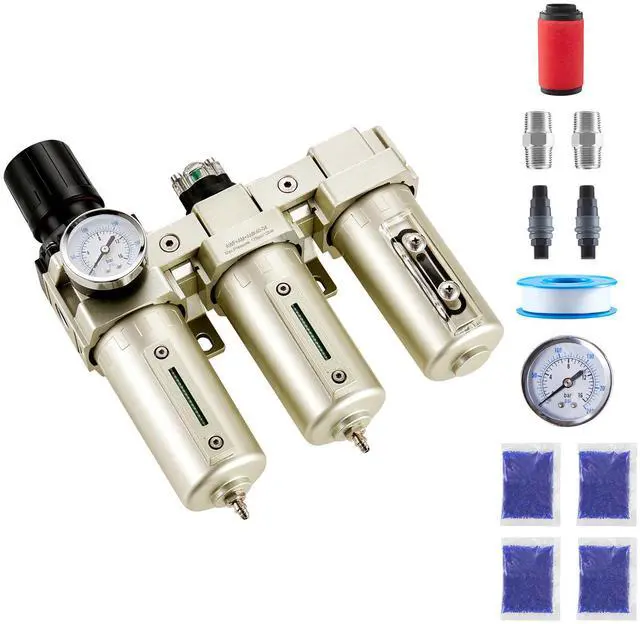

- Package Content
- 1 x Air Compressor Filter Regulator
- 1 x Thread Seal Tape
- 2 x 1/2" Connectors
- 1 x Pressure Gauge
- 1 x 1/2" Male-Female Plastic Connectors
- 4 x Desiccants
- 1 x Red Filter Element
+
+
Overview
Specs
Reviews
Specifications
Item Model Number: AWF+AM+AMK40-04
Item Type: 2-Stage Filter + Regulator + Desiccant Dryer
Filter Material: 5 m Brass Filter Element + 0.3 m Sponge Filter + 0.1 m Desiccant Dryer
Port Size: 1/2" NPT
Air Flow: 140 SCFM
Max Working Pressure: 175 PSI
Operating Temperature Range: 41-140 /5-60
Housing Material: Aluminum Alloy
Drain Type: Manual Drainage
Net Weight: 6.75 lbs/ 3.06 kg
Product Dimensions: 9.45 x 4.33 x 11.22 in/240 x 110 x 285 mm
Package Content
1 x Air Compressor Filter Regulator
1 x Thread Seal Tape
2 x 1/2" Connectors
1 x Pressure Gauge
1 x 1/2" Male-Female Plastic Connectors
4 x Desiccants
1 x Red Filter Element
