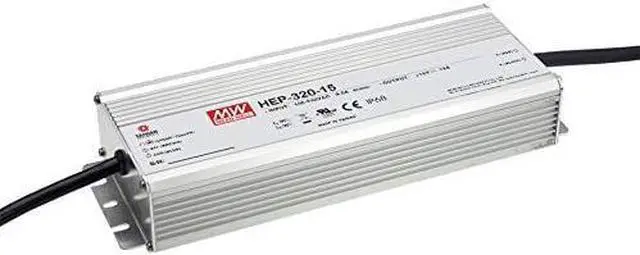

MEAN WELL HEP-320-24 24V 13.34A 320.16W Single Output Switching Power Supply Harsh Environment
- Universal AC input 90~305VAC
- High efficiency up to 96%
- Fanless design, cooling by free air convection
- Protections: Short circuit / Overload / Over voltage / Over temperature
- 6 years warranty
+
+
Overview
Specs
Reviews

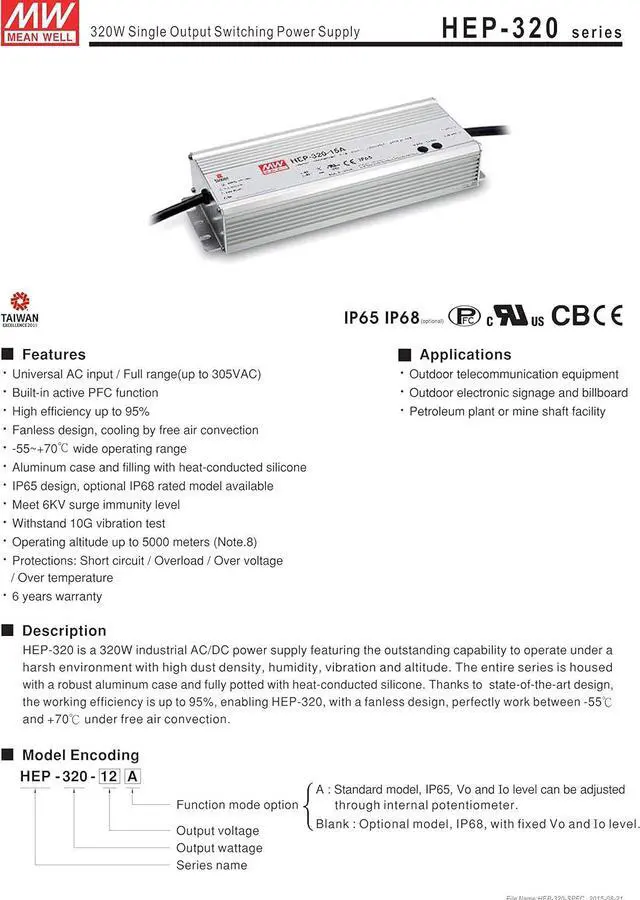

Features
Universal AC input 90~305VAC
Built-in active PFC function
No load power consumption <0.5W at remote OFF(HEP-600)
High efficiency up to 96%
Fanless design, cooling by free air convection
-55~+70¡ãC wide operating range (HEP-240/320); -40~+70¡ãC wide operating range (HEP-600)
Meet 6kV surge immunity level (HEP-240/320)
Withstand 10G vibration test
Operating altitude up to 5000 meters
Protections: Short circuit / Overload / Over voltage / Over temperature
Multiple models for choice (HEP-240/320): A-Type: IP65 rated, Vo and Io can be adjusted through internal potentiometer
Blank-Type(option): IP68 rated, Vo and Io fixed
Suitable for general industrial applications at high/low temperature, high dust, high moisture, high vibration, high salt or outdoor environment
6 years warranty
Universal AC input 90~305VAC
Built-in active PFC function
No load power consumption <0.5W at remote OFF(HEP-600)
High efficiency up to 96%
Fanless design, cooling by free air convection
-55~+70¡ãC wide operating range (HEP-240/320); -40~+70¡ãC wide operating range (HEP-600)
Meet 6kV surge immunity level (HEP-240/320)
Withstand 10G vibration test
Operating altitude up to 5000 meters
Protections: Short circuit / Overload / Over voltage / Over temperature
Multiple models for choice (HEP-240/320): A-Type: IP65 rated, Vo and Io can be adjusted through internal potentiometer
Blank-Type(option): IP68 rated, Vo and Io fixed
Suitable for general industrial applications at high/low temperature, high dust, high moisture, high vibration, high salt or outdoor environment
6 years warranty
