Embedded Printer Module POS Receipt Ticket Barcode with USB RS232 TTL Supports ESC Print Command

Suitable for embedded products in various industries, such as weighing apparatus, industry, food, soil, electricity, , temperature and humidity analysis instrument, fire control instrument, cash register, card machine, etc.

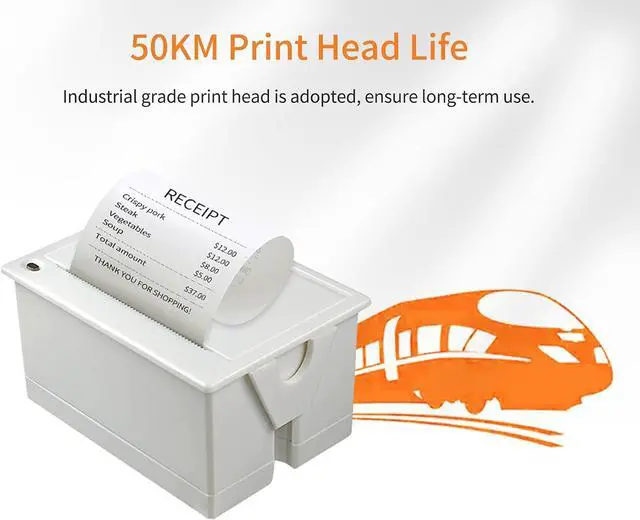

50KM reliability TPH life, industrial grade print is adopted, ensure long-term use. , 60mm/s print , clear printing and high efficiency, it will work perfectly with your device.

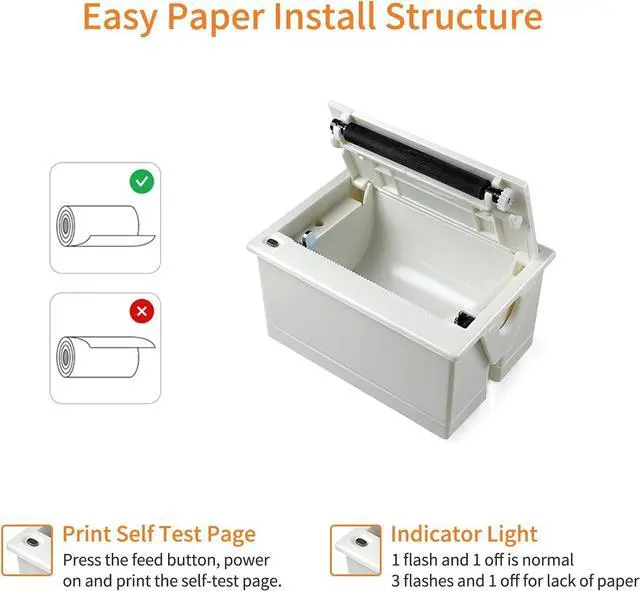

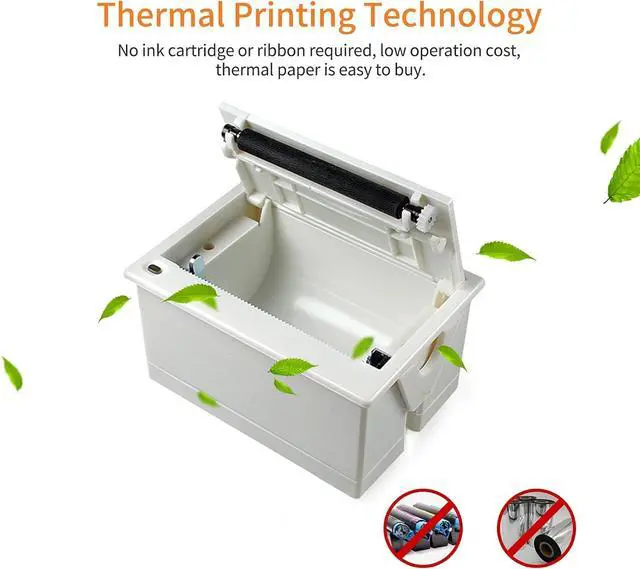

Adopting printing technology, no ink cartridge or ribbon required, low operation cost, paper is easy to buy. Easy paper install structure, simple and convenient to operate.
A variety of content can be printed, multi-language text/picture//1D/QR code all support printing.

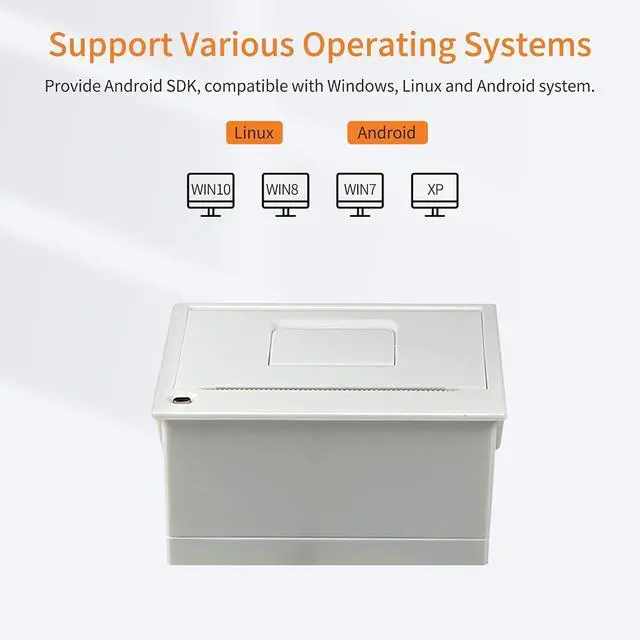

58mm embedded printer module, support secondary development(print command, SDK). With USB/RS232/TTL , support ESC/POS command, support various operating systems, provide Android SDK, compatible with , Linux and Android system.Note: Only power cable and TTL cable are provided.

Overview

Specs

Reviews

Specifications:

Model: EM5822

Color: White

Power Supply: 5-9V/12V(Optional)

With Cable: USB Cable/TTL Cable/RS232 Cable(Optional)

Printing Method: Printing

: USB/RS232/TTL

Supported Text and Graphics:

-1D: Codebar/code93/code39/code128/ENA13/ITF25/UPC-A/UPC-E

-2D: QR

Print : 60mm/s

Baud Rate: Default 9600

Resolution: 203dpi

Reliability TPH Life: 50KM

Operating System: Support Linux, XP/7/8/10, Android

Paper Width: 58mm±0.05mm

Paper Thickness: 0.05~0.1mm

Print Width: 48mm

Roll Diameter: Support Max. 40mm

Print Command: ESC/POS

Paper Cutting Method: Manual Paper Tearing

Working Temperature: -10~50, Working Humidity: 20~80%

Storage Temperature: 15~ 20, Storage Humidity: 45~75%

Item Size: 8.2 * 5.8 * 4.4cm / 3.2 * 2.3 * 1.7in

Installation Size: 7.8 * 5.3 * 4.3mm / 3.1 * 2.1 * 1.7in

Item Weight: 140g / 4.9oz

Package Size: 18.7 * 10.0 * 5.3cm / 7.4 * 3.9 * 2.1in

Package Weight: 192g / 6.8oz

Notes:

Does not support any mobile phones and tablets.

The USB of XP/win7/win8/win10 uses driver printing, and the serial port of XP/win7/win8/win10 provides development package; Android's USB port and serial port provide development package and technical support, Linux provides development package and technical support.

Packing List:

1 * Printer Module

1 * Paper

1 * Power Cable

1 * TTL Cable
