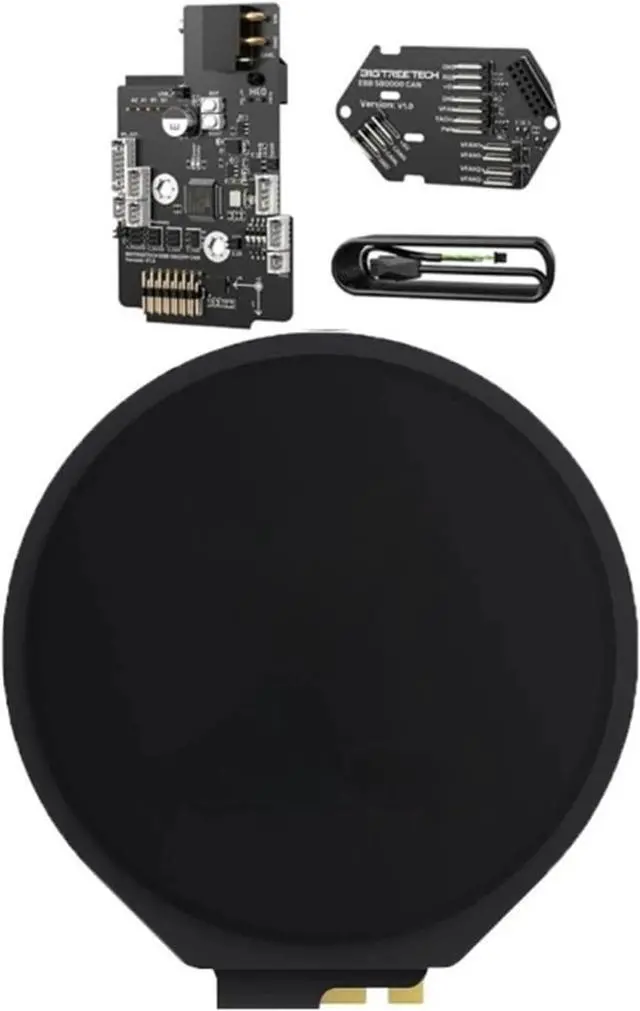

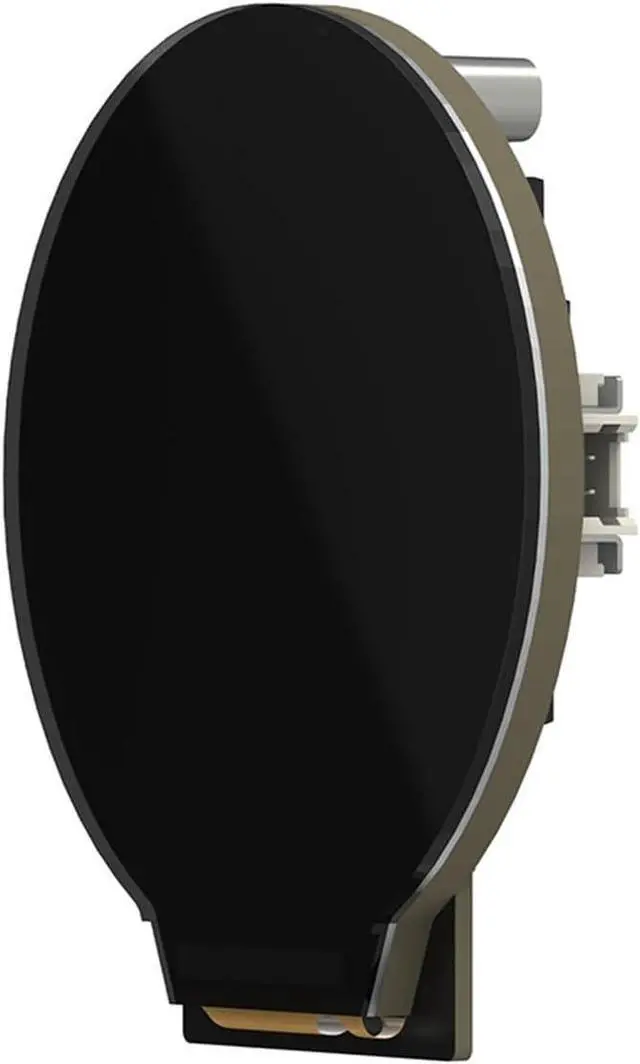

KNOMI 1.28" Circular Smart Display with 65K Colors for 3D Printers - Klipper/Compatible with Voron V2.4/Voron Stealthburner (Not for A1/P1/X1)(V2.0 SB2209 PR2040)

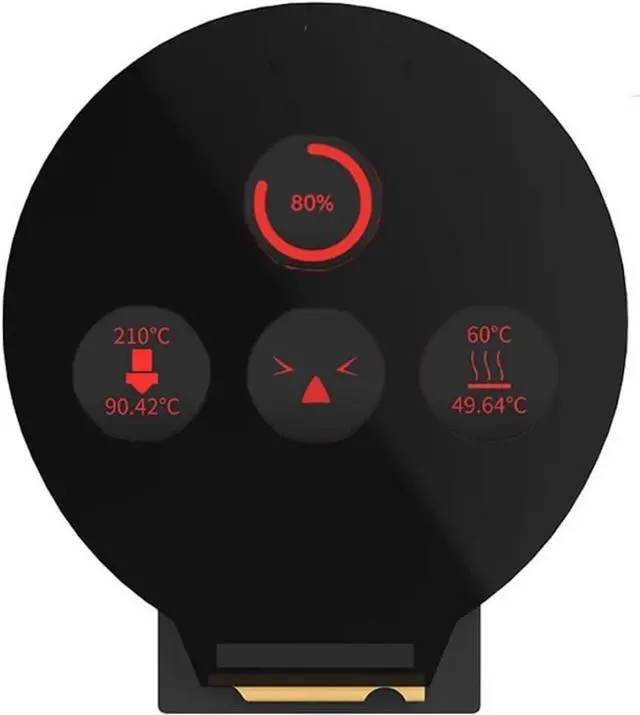

- Crystal Clear Visuals: Immerse yourself in vibrant 65K color clarity with a 1.28" circular screen, bringing your 3D printing data to life like never before.
- Klipper Ready: Seamlessly integrate with Klipper firmware for advanced control, ensuring precise temperature monitoring and real-time adjustments.

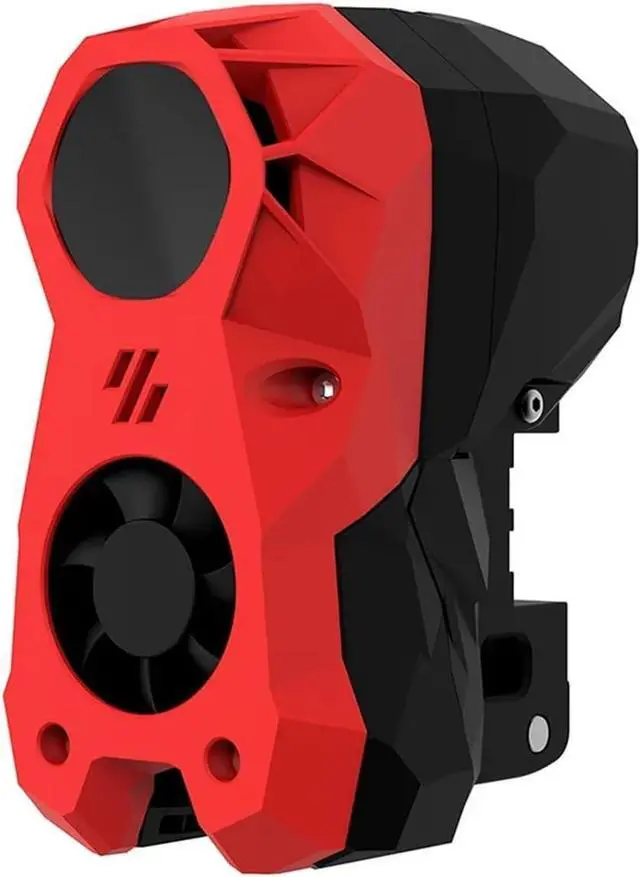

- Voron Series Compatibility: Compatible With Voron V2.4 and Stealthburner, delivering a perfect fit for your high-end 3D printer setup.
- Enhanced User Experience: Enjoy intuitive touch controls and a responsive interface, making printer management as easy as a tap.
- Plug-and-Play Installation: Save time with hassle-free setupsimply connect and start optimizing your printing workflow instantly.
- Future-Proof Design: Built to last with premium materials, ensuring durability even in demanding 3D printing environments.
+
+
Overview
Specs
Reviews

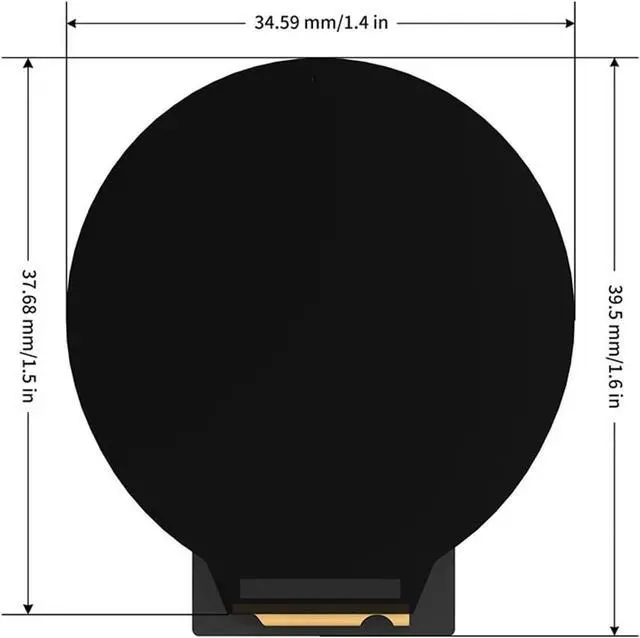

Overall Dimensions:34.6mm x 37.9mm x 3.5mm
Screen Size:1.28 inches
Resolution:240RGB x 240DOTS
Display Area:32.4mm (H) x 32.4mm (V)
Viewing Angle:178°
Backlight Brightness:400 Cd/m²
Driver Chip:GC9A01
Input:DC 5V-24V
Logic Voltage:DC 3.3V
Rated Power:6.4W, peak 8.6W

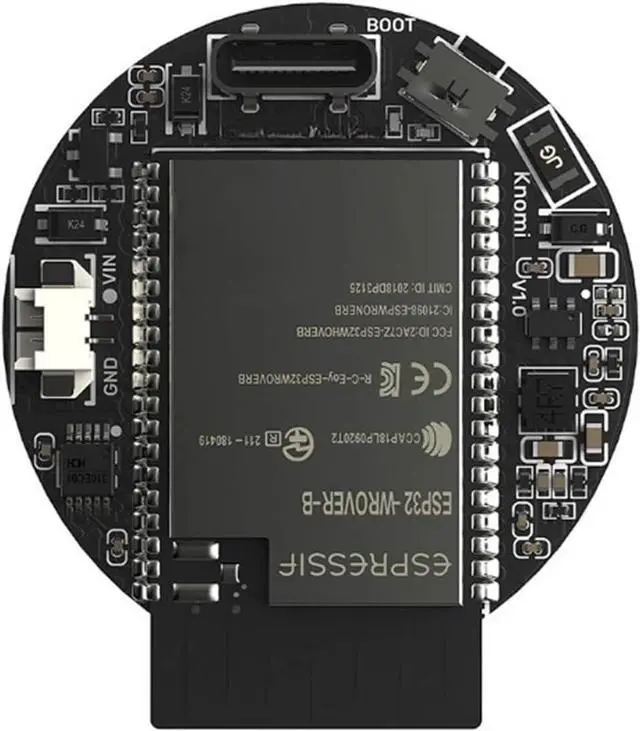

Communication:ESP32-WIFI 802.11 b/g/n (802.11n, up to 150 Mbps)
perating center frequency range: 2412 - 2484 MHz
Memory:Flash: 4MB; PSRAM: 8MB
Firmware Support:Klipper
Operating Temperature:-20°C to +70°C
Storage Temperature:-30°C to +80°C
Backlight Lifespan>20,000 hours
Compatible With:EBB SB2240 CAN,EBB SB2209 CAN,Voron V2.4 Voron Stealthburner
Specifications
Microprocessor: Arm 32-bit Cortex-M0+ CPU STM32G0B1CBT6 64MHz
Input voltage: DC12V-DC24V 9A
Logical voltage: DC 3.3V
Heating interface: heating rod (E0), maximum output current: 5A
Onboard sensor: ADXL345
Fan interface: two CNC fans (FAN0, FAN1). One four-wire fan port.
Fan port Maximum output current: 1A, peak value 1.5A
Expansion interface: EndStop, ABL, RGB, PT100/PT1000, USB interface, CAN interface, SPI interface
Motor drive: onboard TMC2209
Model Number : BTT Display Screen
Item Type : Display Screen
Screen Size:1.28 inches
Resolution:240RGB x 240DOTS
Display Area:32.4mm (H) x 32.4mm (V)
Viewing Angle:178°
Backlight Brightness:400 Cd/m²
Driver Chip:GC9A01
Input:DC 5V-24V
Logic Voltage:DC 3.3V
Rated Power:6.4W, peak 8.6W
Communication:ESP32-WIFI 802.11 b/g/n (802.11n, up to 150 Mbps)
perating center frequency range: 2412 - 2484 MHz
Memory:Flash: 4MB; PSRAM: 8MB
Firmware Support:Klipper
Operating Temperature:-20°C to +70°C
Storage Temperature:-30°C to +80°C
Backlight Lifespan>20,000 hours
Compatible With:EBB SB2240 CAN,EBB SB2209 CAN,Voron V2.4 Voron Stealthburner
Specifications
Microprocessor: Arm 32-bit Cortex-M0+ CPU STM32G0B1CBT6 64MHz
Input voltage: DC12V-DC24V 9A
Logical voltage: DC 3.3V
Heating interface: heating rod (E0), maximum output current: 5A
Onboard sensor: ADXL345
Fan interface: two CNC fans (FAN0, FAN1). One four-wire fan port.
Fan port Maximum output current: 1A, peak value 1.5A
Expansion interface: EndStop, ABL, RGB, PT100/PT1000, USB interface, CAN interface, SPI interface
Motor drive: onboard TMC2209
Model Number : BTT Display Screen
Item Type : Display Screen
