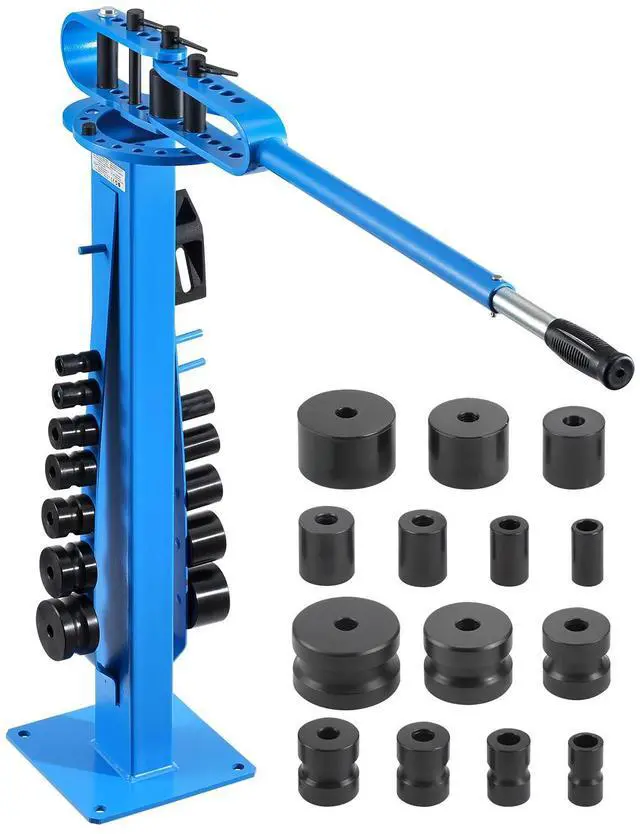

Manual Bending Machine, Pipe Tube Bender with 14 Bending Dies, 200° Heavy-Duty Tube Bending Tool for Copper Aluminum Iron Pipes, Ideal for HVAC Air Conditioning Refrigerator Auto Repair

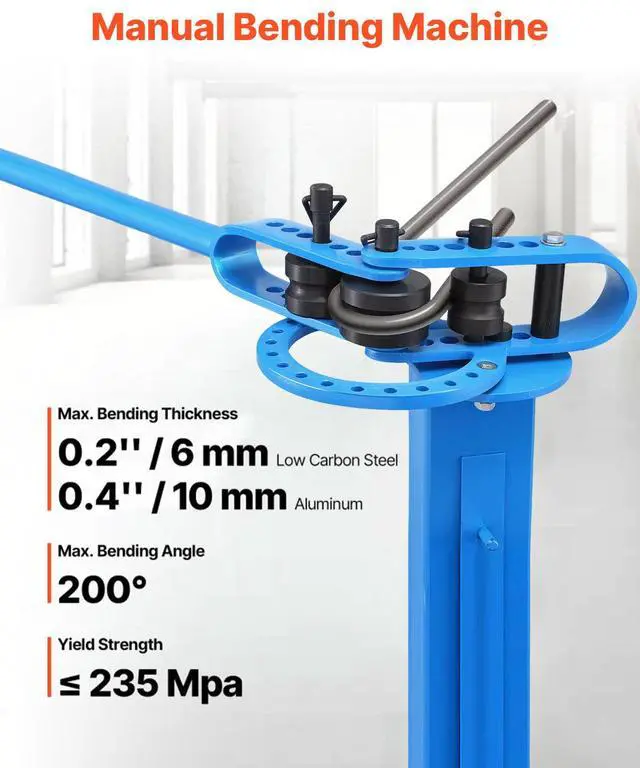

- Exceptional Bending Capability: This manual bending machine supports up to 2-inch wide flat steel or steel plates, 0.65-inch O.D. hollow round pipes, and 1-inch O.D. round steel bars. It can smoothly bend low-carbon steel under 0.2'' thick and aluminum under 0.4'' thick, with a maximum bending angle of 200-degree to meet diverse bending needs.

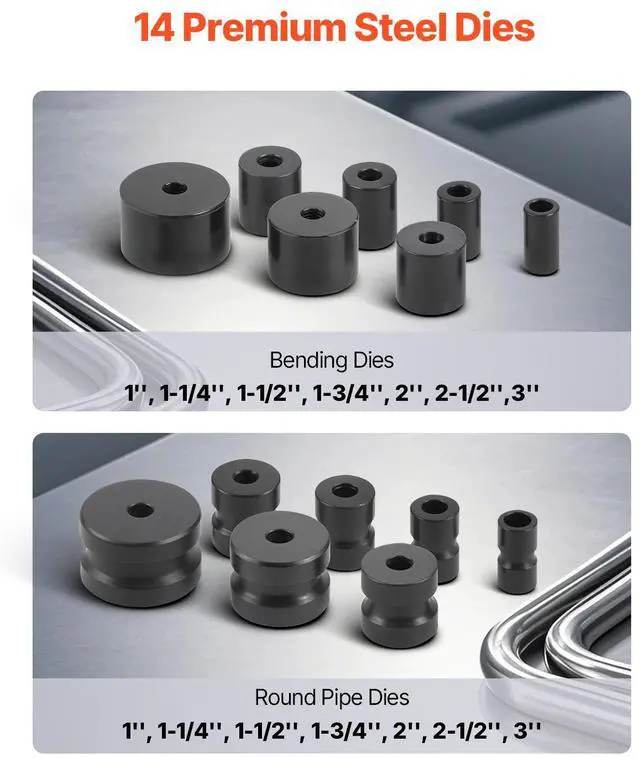

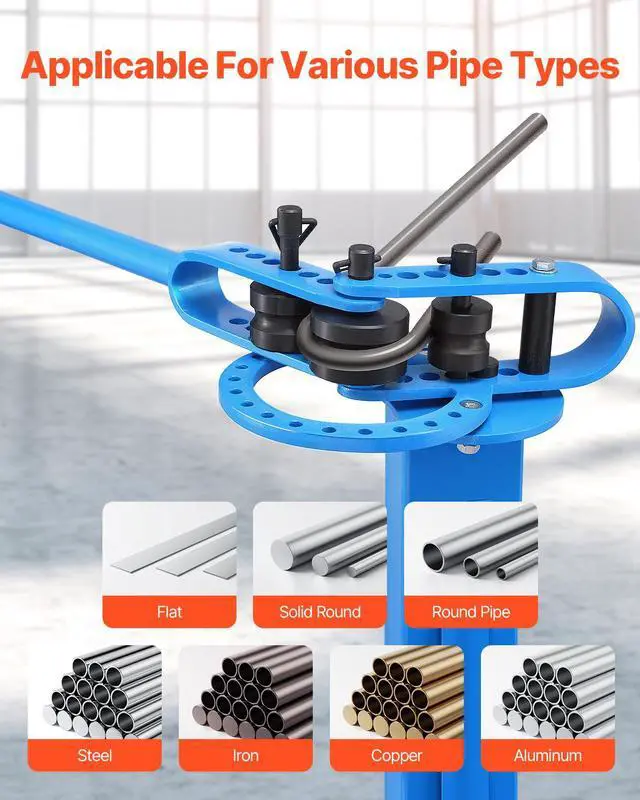

- 14 High-Quality Dies: This manual pipe bender comes with 14 dies for versatile use: 7 bending dies (1", 1-1/4", 1-1/2", 1-3/4", 2", 2-1/2", and 3") and 7 round pipe dies (1", 1-1/4", 1-1/2", 1-3/4", 2", 2-1/2", and 3"), suitable for flat bars, round pipes, solid square pipes and solid round pipes.
- Durable Carbon Steel Built: Made from high-strength steel, this tube bending machine performs exceptionally well with metal pipes, ensuring long service life and reliable performance.

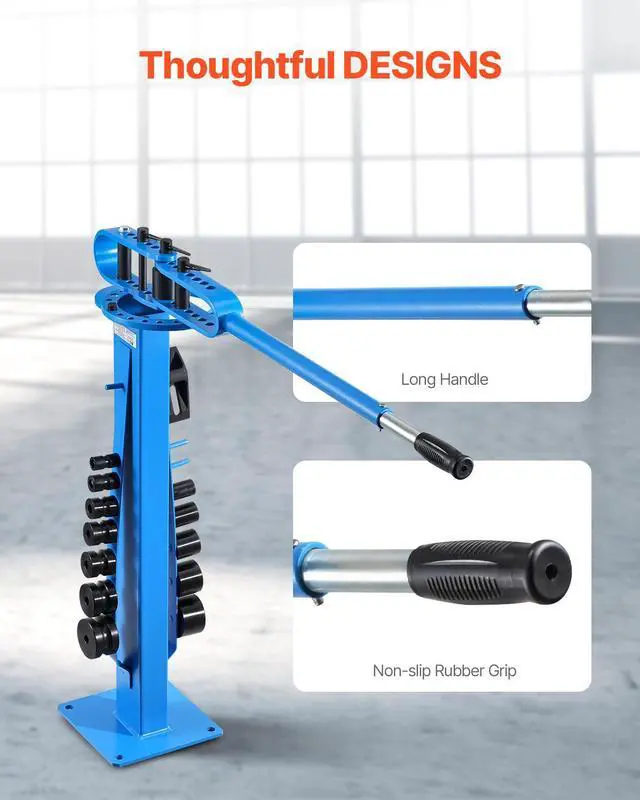

- Ergonomic Design: This tube bending machine features a non-slip rubber grip, ensuring a secure and stable hold during bending
+
+
Overview
Specs
Reviews

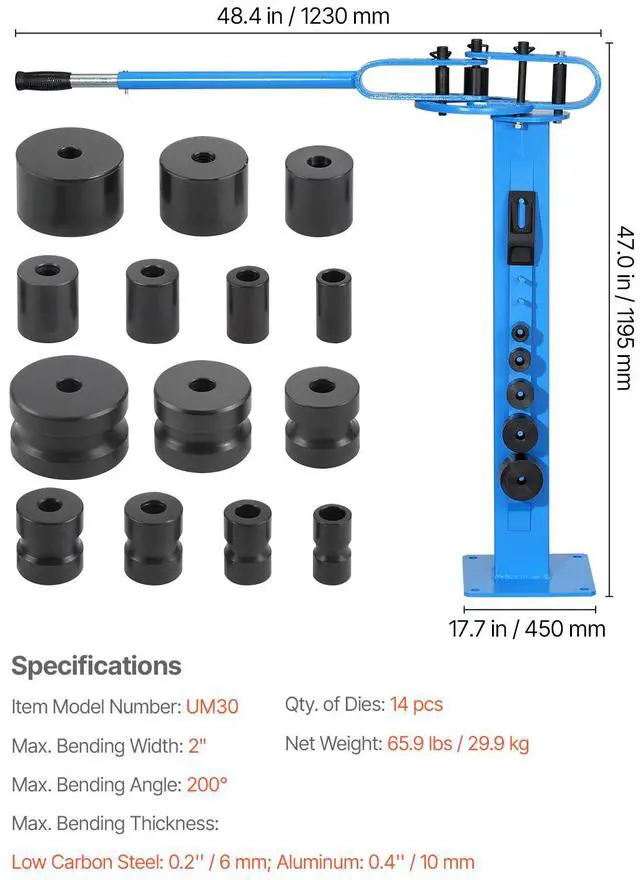

Specifications
Item Model Number: UM30
Max.
Bending Thickness: 0.2 '' / 6 mm (Low Carbon Steel); 0.4 '' / 10 mm (Aluminum)
Max.
Bending Angle: 200°
Qty. of
Dies: 14 pcs
Net Weight: 65.9 lbs / 29.9 kg
Product Dimensions: 48.4 × 47.0 × 17.7 in / 1230 x 1195 x 450 mm
Package Content
14 x Bending Dies
7 x Bending Dies (1'', 1-1/4'', 1-1/2'', 1-3/4'', 2'', 2-1/2'', and 3'')
7 x Rounding Dies (1'', 1-1/4'', 1-1/2'', 1-3/4'', 2'', 2-1/2'', and 3'')
1 x 44'' Telescoping Handle
1 x Forming Dies
1 x L Die
1 x Curve Die
1 x Pin with Bushing
1 x Disc Pan
1 x 8 mm Small Pin
3 x Large Pin
2 x Limit Pin
3 x 11 mm Gasket Busing
1 x 70 mm Pin Bushing
1 x Triangle Shaper
1 x Square Die
1 x Limit Ring
1 x Cotter Pin
2 x Countersunk Head Bolt (M10x40)
1 x Hex Cap Bolt (M10x40)
1 x Hex Cap Screw (M10x120)
1 x Pin (M6x40)
4 x Nut M10
4 x Spring Gasket
4 x Flat Gasket
1 x User Manual
