InfiRay P2 Pro Thermal Camera 25 Hz Thermal Imager for iPhone iOS 256x192 IR Thermal +Magnetic Macro lens

Specifications

:
Model: P2 Pro
Resolution: 256x192
Pixel pitch: 12 m
Operating Band: 8-14 m
NETD: <50mk@25°C, F#1.0
Performance:
Frame rate: 25Hz
Operating temperature: -10°C~+55°C
Storage temperature: -40°C~+85°C
Power consumption: 350mW
Processor: Self-developed ASIC chip
Lens
Focal length: 3.6 mm
Aperture: F 1.1
FOV: 56.0 °x 42.2 °
Focusing mode: athermalized prime lens
Measuring range: -20°C~550°C
Measuring error: ± 2°C (± 2°C of reading, the greater shall prevail)
Temperature correction: emissivity, distance, environmental temperature
Shell
Size: 27X18X 9.8 (mm)
Color: Silver
Weight: 9g
Interface: USB Type C
App function:
Palette: White/black-hot+6 pseudo colors
Measurement Method: Point/Line/Area temperature measurement
Information Sharing: Instant picture sharing
Data Analysis: Secondary temperature analysis and processing if images
Imaging Tool: Android 9.0 and above
Software Update: Online update
APP Installation: P2 Pro

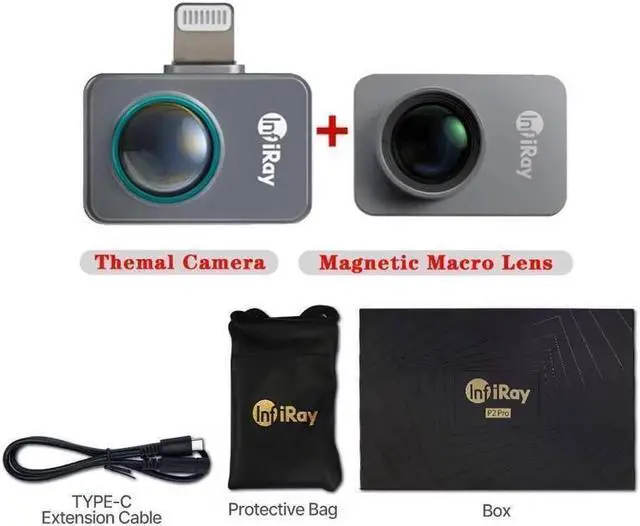

package content
1X P2 Pro
1X Protective bag
1X Connecting line
1X Cleaning Cloth
1X Manual
1X Box
