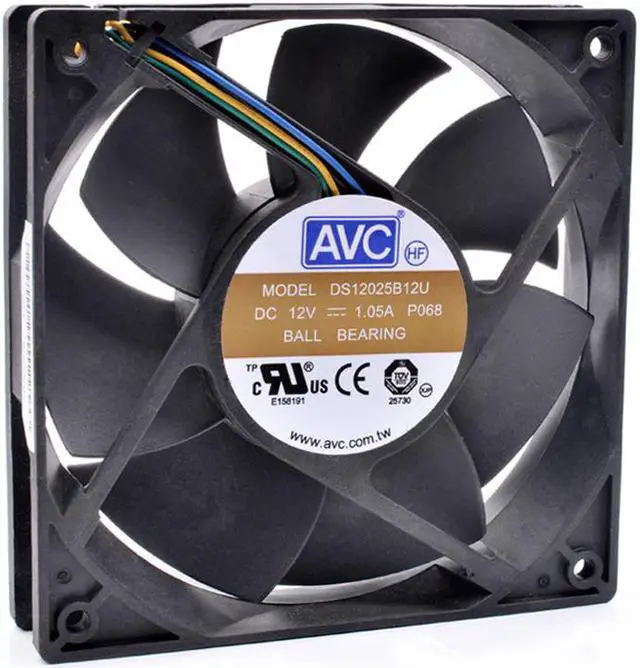

Main image of DS12025B12U 12cm 12025 120x120x25mm 12V 1.05A 4 lines 4pin pwm server chassis cooling fan

Shop All Revitol Products | Visit Goldendisk Store

DS12025B12U 12cm 12025 120x120x25mm 12V 1.05A 4 lines 4pin pwm server chassis cooling fan

DS12025B12U 12cm 12025 120x120x25mm 12V 1.05A 4 lines 4pin pwm server chassis cooling fan

Overview

Reviews

Application:Computer Case
Lines:4 Lines
Model Number:DS12025B12U
Type:Fan
Fan Size:120x120x25mm
Package:Yes
Air Volume:42.5CFM
Power:5.1 W
Bearing:Two Ball Bearing
Power Interface:4pin
Fan Life:100000 hrs
Fan Speed Control:No RPM
Noise:38dba

Size: 120X120X25MM
Bearing: Double ball bearing
Voltage: DC 12V
Current: 1.05A
Power: 12.6W
Speed: 3800RPM (full speed)
Air volume: 120.16CFM
Noise: 45.5 (full speed)
Interface: motherboard 5PIN interface (4 lines)
Speed measurement: Support speed measurement function
Weight: 230 grams
PWM fan is only supported by the motherboard with four-pin connector
