Power Supply, 250W Power Supply Switching Power Supply 47~63Hz LRS Power Supply for Industry(LRS-250-24, pink)

Feature:

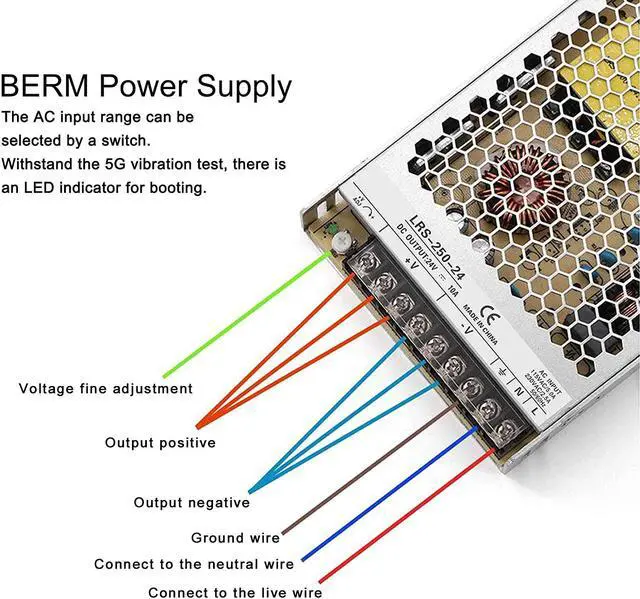

1. AC input range can be selected by switch, small in size and with good performance.
2. The product withstands the 5G vibration test and has an LED indicator for booting.

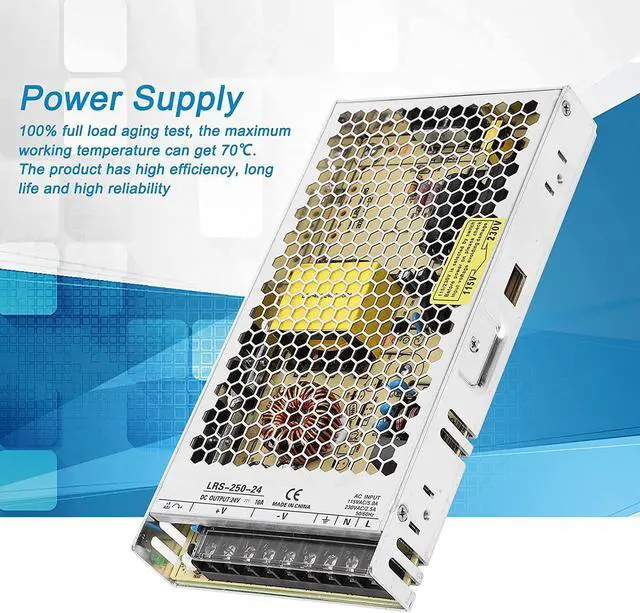

3. 100% full load aging test, the maximum working temperature can get 70.
4. The product is highly efficient, strong and durable, has a long service life.
5. Strict quality control and quality assurance, high safety factor, can be used with peace of mind.


Specification:
Item Type: BERM Power Supply
Material: Aluminum, PCB
Purpose: Power supply function
Output Value:
DC Voltage: 12V/ 24V
Rated Current: 20A/ 10A
Current Range: 0~20A/ 0~10A
Rated Power: 240W
Ripple and Noise (maximum): 120mVp-p/ 150mVp-p
Voltage Adjustment Range: 10.2 ~ 13.8V/ 21.6 ~ 28.8V
Withstand Voltage: ±1.0%/ ±1.0%
Line Adjustment: ±0.5%/ ±0.5%
Load Regulation: ±0.5%/ ±0.5%
Setting, Rise Time: 1300ms, 50ms/ 230VAC; 1300ms, 50ms/ 115VAC (full load);
Holding Time (typical Value): 16ms/ 230VAC; 12ms/ 115VAC (full load);
Input Value:
Voltage Range: 90~132VAC; 180~264VDC (through switch) 240 ~ 370VDC (connected to 230VAC)
Frequency Range: 47 ~63Hz
Efficiency (typical value): 87.5%/ 89.5%
AC Current (typical value): 5A/ 115VAC 2.5A/ 230VAC
Inrush Current (typical value): 60A / 115VAC 60A / 230VAC
Leakage Current: <2mA240VAC
Protection:
Overload: 110~140% of rated output power; protection type: Hiccup mode, automatic recovery after the fault condition is eliminated
Surroundings:
Working Temperature: -20~+70
Working Humidity: 20~90%RH non-condensing
Storage Temperature and Humidity: -40~+85, 10~95%RH
Temperature Coefficient: ±0.03% (0 ~ 50)
Vibration: 10 ~ 500Hz, 5G 10 minutes/1 cycle, 60 minutes each along the X, Y, and Z axes.
Safety and E
