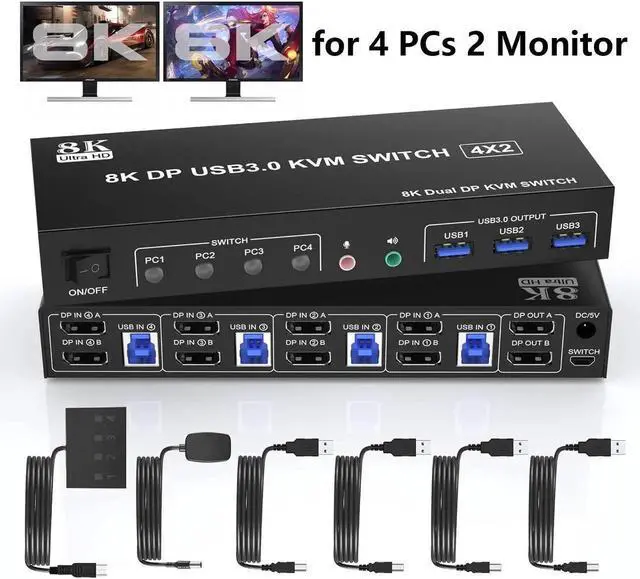

4 Port 8K Displayport USB 3.0 KVM Switch 2 Monitors for 4 Computers 2 Monitors, DP1.4 Display Port KVM Switch with Audio Microphone Output and 3 USB 3.0 Port, 8K DP Monitor Switch for 4 PCs 2 Monitors

8K DP1.4 Displayport KVM Switch (DP + DP + DP + DP)-4 computers share 2 monitors and 3 USB 3.0 devices.

This 8K DisplayPort KVM Switch 4-Port, you can easily control 4 signal sources at the same time, share the same keyboard and mouse, and share 2 monitors.

You can toggle and control any input device at any time with a button switch.

Advantages:

1. 4 computers/laptops share 3 USB 3.0 devices and 2 monitors, and with extra Audio Microphone output;
2. Supoort DP 1.4 and downward compatible.Dual monitors output support up to 8K@60Hz for extended,mirrored or spliced display (Depends on your computer's graphics card.);

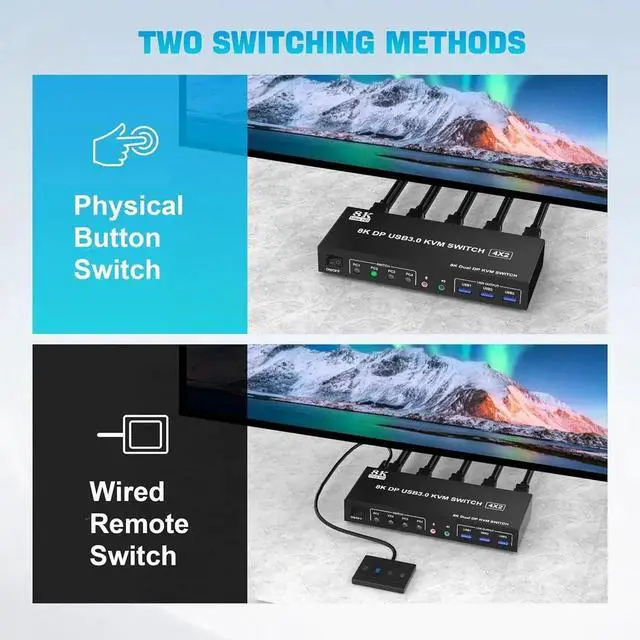

3. Switching mode: push-button switch and wired remote control;
4. Support for most major operating systems, including Windows, Linux, and Mac;
5. The ports that need to plug in DP/USB cables are all hidden behind the KVM, so the desktop doesn't get cluttered;
6. No complicated installation is required, and non-professionals can easily operate it.

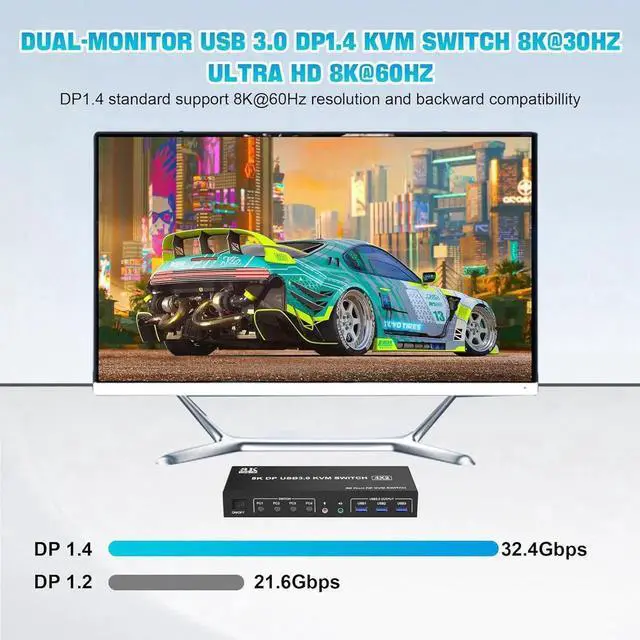

Support 8K/4K HD Resolution

1. This 4 port kvm switch dual monitor supporting high resolution max up to 8K@60Hz, and also supports 4K@60Hz or other lower resolution (Downward Compatible).

Note:

1. Only when both your computer Graphics card, monitor and DP cable support 8K@60Hz then you can get 8K@60Hz effect, so if you want the max resolution you have to check your devices first.

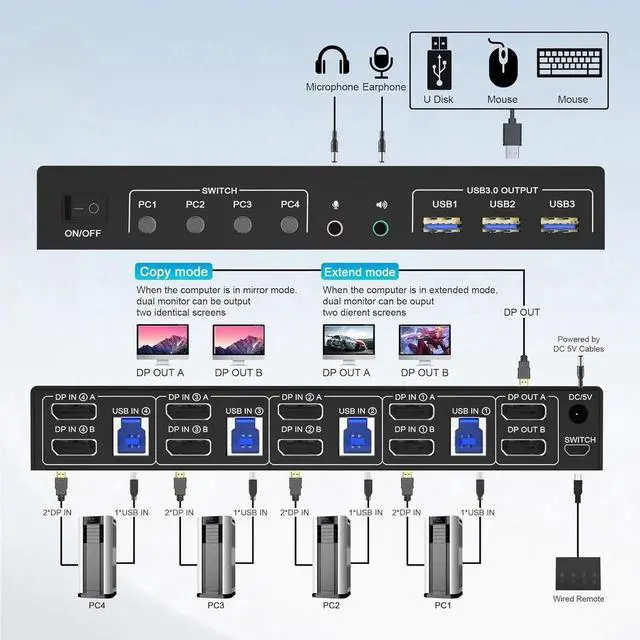

Connection steps:

1. 1. Insert the DC/5V adapter into the KVM ;
2. 2. Plug the DP cable into the KVM and monitor;(Output)
3. 3. Plug the DP cable and USB cable into the KVM and your computer/laptop (DP cables are not included)(Input)
4. DP IN1 A + DP IN1 B + USB IN1=PC1
5. DP IN2 A + DPIN2 B + USB IN2=PC2
6. DP IN3 A + DPIN3 B + USB IN2=PC3
7. DP IN4 A + DPIN4 B + USB IN2=PC4
8. 4. Insert the mouse and keyboard into the KVM switch
9. 5. If needed, you can connect a microphone and audio port

Warm Tips:

1. 1. Most of the reasons why only one video output works is because of incorrect connection. Please make sure each PC has(2 DP cables+1 USB cable) connect to the KVM.
2. 2. If the KVM switch does not work, you can turn off the switch on the panel and turn it on again after 2-3 seconds, and it will return to normal.
3. 3.Before purchasing this DP dual monitor KVM switch, please make sure that connecting your computer directly to the monitor can work normally,Otherwise, the KVM will not be available.
4. 4. Note: DP cables are not included

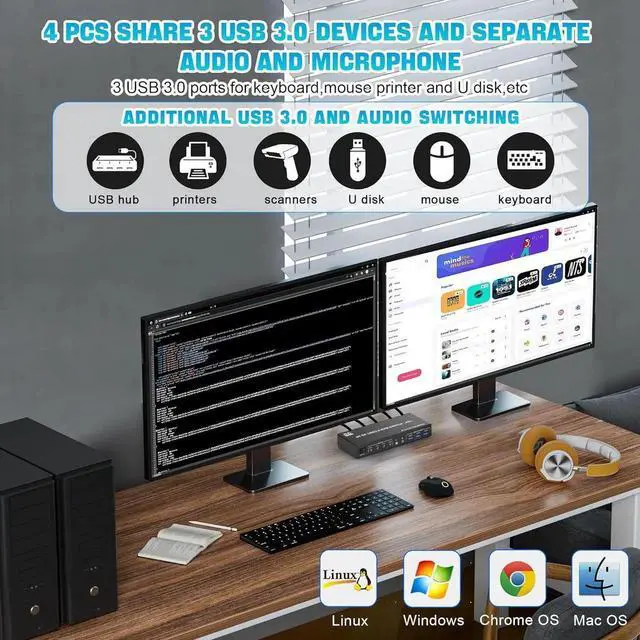

8K Displayport Switch with USB 3.0 Ports:

Dual monitor Displayport KVM switch with 3*USB 3.0 ports which can recognize keyboard,mouse,printer,scaner and other USB devices. Plug and play without any software needed. USB 3.0 offers data transfer speeds of up to 5Gbps, while USB 2.0 offers data transfer speeds of only 480Mbps.

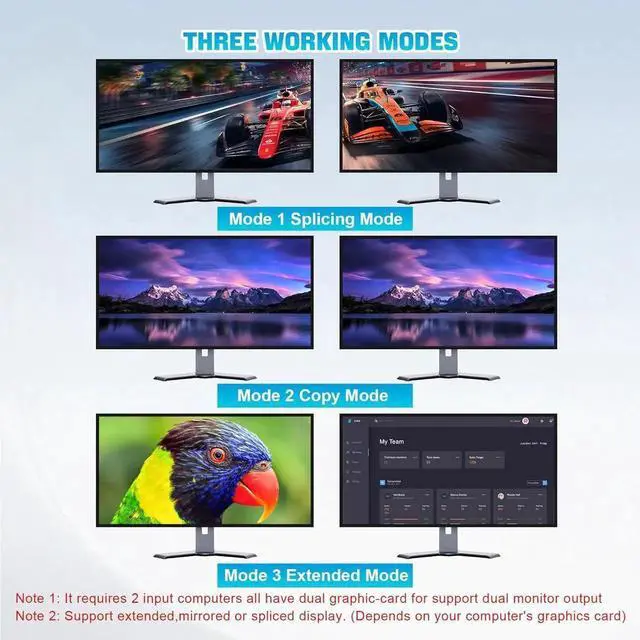

3 Display Modes

1. Extended Display
2. Mirrored Display
3. Spliced Display

If you are a designer or illustrator, you can use this mode to see the effect while working.

1. 1)Extended mode can output two different screens and mirror mode can output two identical screens. Note: If your graphics card has a splicing screen function, you can use the splicing screen mode.
2. 2) The requirement for this KVM to achieve a dual-screen display is that each PC you connect to has the capability to support a dual or multi-screen display. This has nothing to do with KVM.

8K DP 1.4 KVM Switch (DP + DP + DP + DP)-4 computers share 2 monitors and 3 USB 3.0 devices.

Features:

4 computers/laptops share 3 USB 3.0 devices and 2 monitors, and with extra Audio Microphone output;

Supoort DP 1.4 and downward compatible. Dual monitors output support up to 8K@60Hz for extended, mirrored or spliced display(Depends on your computer's graphics card. );

Switching mode: push-button switch and wired remote control;

Support for most major operating systems, including Windows, Linux, and Mac;

The ports that need to plug in DP/USB cables are all hidden behind the KVM, so the desktop doesn't get cluttered;

No complicated installation is required, and non-professionals can easily operate it.

Connection steps:

1. Insert the DC/5V adapter into the KVM;

2. Plug the DPcable into the KVM and monitor; (Output)

3. Plug the DP cable and USB cable into the KVM and your computer/laptop (DP cables are not included) (Input)

DP IN1 A + DP IN1 B + USB IN1=PC1

DP IN2 A + DPIN2 B + USB IN2=PC2

DP IN3 A + DPIN3 B + USB IN2=PC3

DP IN4 A + DPIN4 B + USB IN2=PC4

4. Insert the mouse and keyboard into the KVM switch

5. If needed, you can connect a microphone and audio port

Note: 1. Most of the reasons why only one video output works is because of incorrect connection. Please make sure each PC has(2 DP cables+1 USB cable) connect to the KVM. 2. If the KVM switch does not work, you can turn off the switch on the panel and turn it on again after 2-3 seconds, and it will return to normal. 3. Before purchasing this DP dual monitor KVM switch, please make sure that connecting your computer directly to the monitor can work normally, Otherwise, the KVM will not be available. 4.

Note: DP cables are not included
