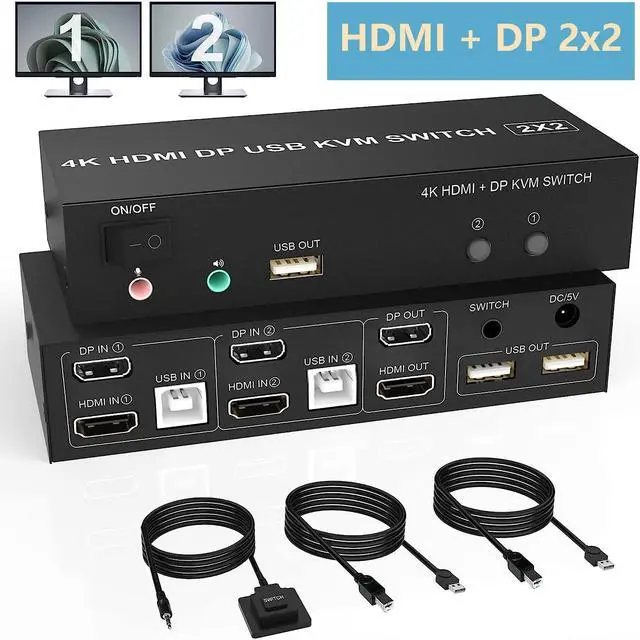

KVM Switch Dual monitor Display Port and HDMI
Features:
- No complicated installation is required, and non-professionals can easily operate it;

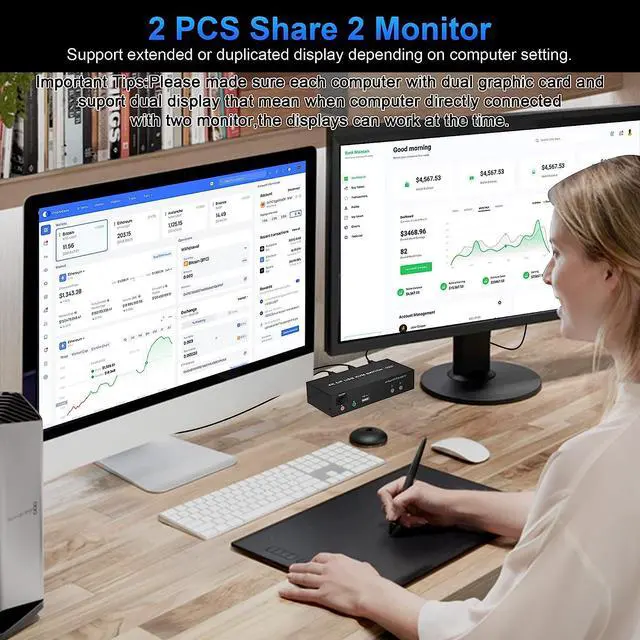

- Share one set of keyboard, mouse and dual monitors between 2 computers or laptops;

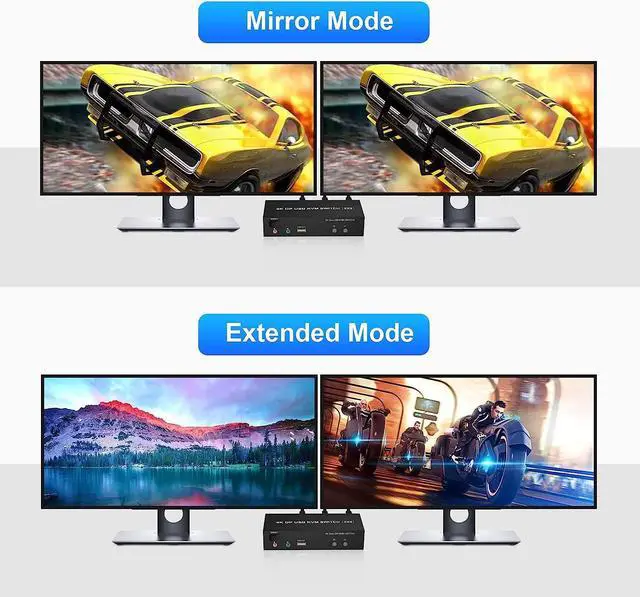

- Dual monitors output support up to 4K@60Hz for extended,mirrored or spliced display (Depends on your computer's graphics card.);
- Cross support major operation systems including Windows, Linux, Mac and more;

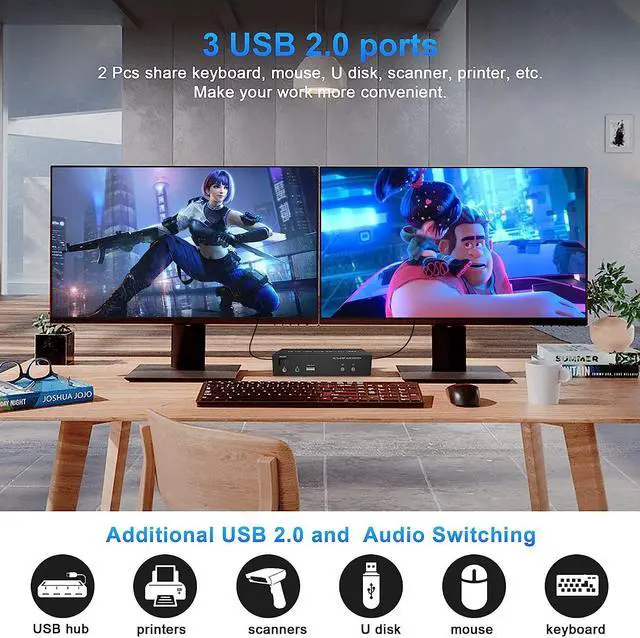

- With extra 3 USB 2.0 and Audio Microphone output;
- The ports that need to plug in HDMI/USB cables are all hidden behind the KVM, so the desktop doesn't get cluttered;

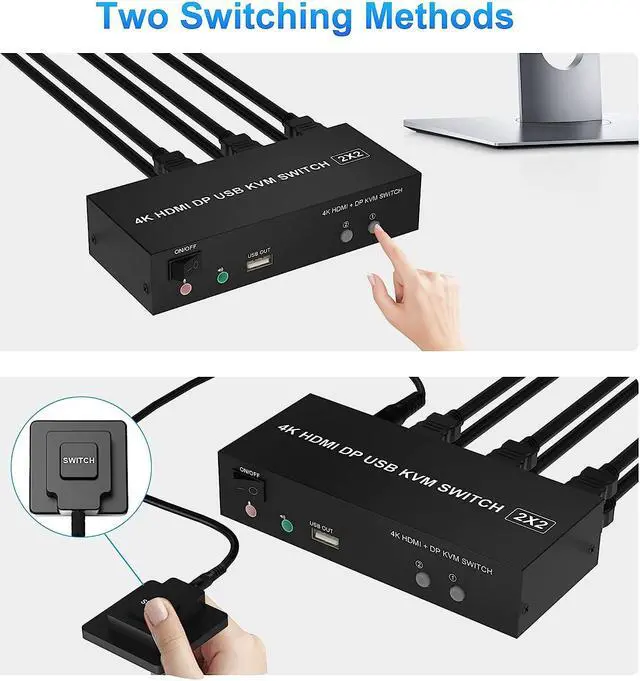

- Switching modes: Buttons on the front panel and wired remote.

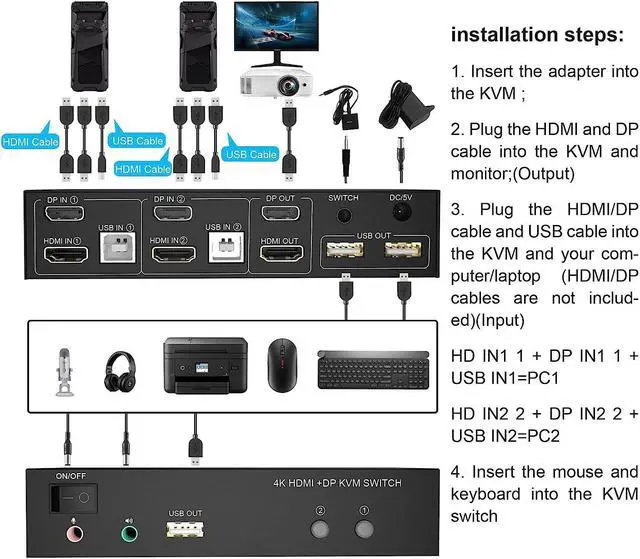

installation steps:
1. Insert the adapter into the KVM ;
2. Plug the Displayport cable and HDMI cable into the KVM switch and monitor;(Output)
3. Plug the Displayport cable, HDMI cable and USB cable into the KVM switch and your computer/laptop (HD-MI and DP cables are not included)(Input)
Please check whether HD-MI IN1, DP IN1 and USB IN1 are corresponding, and whether HDMI IN2, DP IN2 and USB IN2 are corresponding. Mixed insertion is not supported.
HDMI IN1 + DP IN1 + USB IN1=PC1
HDMI IN2 + DP IN2 + USB IN2=PC2
4. Insert the mouse and keyboard into the KVM switch
5. If needed, you can connect a microphone and audio port
Note:
1. Most of the reasons why only onevideo output works is because of incorrect connection. Please make sure eachcomputer have 1 HDMI /1 DP cables connect to the KVM.
2. If the KVM switch does not work, you can turn off the switch on the panel and turn it on again after 2-3 seconds, and it will return to normal.
