HDMI+2 Displayport KVM switch triple monitor is a good helper for office and home
Triple monitor KVM Switch Allows you to control 2 computers with just one set of wired or wireless keyboard mice, as well as sharing 4 USB 3.0 devices and 3 monitors.
The three monitor KVM switch has three independent circuit boards (A, B and C) that are suitable for 2 computers with 3 monitors (2 monitors or 1 monitor) and gives you more choices. This KVM switch offers you more choices.
KVM Switch for 2 Computer and 3 monitors supports the use of a variety of converters and docking stations, e.g. B. DP to HDMI, HDMI to DP with power supply, MINI DP to DP, USB C to DP/HDMI adapter and USB C docking stationPlease check the configuration of your computer before placing an order.
USB 3.0 Displayport KVM Switch Triple Monitor Functions

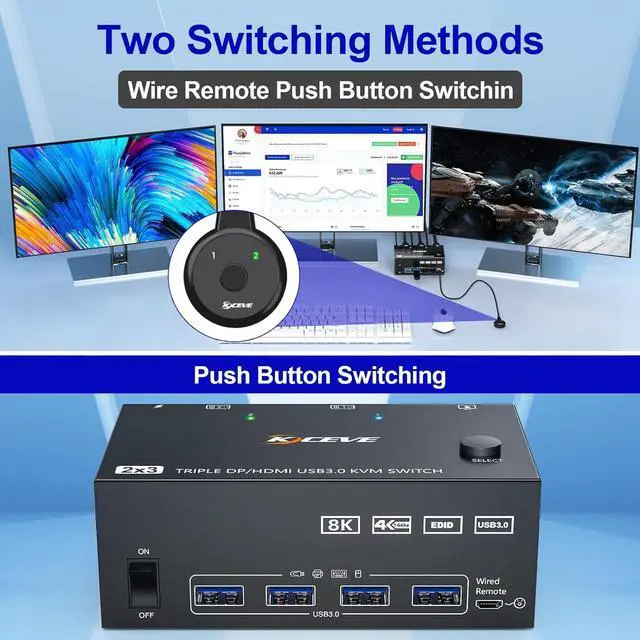

- Switching modes: Physical button and cable remote control
- High compatibility, automatic adjustment of source and display device
- Supports ultra-fast USB 3.0 data transfer which is ten times higher than USB 2.0, data transfer speeds of up to 5Gbps
- Supports most popular operating systems, including Windows, Linux and MacHDMI 2.1 compatible inputs and outputs
- Three display modes: extended mode, mirror mode and splice modus
- Displayport 1.4 compatible inputs and outputs
- Built-in automatic adjustment system ensures a smooth, clear and stable image
- Easy to install, plug and play

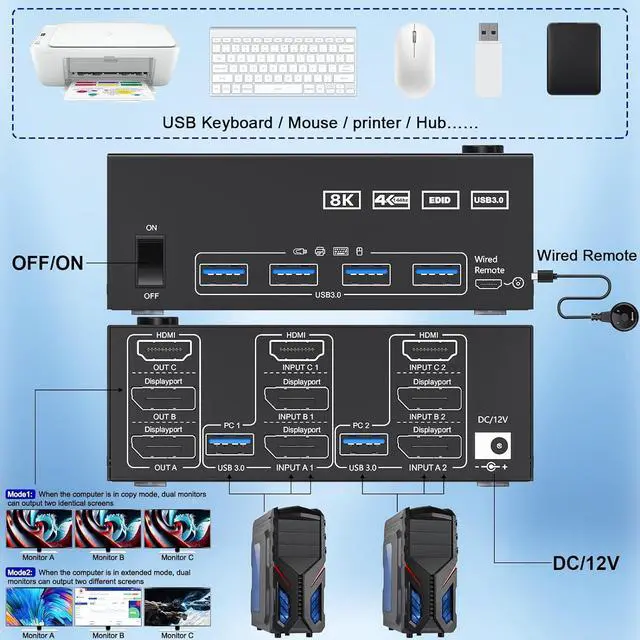

Connection steps:
Step 1. Connect 2*DP cables+1*HDMI+1*USB-A cable between PC 1 and KVM (INPUT A1, INPUT B1, INPUT C1, USB 3.0).
Step 2. Connect 2*DP cables+1*HDMI+1*USB-A cable between PC 2 and KVM (INPUT A2, INPUT B2, INPUT C2, USB 3.0).
Step 3. Connect 2*DP+1*HDMI cables between the KVM (OUT A, OUT B, OUT C) and your 3 monitors.
Step 4. Connect the DC12V power adapter.
Step 5. Insert your USB devices(keyboard mouse and U disk) into the USB port on the KVM.
Step 6. Plug the wired remote control into the "SELECT" port to switch between PC1 and PC2 remotely.
Suitable for multiple systems
Driver-free for Windows 11/10/8/7/Vista/XP and Mac OS, Linux.
8k@60Hz/4k@144Hz UHD resolution
Supports resolutions up to 8K@60Hz/4K@60Hz/2K@60Hz and is backward compatible with lower resolutions.
4-Port USB 3.0 with data transfer speeds of up to 5Gbps.
USB 3.0 KVM switches feature 4 USB 3.0 ports for sharing USB devices such as mice, keyboards, scanners, printers, U hard drives and other USB devices
This HDMI+2 Displayport Triple Monitor KVM Switch supports 8k@60Hz/4k@144Hz, which our engineers have tested many times.
1. The exact resolution you get depends on your computer, the version and length of the HDMI cable, the version and length of the DP cable, and whether your screen supports 8K. You can only get 8K resolution if everyone supports 8K.
2. Please check if your hardware devices support 8K. It is recommended to use an 8K HDMI 2.1 cable and DP1.4 cable, the length of which should not exceed 1.5 meters, as well as an 8K monitor.
3. Plug and play, without drive, widely used in many occasions, such as office, conference, teaching, performance, live broadcast, home theater, etc.
4. Note: Only if both the graphics card and the monitor of your computer support 8k@60Hz/4K@144Hz, you can achieve the 8k@60Hz/4K@144Hz effect. So if you want the maximum resolution, you need to check your devices first.

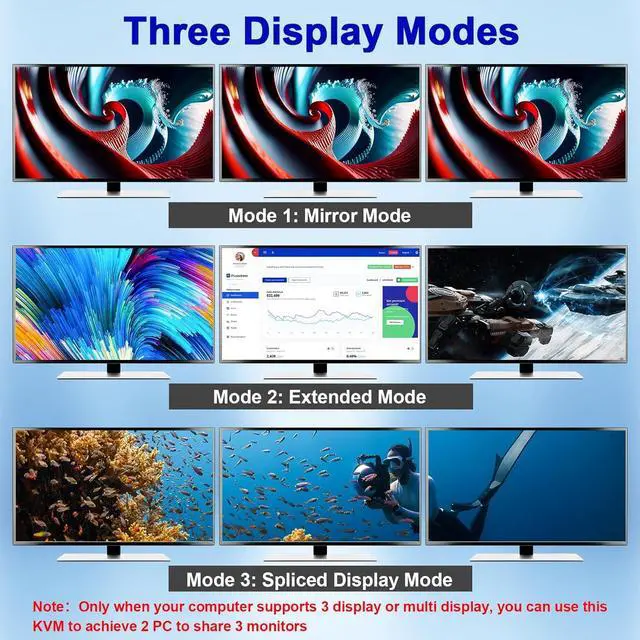

HDMI Displayport KVM Switch Three Display Modes
Supports advanced mode, mirror mode and splicing mode

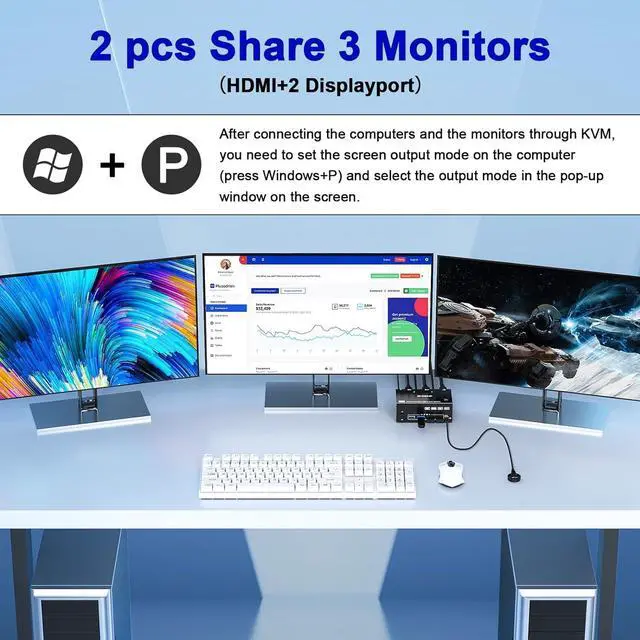

After connecting the computers and monitors via KVM, you need to set the screen output mode on the computer (press Windows+P) and select the output mode in the pop-up window on the screen. Otherwise, only one of the two connected monitors has a picture. Only if your computer supports 3 displays or multi displays, you can use this KVM to achieve 2 PCs to share 3 monitors.
Please use the 12 V power supply (included) to power this KVM switch for DisplayPort and HDMI triple monitors.

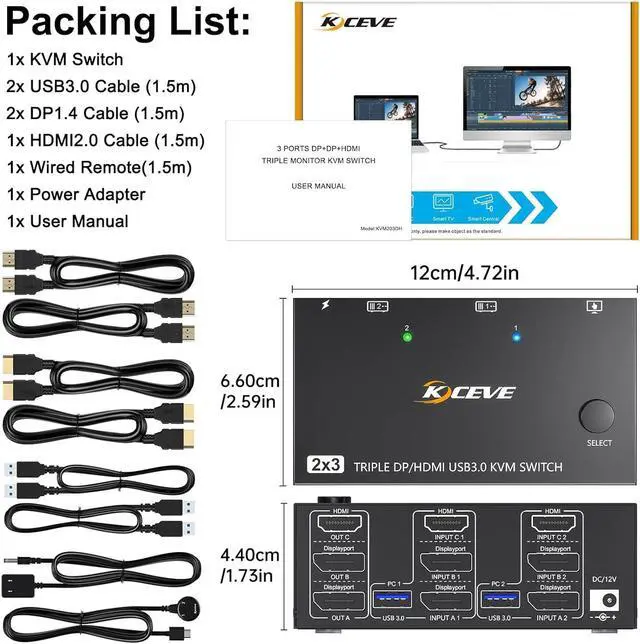

Package included:
- 1x Triple Monitor KVM Switch,
- 2x DP1.4 Cable,
- 1x HDMI2.1 Cable,
- 2x USB 3.0 Cable,
- 1x Power Adapter,
- 1x Wired Remote,
- 1x User's Manual.
12 months warranty, any questions about the 3 monitor KVM switch, please contact us, we provide complete after-sales (including technical support and replacement)
