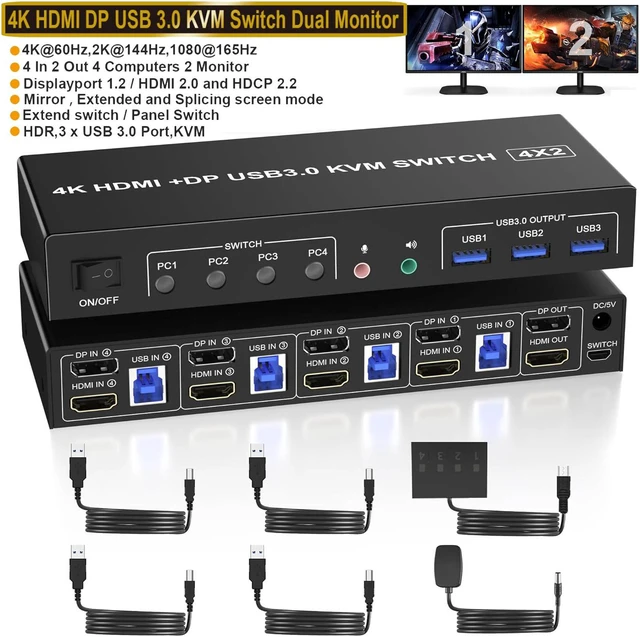

Dual Monitor 4 Port HDMI + DP USB 3.0 KVM Switch 4K@60Hz
Product Features:
- 4 computers/laptops share one set of keyboard, mouse and dual monitors, and more USB 3.0 ports;

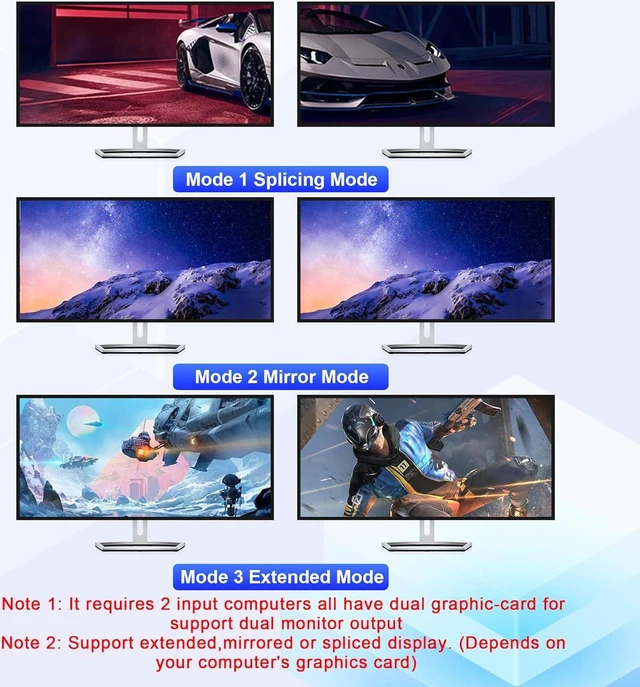

- Support maximum resolution up to 4K 60Hz YUV 4:4:4, HDCP 1.4, HDR 2.2; Dual monitors output support up to 4K@60Hz for extended and mirrored display;
- Compatible with Windows 11/10/7/2000/XP/Vista, Linux, UNIX, Ubuntu, Fedora, and other systems;
- Advanced switching modes: push button and wired remote;
- No complicated installation is required, and non-professionals can easily operate it;
- The ports that need to plug in HDMI/USB cables are all hidden behind the KVM, so the desktop doesn't get cluttered;
- Audio Microphone output.

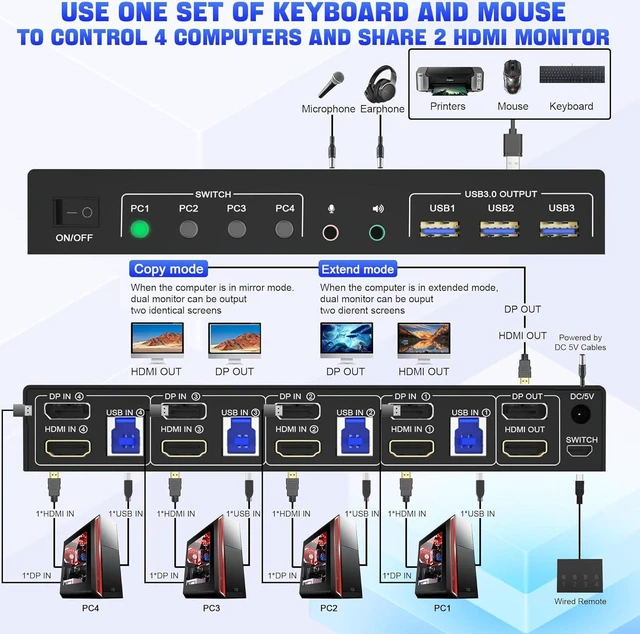

Connection steps:
- 1. Insert the DC/5V adapter into the KVM ;
- 2. Plug the DP/HDMI cable into the KVM and monitor;(Output)
- 3. Plug the DP/HDMI cable and USB cable into the KVM and your computer/laptop (DP cables are not included)(Input)
- DP IN1 + HDMI IN1 + USB IN1=PC1
- DP IN2 +HDMI IN2 + USB IN2=PC2
- DP IN3 + HDMI IN3 + USB IN3=PC3
- DP IN4+ HDMI IN4+ USB IN4=PC4
- 4. Insert the mouse and keyboard into the KVM switch
- 5. If needed, you can connect a microphone and audio port
Note:
- 1. Most of the reasons why only one video output works is because of incorrect connection. Please make sure each PC has(1 DP/HDMI cables+1 USB cable) connect to the KVM.
- 2. If the KVM switch does not work, you can turn off the switch on the panel and turn it on again after 2-3 seconds, and it will return to normal.
- 3.Before purchasing this DP/HDMI dual monitor KVM switch, please make sure that connecting your computer directly to the monitor can work normally,Otherwise, the KVM will not be available.
- 4. Note: DP/HDMI cables are not included

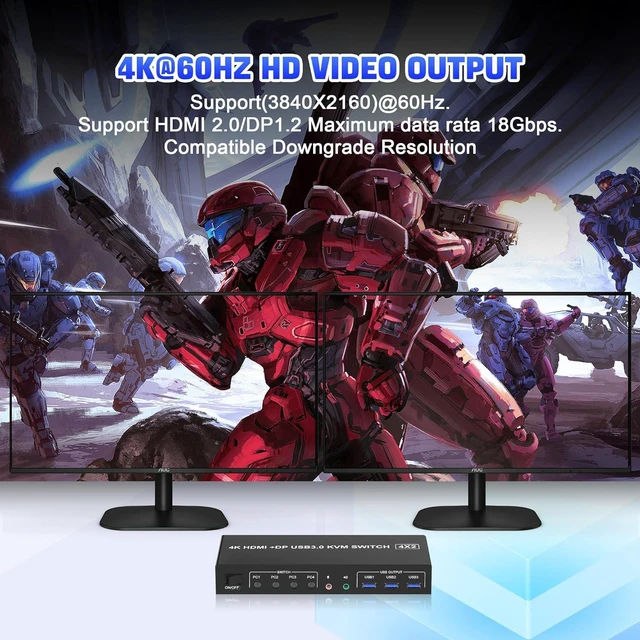

USB 3.0 Dual Monitor KVM Support 4K@60HZ
- Supports high resolution up to 3840*2160@60Hz and downwards.
- Note: Only when both your computer Graphics card and monitor support 4K@60Hz you can get the 4K@60Hz effect, so if you want the maximum resolution you have to check your devices first.
Supports separate audio and microphone output
- KVM Switch comes with a 3.5mm Audio Jack port with a DAC chip inside, which can be inserted into a 3-segment 3.5mm earpiece device, and a 3.5mm microphone interface, which can be inserted into a 3-segment microphone.

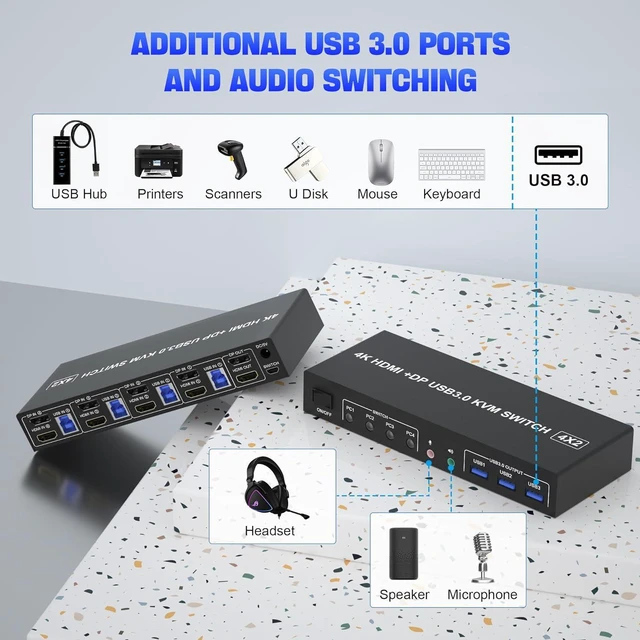

3 Port USB 3.0 with 5Gbps
- Supports 5Gbps data transfer speed , can transfer files in Seconds, Much faster than USB 2.0.
- 3 USB 3.0 ports, backward compatible with USB 2.0 and USB 1.1, share USB devices such as keyboard mouse scanner, printer, flash drive, etc.

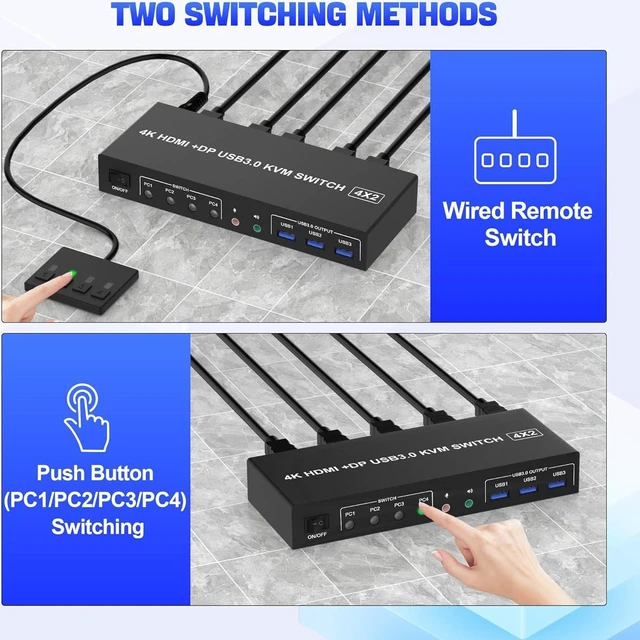

2 monitors 4 computers KVM Support 2 Switching Modes
- Quickly switch between the 4 computers with just one click of the switch button on the panel or use the wired remote controller (included in the package).
- Please note: This KVM does not support hotkey switching.
