KVM Switch HDMI, UHD 4K @30Hz, HDMI KVM Switch 2 Port with 4 USB 2.0, Support HDMI Switch for 2 Computers Share Keyboard Mouse Printer and one HD Monitor, with 2 HDMI and 2 USB Cables

1. Introduction

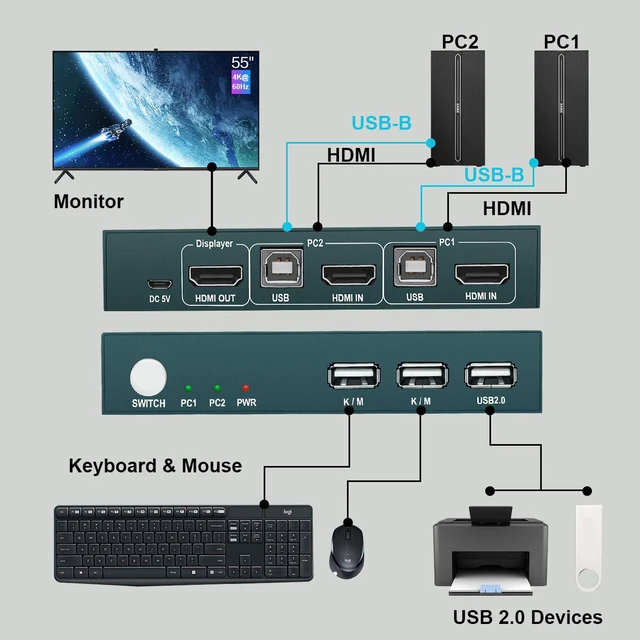

2x1HDMI KVM switch can implement free switching between 2 groups of HD audio and video source and USB interface. Adaptive EDID, it can adapt to a variety of complex application environments.


2. Features
(1) Video resolution max up to 3840*2160@30Hz;
(2) Compliance with HDMI 1.4 standard;
(3) Powered by USB, no need power adapter;
(4) USB 2.0 protocol;
(5) Adaptive EDID, able to adapt to a variety of complex application environment;
(6) High compatibility, can auto-match source and display device;
(7) Built-in automatic equalization system, the picture is smooth, clear and stable;
(8) Simple to install, plug and play;


3.

Specifications

:
(1) Maximum pixel clock: 340MHz
(2) Maximum data rate: 18Gbps

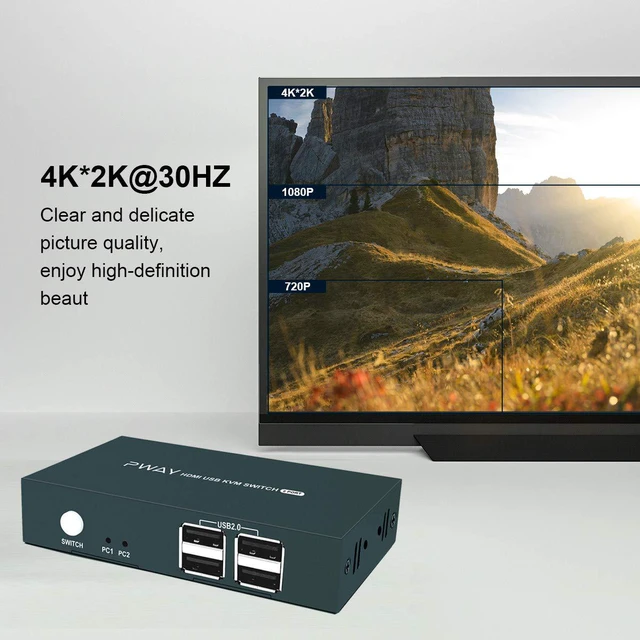

(3) Resolution range: Up to 3840*2160@30Hz, 1920*1080@30Hz
(4) Connector: HDMI- A
(5) Impedance: 100O;
(6) HDMI Cable Range: <5M (Resolution: 1920*1080@30Hz)

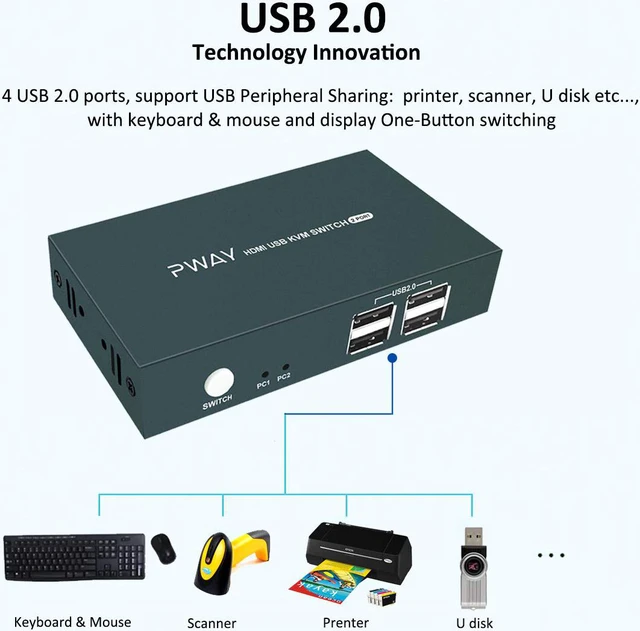

(7) USB: Interface protocol: USB 2.0 (4 pcs)
(8) USB PC input interface type: USB-B
(9) USB output interface type: USB-A


4. Other
(1) Power supply: Powered by USB
(2) Power dissipation: MAX 1.5W
(3) Temperature Operating: -5? ~ +70?
(4) Humidity Operating: 5% ~ 90%
(5) Dimension: 110*62*23mm

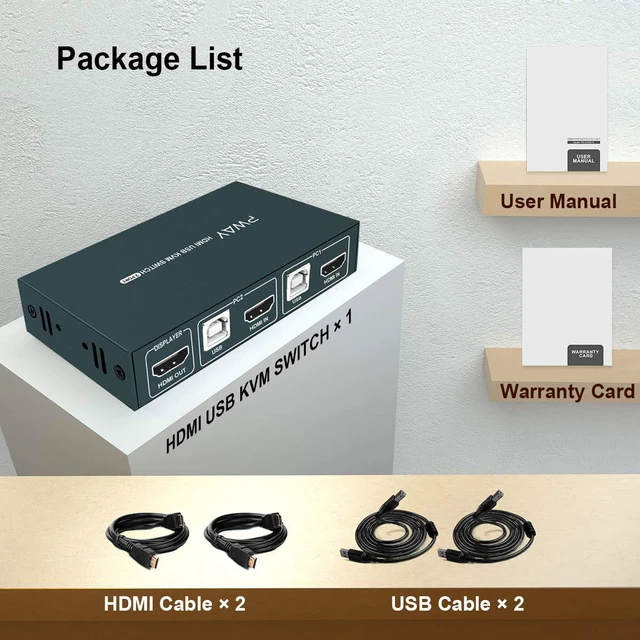

5. Packing List
(1) 1x HDMI KVM 2*1Switcher host
(2) 2x USB Cables
(3) 2x HDMI Cables
(4) 1x User manual
