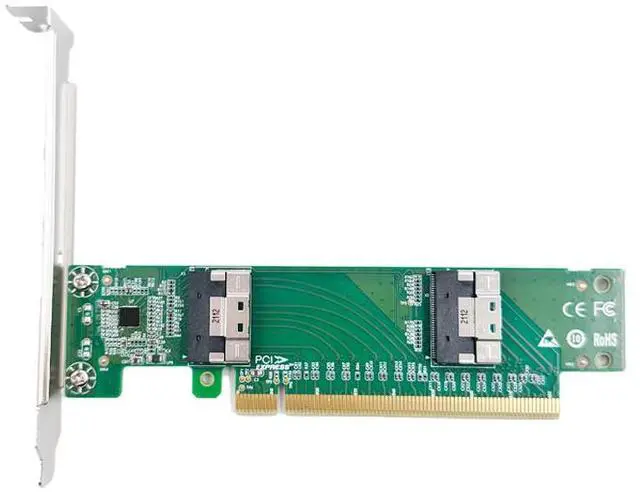

Main image of eShinreal PCIe 4.0 x16 to Two SlimSAS SFF-8654 8i Adapter

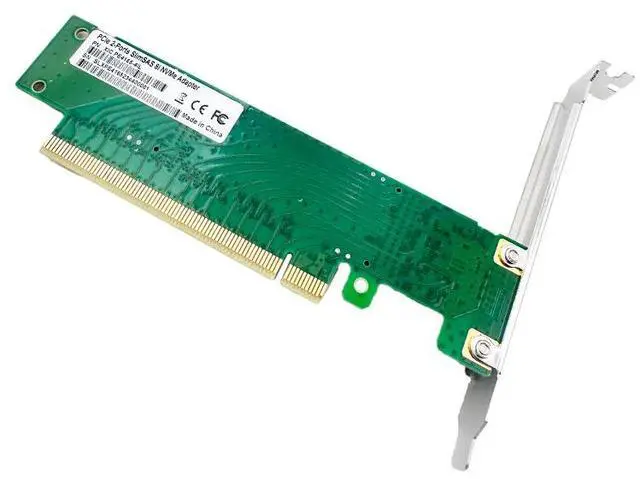

Alt view image 2 of 4 - eShinreal PCIe 4.0 x16 to Two SlimSAS SFF-8654 8i Adapter

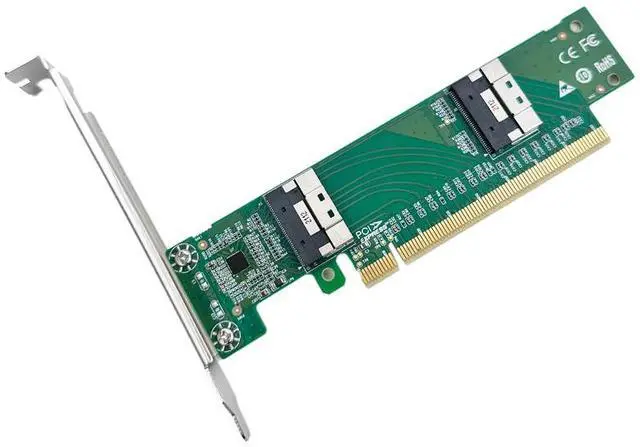

Alt view image 3 of 4 - eShinreal PCIe 4.0 x16 to Two SlimSAS SFF-8654 8i Adapter

Alt view image 4 of 4 - eShinreal PCIe 4.0 x16 to Two SlimSAS SFF-8654 8i Adapter

Shop All Eshinreal Products | Visit Dacnel PCIe Card Store

eShinreal PCIe 4.0 x16 to Two SlimSAS SFF-8654 8i Adapter

Support up to 4 PCIe devices or NVMe SSDs
Directly connected to U.2 NVMe SSD by SlimSAS 8i to SFF-8639 cable
Support bifurcated in quad x4 data link width configuration(CPU and BIOS both support)
Support bifurcated in two x8 data link width configuration (CPU and BIOS both support)
Built in MCIO 8i connector 2 sets, pin-out defined by SFF-9402

Overview

Specs

Reviews

XIC PE4165-4IL is a high performance, low dielectric loss factor interface conversion card. It connects NVMe SSD or PCIe connectors via SlimSAS (SFF-8654) 74pin connector, supports up to 4 PCIe devices or NVMe SSDs. The bandwidth of the card is the bandwidth that the PCIe slot of the motherboard can support.

The Motherboard with CPU and BIOS needs to support bifurcation to ensure PCIe x16 link width to bifurcate two x8 link width or four x4 link width for NVMe SSD, Otherwise this card can only support PCIe link width of one device.
