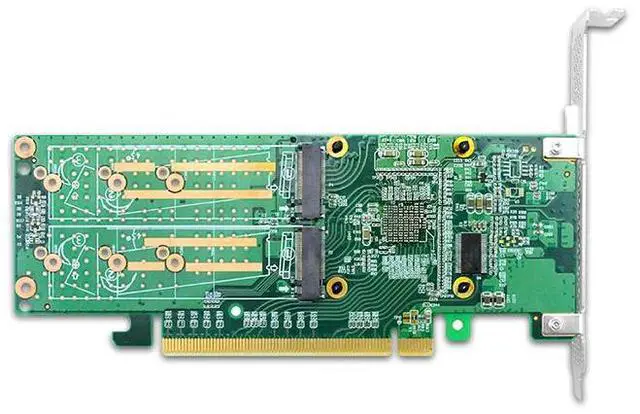

eShinreal PCI Express x16 to Quad M.2 NVMe SSD Switch Adapter-PLX8747 Low profile

This professional-grade low-profile adapter transforms a single PCIe 3.0 x16 slot into four independent M. 2 NVMe SSD ports, delivering enterprise-class storage expansion for space-constrained systems. Designed specifically for 1U rack servers and compact workstations, it provides an optimal balance of performance and density without requiring motherboard bifurcation support.

Key Features:
1. Space-Optimized Design
Low-profile form factor (64mm height) with included half-height bracket
Additional full-height bracket for flexible deployment
Compact PCB layout optimized for 1U/2U server chassis

2. High-Performance Storage Expansion
4x M. 2 PCIe 3.0 x4 slots (2280/22110 compatible)
Up to 16GB/s aggregate bandwidth
PLX switch chip enables true non-blocking performance

3. Advanced Thermal Management

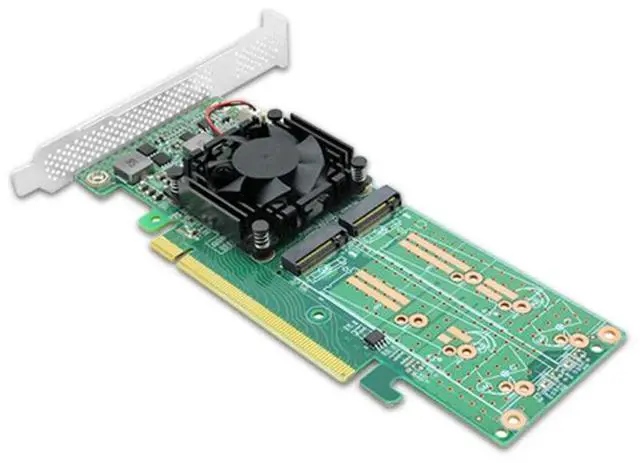

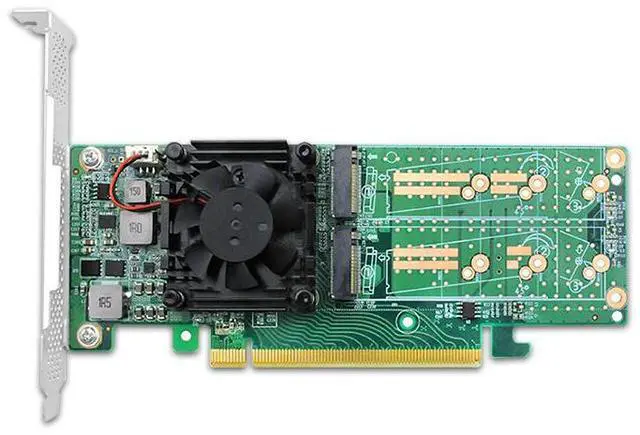

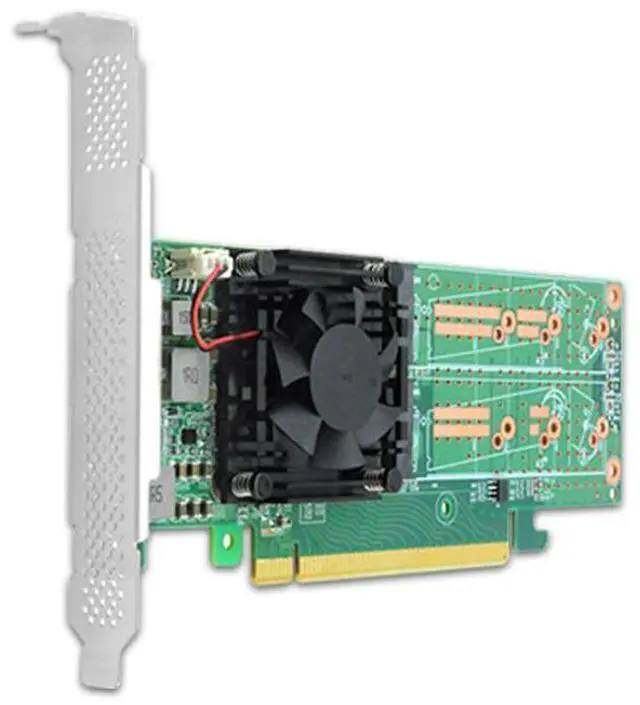

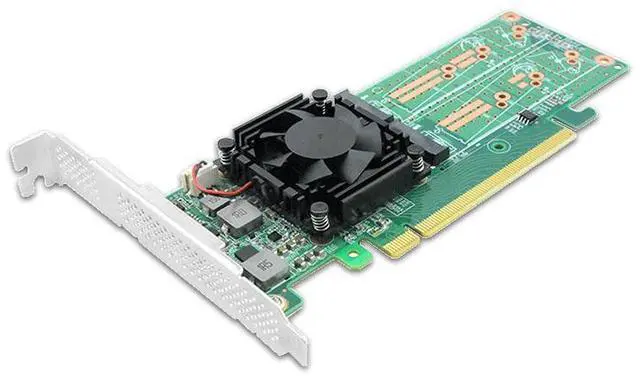

Precision-engineered aluminum heatsink array
High-conductivity thermal pads for each M. 2 slot
Optional 4-pin PWM fan support (fan not included)

4. Enterprise-Grade Reliability
Reinforced PCIe x16 edge connector
Stable power delivery circuitry
Over-current and thermal protection
