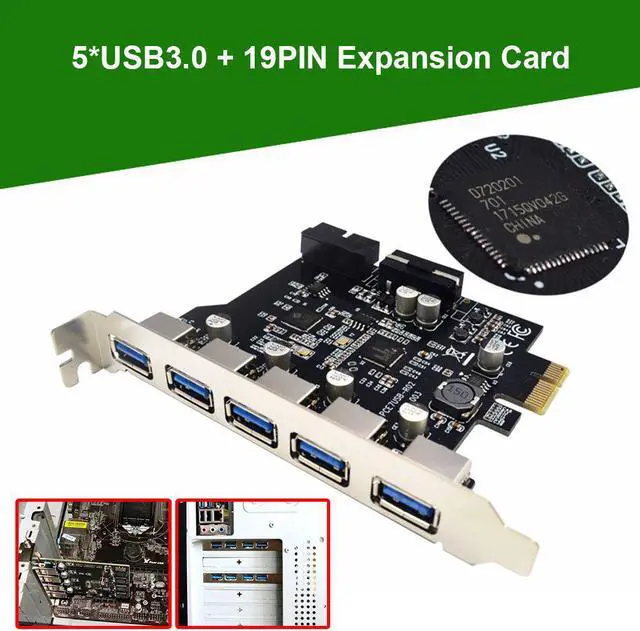

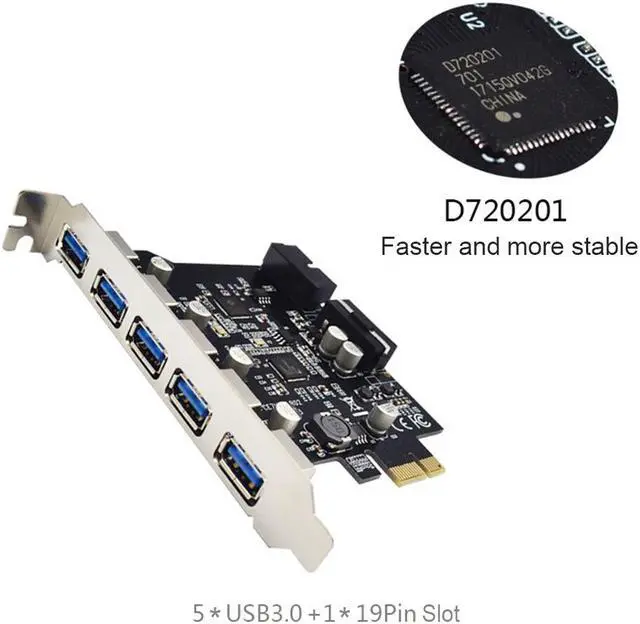

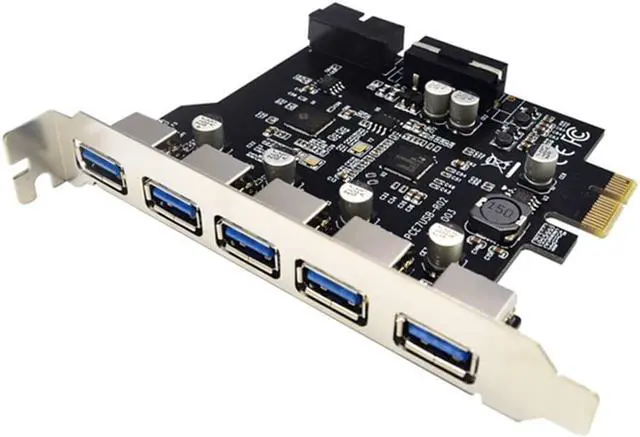

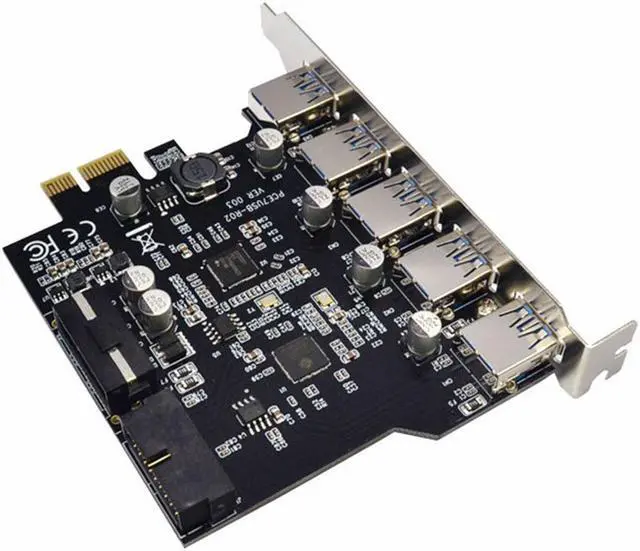

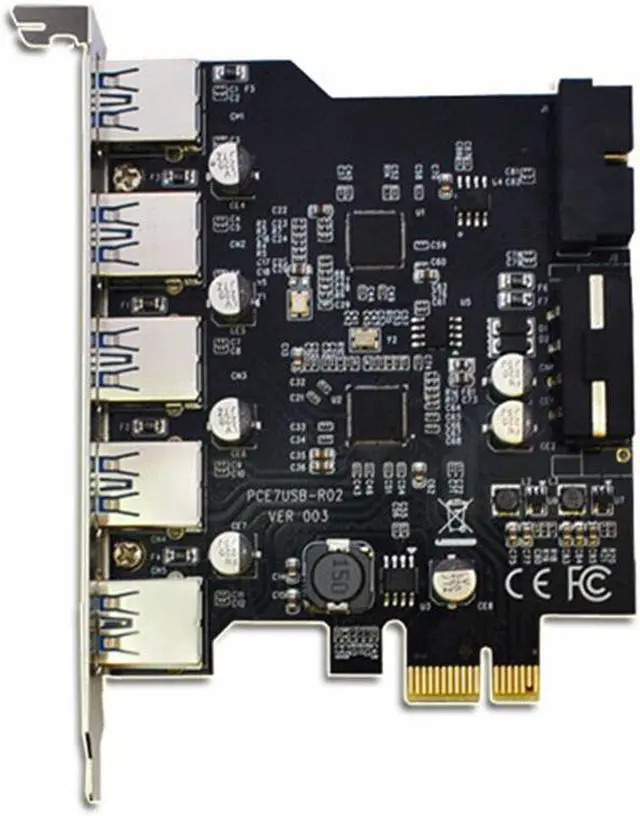

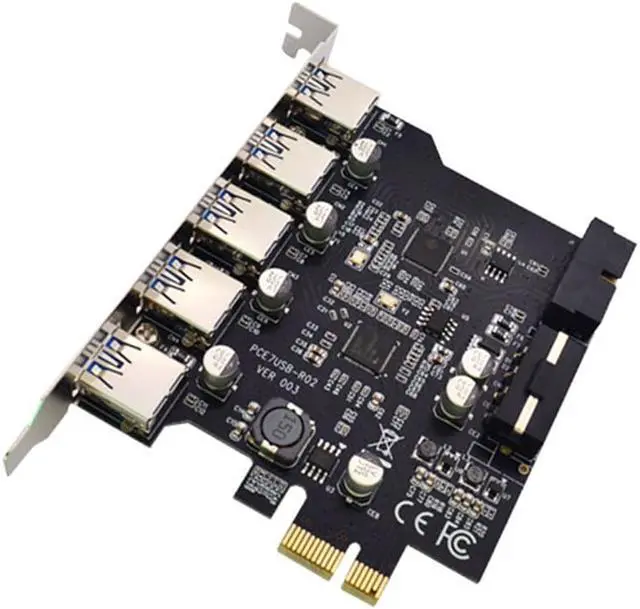

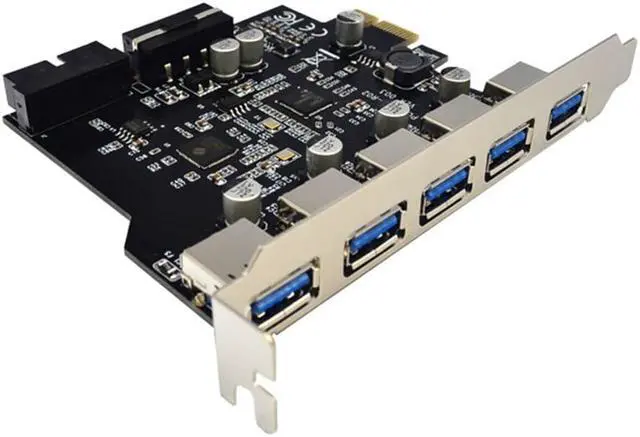

Weastlinks PCI-E to 5 Port USB 3.0 Extension Card With 19 Pin Front Nec Third Generation Main Control D720201 Dual Chip
- Using USB3.0 NEC main control chip +GL main control dual core performance is better.
- It can work without plugging in an external large 4PIN interface when in use.
- Highest Transmission Rate: Up To 5Gbps(which is much higher than the 480Mb/s of USB2.0, up to 10 times.).
- Backward Compatible With USB2.0, USB1.1, USB1.0.
- Support USB Hot Plug Function,Support Interface: PCI-E 1X 4X 8X 16X.
+
+
Overview
Specs
Reviews
Features:
Using USB 3.0 NEC main control chip +GL main control dual core performance is better.
The only expansion card on the market that can support for LINUX system.
It can work without plugging in an external large 4PIN interface when in use.
The expansion card uses 7 high-performance solid capacitors to greatly ensure the stability of USB power supply.
Because this card has 5 rear ports, which is too high, it does not support small chassis.
Direct cooperation with the original factory can provide strong after-sales technical support, firmware and driver update at the earliest.
Uses environmentally friendly, neat and beautiful layout of components, full of materials! The firmware can be updated at any time and can be directly upgraded online.
Specification:
Main Control: Renesas UPD720201+GL35XX
Compliant With PCI-Express 2.0
Compliant With USB 3.0 SuperSpeed 1.0
Comply With xHCI 1.0
Highest Transmission Rate: Up To 5Gbps(which is much higher than the 480Mb/s of USB 2.0, up to 10 times. )
Backward Compatible With USB 2.0, USB 1.1, USB 1.0.
Transmission Rate: 5000/480/12/ 1.5M bps
USB Power Output: Up To 5V 2A (Increased Current Type)
Built-In Large 4 Pin Enhanced Power-On Interface
Support USB Hot Plug Function
Support Interface: PCI-E 1X 4X 8X 16X
Support System: for WinXP/Vista/Win7/Win8/Win10 32bit/64bit
Package included:
1 x USB 3.0 Expansion Card
Using USB 3.0 NEC main control chip +GL main control dual core performance is better.
The only expansion card on the market that can support for LINUX system.
It can work without plugging in an external large 4PIN interface when in use.
The expansion card uses 7 high-performance solid capacitors to greatly ensure the stability of USB power supply.
Because this card has 5 rear ports, which is too high, it does not support small chassis.
Direct cooperation with the original factory can provide strong after-sales technical support, firmware and driver update at the earliest.
Uses environmentally friendly, neat and beautiful layout of components, full of materials! The firmware can be updated at any time and can be directly upgraded online.
Specification:
Main Control: Renesas UPD720201+GL35XX
Compliant With PCI-Express 2.0
Compliant With USB 3.0 SuperSpeed 1.0
Comply With xHCI 1.0
Highest Transmission Rate: Up To 5Gbps(which is much higher than the 480Mb/s of USB 2.0, up to 10 times. )
Backward Compatible With USB 2.0, USB 1.1, USB 1.0.
Transmission Rate: 5000/480/12/ 1.5M bps
USB Power Output: Up To 5V 2A (Increased Current Type)
Built-In Large 4 Pin Enhanced Power-On Interface
Support USB Hot Plug Function
Support Interface: PCI-E 1X 4X 8X 16X
Support System: for WinXP/Vista/Win7/Win8/Win10 32bit/64bit
Package included:
1 x USB 3.0 Expansion Card
