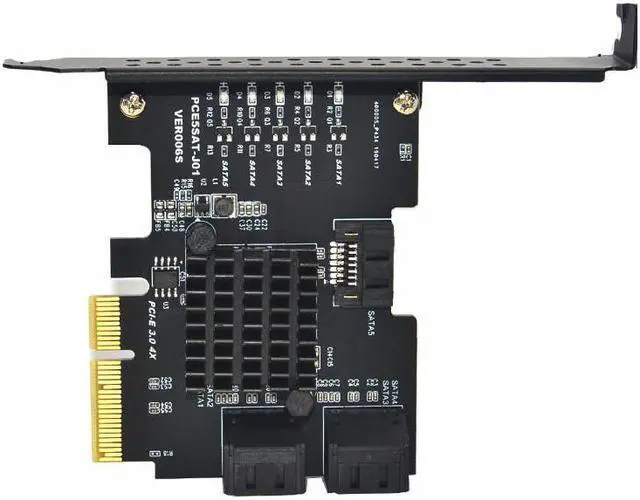

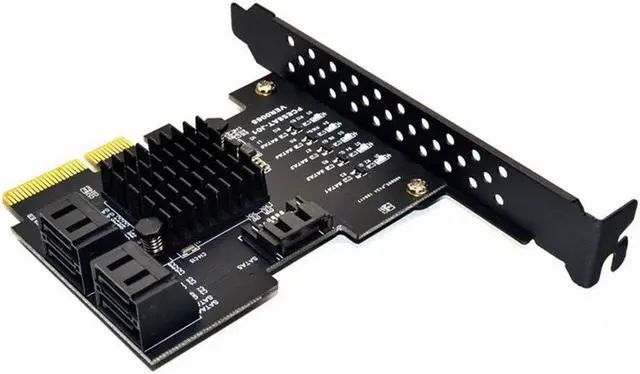

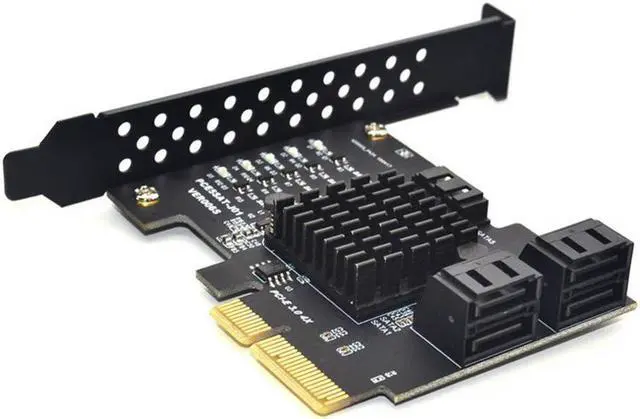

Plugadget Pci-E Pci Express 3.0 Gen3 X4 To 5 SATA III Card PCIE to SATA3.0 Expansion Card 5 Ports for IPFS 6G Transfer Speed JMS585
- Supports FIS based on port multiplier switch or command switching.
- Supports hot swap and hot swap.
- Compatible with SATA6G, 3G and 1.5G hard drives.
- Bus interface: PCI-Express x2 GEN3 slot (actually PCI-E X2 signal, interface is X4)
- Expansion interface: 5 SATA3.0 interfaces
- System Requirements: One PCI Express X4 slot is available, supporting both PCI-E X8 X16
- Operating system: Windows10/8/7 (32/64 bit) / Vista (32/64 bit) / XP/2003/2008/linux
+
+
Overview
Specs
Reviews
Bus Type: PCI
Express Card Type: Standard Profile ( Low Profile bracket optional )
Chipset ID: JMicron JMS585
Industry Standards: Serial ATA Specification 3.0 PCI Express Base Specification Rev. 2.0 AHCI & IDE &FIS Compliant Support Native Command Queuing (NCQ) Interface SATA III Port Style Integrated on Card
Ports 5 Performance: Maximum
Data Transfer Rate: 6 Gbps
Type and Rate: SATA III - 6
Gbit/s RAID: NO
Connector (s): Connector Type (s) 1 - PCI Express x1 Male Internal Ports 4 - SATA (7 pin; Data) Plug Software OS Compatibility
Windows 10 (32/64), 8 / 8.1 (32/64), 7 (32/64), Linux Special Notes /
Requirements Note: The maximum throughput of this card is limited by the bus interface. PCI Express Gen 1.0 max throughput is 2.5G bps. PCI Express Gen 2.0 max throughput is 5Gbps.
System and Cable Requirements: PCI Express enabled computer or server with an available PCI Express x4 slot or higher ( x8, x16) Package content Included in Package1 - 5 Port PCI Express SATA III Card 1 - Driver CD
Express Card Type: Standard Profile ( Low Profile bracket optional )
Chipset ID: JMicron JMS585
Industry Standards: Serial ATA Specification 3.0 PCI Express Base Specification Rev. 2.0 AHCI & IDE &FIS Compliant Support Native Command Queuing (NCQ) Interface SATA III Port Style Integrated on Card
Ports 5 Performance: Maximum
Data Transfer Rate: 6 Gbps
Type and Rate: SATA III - 6
Gbit/s RAID: NO
Connector (s): Connector Type (s) 1 - PCI Express x1 Male Internal Ports 4 - SATA (7 pin; Data) Plug Software OS Compatibility
Windows 10 (32/64), 8 / 8.1 (32/64), 7 (32/64), Linux Special Notes /
Requirements Note: The maximum throughput of this card is limited by the bus interface. PCI Express Gen 1.0 max throughput is 2.5G bps. PCI Express Gen 2.0 max throughput is 5Gbps.
System and Cable Requirements: PCI Express enabled computer or server with an available PCI Express x4 slot or higher ( x8, x16) Package content Included in Package1 - 5 Port PCI Express SATA III Card 1 - Driver CD
