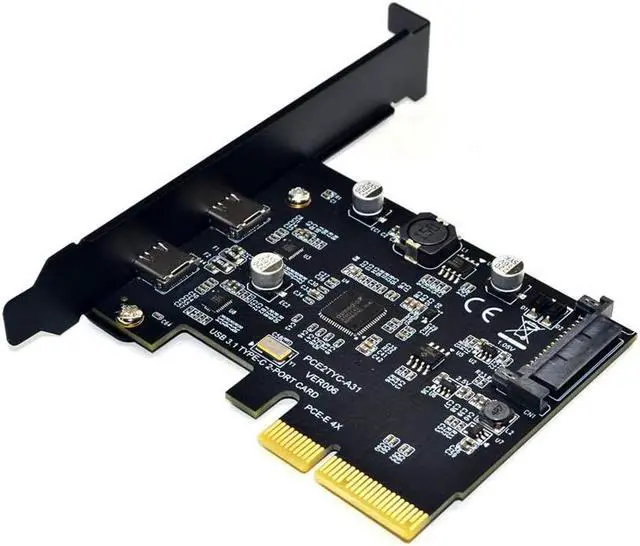

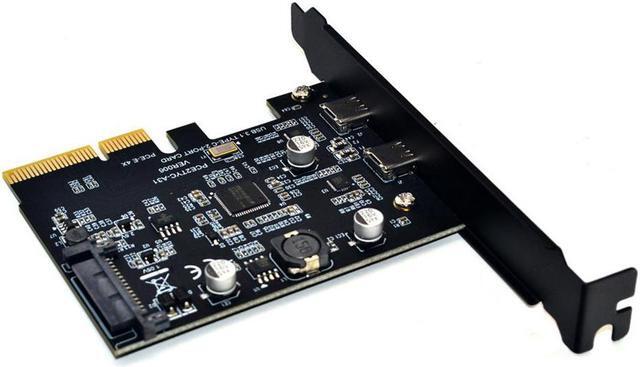

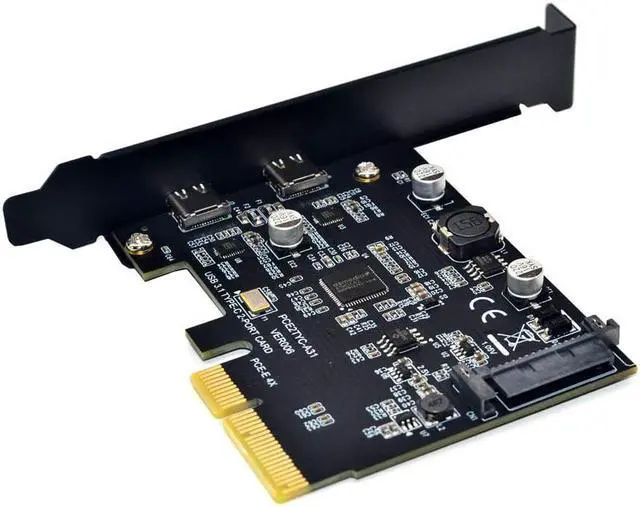

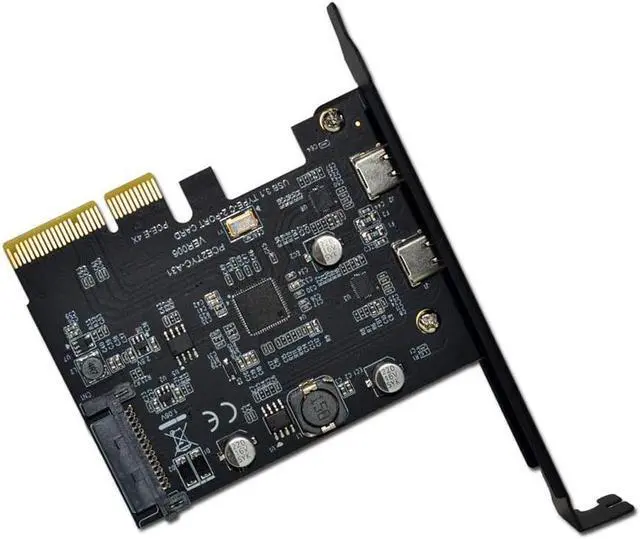

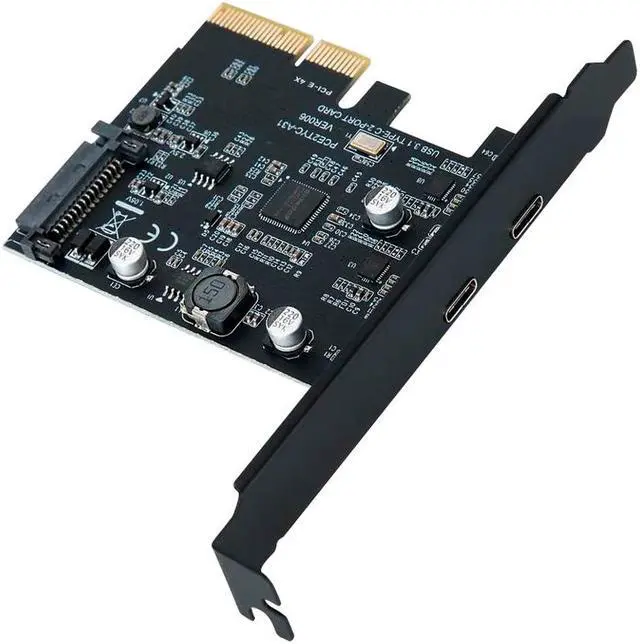

    USB C PCIe Card,PCI-Express 4X to Type C USB 3.2 Gen 2 (10 Gbps) 2-Ports Expansion Card with Asmedia Chipset ASM3142 (Dual Type C) for Windows 7/8/10/Linux/MAC OS - Full & Low Profile Slot Bracket

    Limited time offer, ends 07/30 By EN Labs Marketplace

    (3) Write a Review
    Lowest Price
    in 30 Days
    • PCI-E 4X to 2 Ports Type-C add on card
    • Superspeed USB 3.1 Gen2 output, Supports transfer rates of up to 10Gbps
    • Equipped with SATA 15PIN power supply backup interface
    • Compatible with PCIe x4, PCIe x8, PCIe x16,But does not support PCI-E 1X slot
    • Equipped SATA 15PIN power supply backup interface
    • Stable and reliable ASMEDIA ASM3142 Chipset
    • Full-profile and Low-profile PCI Slot Brackets are included
    +
    +
    Overview
    Specs
    Reviews (3)
    Features: Plug & play and hot swapping capability. Two USB 3.1 Type-C female connectors available. Stable and reliable ASMEDIA Chipset ASM3142. Bus-powered mode and no external power required for most of peripherals. Low-profile bracket available for small computer & server case, like 1U & 2U.
    Specifications: PCI-E 4X connector fits PCI-E 4X, 8X or 16X slot. Supports 10Gbps PCI-E bus with full duplex channel. Support Windows 7 / 8 /10 & Linux Kernal. Support 5V Max 2A power output to each USB 3.1 device Built-in over current protection and short circuit protection on each USB port Support SuperSpeed+ (10 Gbps), SuperSpeed (5 Gbps), HighSpeed (480 Mbps), and
    FullSpeed (12 Mbps) (Note: The actual transmission speed is limited by the setting of the device connected. ) Support USB 3.1 devices, backwards compatible with USB 3.0, 2.0 Compliant with PCI-Express specification revision 2.0 Support PCIe 2.0, or PCIe 3.0 motherboard, Compliant with PCI Express Base 3.0 Specification, Compliant with Universal Serial Bus 3.1 Specification.
    Package Includes: 1 x PCI-E 4x Express to USB 3.1 Type C Dual Port Expansion Card 1x Low profile bracket 1x CD driver Please note It's PCI-E 4X card and does not support PCI-E 1X slot. Win7 needs to install the driver through the CD to run
    image for this item
    Features
    • 2 Ports USB-C PCI express I/O Card offers a simple solution by adding two USB-C ports to your computer
    • Superspeed USB 3.2 supports transfer rates of up to 10Gbps - The actual transmission speed is limited by the setting of the device connected.
    • Enjoy copying videos, music, photos, data files between USB devices and the computer at blazing fast speeds
    • Works with your existing USB 3.0 (5Gbps) and USB 2.0 (480Mbps) devices, for cost-effective backward compatibility
    • Optional SATA power connector provides up to 900mA per USB port
    • PCIe x4 interface compliant with PCI Express Base Specification Revision 3.0
    • Supports Windows XP/Vista/Server/7/8/10, Linux and MAC OS
    • Please note that it is PCI-E X4 card and does not support PCI-E X1 slot.
    image for this item
    • 2 Ports USB-C expansion card
    • Superspeed USB 3.2 10Gbps data transfer speed
    • Compatible with PCIe x4, PCIe x8, PCIe x16,But does not support PCI-E 1X slot



    image for this item
    • ASMedia ASM3142 controllers to provide dedicated 10Gbps transfer bandwidth for each port through PCIe 3.0 x4 host interface.
    image for this item
    • Optional SATA power connector provides up to 900mA per USB port
    Specification
    Type Dual USB-C PCIe Card
    PCIe Specification PCIe 3.0
    PCIe Slot PCIe x4,x8,x16 slot
    Data transfer Speed USB 3.2 10Gbps
    Power by SATA 15Pin
    Charging support 5V900mA each USB-C port
    Chipset ASMEDIA ASM3142
    OS requirement Windows 7 / 8 /10 & Linux,Mac OS
    Mounting Full-profile & Low-Profile PCI slot brackets
