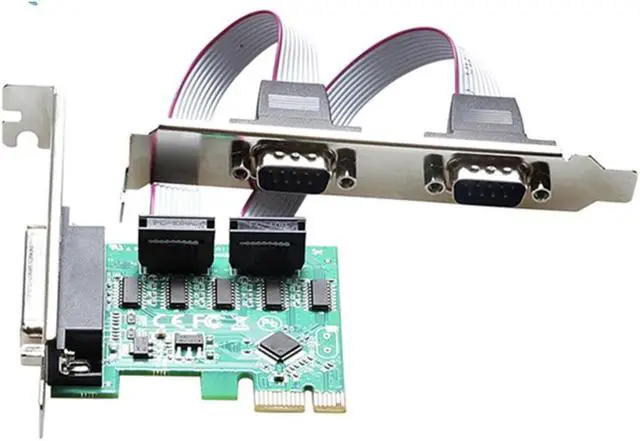

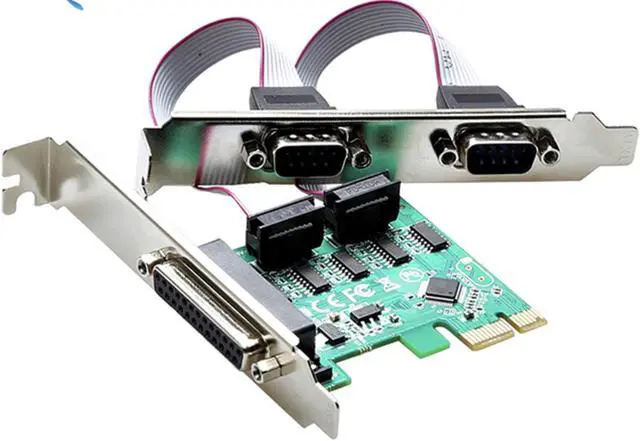

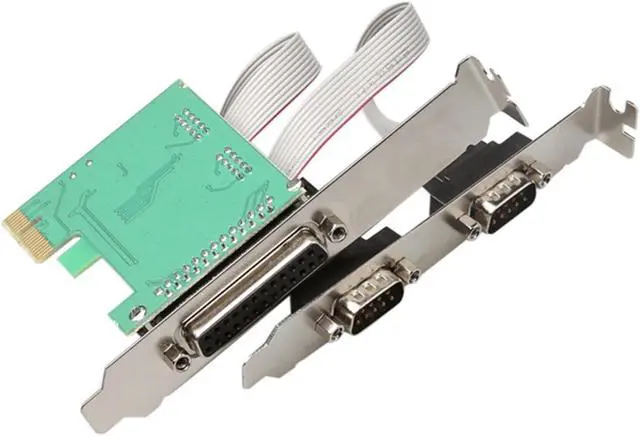

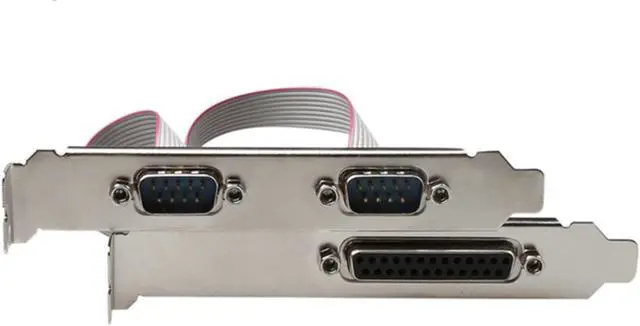

PCI Express PCIe to 2 RS232 RS-232 Serial Port COM & DB25 Printer Parallel Port Interface Riser Card

Model number
TXB063
Chipset
WCH/CH382L
Port number
2* Serial port
Interface
PCI Express 1x slot
Dimension
65.4*60*16mm
Support OS

Windows®10(32/64), 8 /8.1 (32/64), 7 (32/64), Vista(32/64), XP(32/64), 2000
Windows Server® 2012, 2008 R2, 2003(32564)
Linux 2.4.x and later (Tested up to 3.5)
Environment
Operating Temperature: O 'C-50 ®C
Relative Humidity: 10%-90%(non-condensing)

Storage Temperature: -0*C-80*C
Relative Humidity: 5%- 90%(non-condensing)
Features
Serial Port:
Supports RS232, RS485 & RS422 modes
Bi-directional speeds from 50 bps to 16 Mbps/Port
Full Serial modem control
Supports Hardware, Software flow control
5, 6, 7, 8 and 9-bit Serial format support

Even, Odd, None, space & Mark parity supported
Custom BAUD Rates supported with external clock or by programming internal PLL
On Chip 256 Byte depth FIFOs in Transmit, Receive path of each Serial Port
Supports remote wake up and power management features
Serial Port transceiver shutdown support
Supports Slow IrDA on all Serial Ports IEE1284


Note
the main product (without affecting the normal use, the configuration has increased or decreased)
Compare the detail sizes with yours, please allow 1-3cm error, due to manual measurement.
Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understanding.
