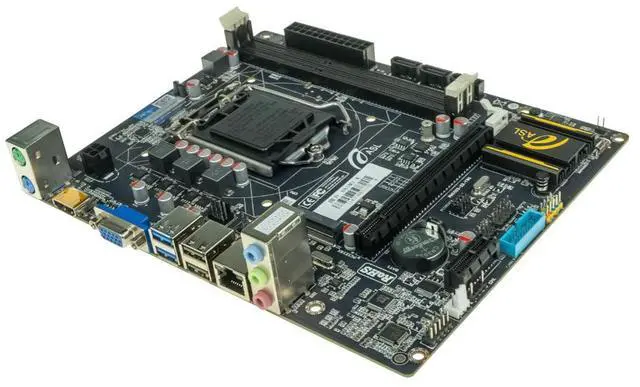

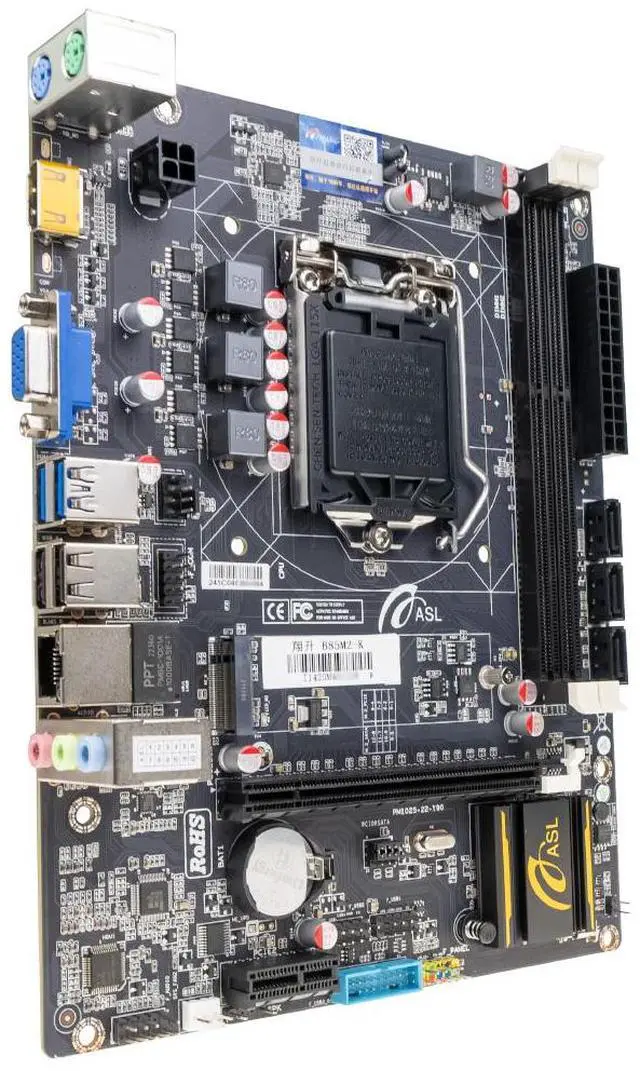

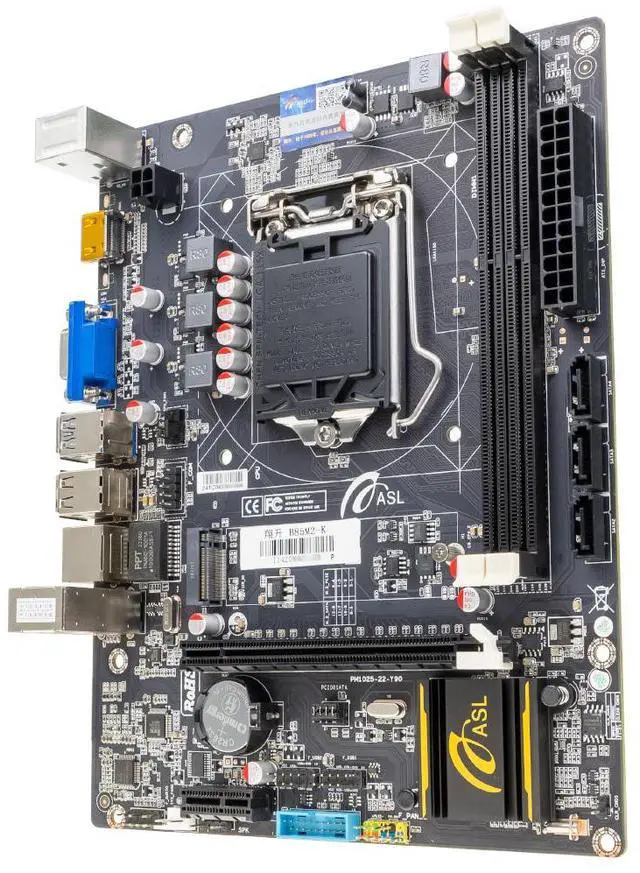

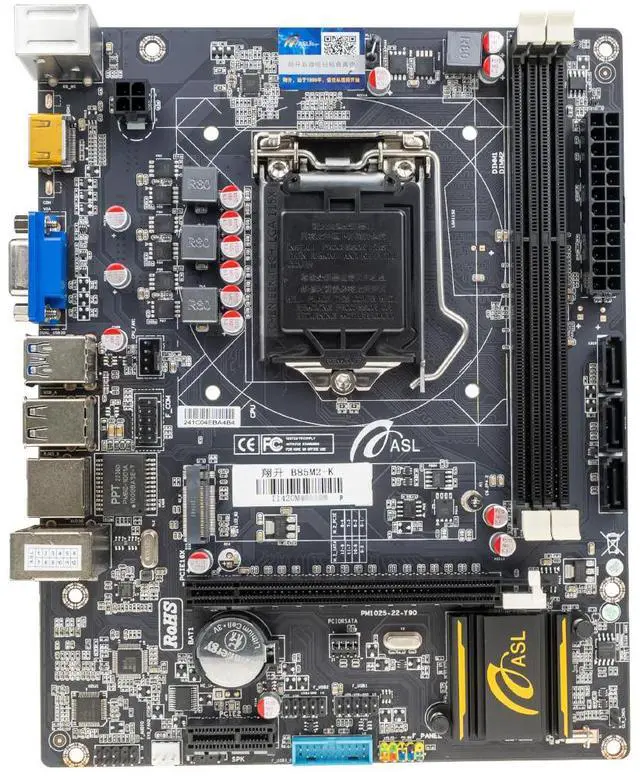

ASL B85M2-K M-ATX Motherboard, Supports 4 Gen LGA1150, 2xDDR3, HDMI+VGA, 2×SATA2.0+2xSATA3.0+M2, 1x PCI-E x16, 2x PCI-E x1 slots
Limited time offer, ends 12/30 By STELLAR
- 1. Basics: B85 chipset, M-ATX form factor, 170×214mm.
- 2. Processor & Memory: Supports 4th - gen LGA1150 Core/Pentium/Celeron (TDP 65w); 2 DDR3 slots, max 16GB.
- 3. Audio, Video & Network: Requires processor - integrated graphics, rear HDMI, VGA; Realtek audio, 3 audio ports, 5.1 - channel; Realtek Gigabit Ethernet, RJ45 port.
- 4. Storage & Expansion: 3 SATA, 1 M.2 (2280, protocol switch via jumper); 1 PCI - E x16, 2 PCI - E x1 slot.
- 5. Interfaces: Rear PS/2, HDMI, VGA, 2 USB3.0, 2 USB2.0, RJ45, 3 audio ports; Internal 24Pin, 4Pin and other pins.
+
+
Overview
Specs
Reviews
Product Model: ASL H311M-D3
Chipset Platform: B85 Desktop Chipset
Form Factor: M-ATX
Dimensions: 170x214 mm
Processor:
Supports Intel 4th generation LGA1150 processors
Supports Intel Core/Pentium/Celeron processors
TDP 65W
Memory Slots:
2x DDR3 DIMM dual-channel memory slots
Supports up to 16GB
Memory frequency support depends on motherboard/processor
Video Output Ports:
Requires integrated graphics functionality from the processor
1x rear HDMI video output
1x rear VGA video output
Audio:
Integrated Realtek audio chip
Supports High Definition Audio technology
Rear 3-jack audio ports
Supports 5.1 surround sound
Network:
Integrated Realtek 1000M network chip
Rear 1x RJ45 Ethernet port
Storage:
3x SATA 3.0 6.0Gb/s hard drive interfaces
Expansion Slots:
1x PCI-E x16 slot
2x PCI-E x1 slot

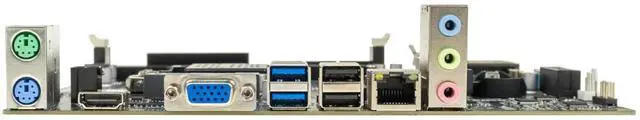

Rear Panel Ports:
1x PS/2 keyboard/mouse port
1x HDMI video output port
1x VGA video output port
2x USB 3.0 ports
2x USB 2.0 ports
1x RJ45 Ethernet port
1x 3-jack audio port
Internal Pins/Connectors:
1x 24-pin motherboard power connector
1x 4-pin CPU power connector
1x 4-pin CPU fan header
1x 3-pin system fan header
1x M.2 SSD protocol switch jumper (NVMe/SATA)
1x Front USB 3.0 Pin Header
2x Front USB 2.0 Pin Headers
1x COM Port Pin Header
1x External Speaker Pin Header
1x CMOS Clear Pin Header
1x Front Audio Pin Header
1x Front Panel Pin Header
