,German,English MX3 voice Backlit Air Mouse Smart Remote Control IR 2.4G RF Wireless Keyboard For Android Windows

,German,English MX3 voice Backlit Air Mouse Smart Remote Control IR 2.4G RF Wireless Keyboard For Android Windows

NOTE1: This type of air mouse can't control the satellite channels.

NOTE2: Only 5 keys can be programmed.

NOTE3: This remote maybe not compatible with some Smart TV, because third-party USB dongle is blocked.You need to confirm your smart TV can support other remotes except the original remote.

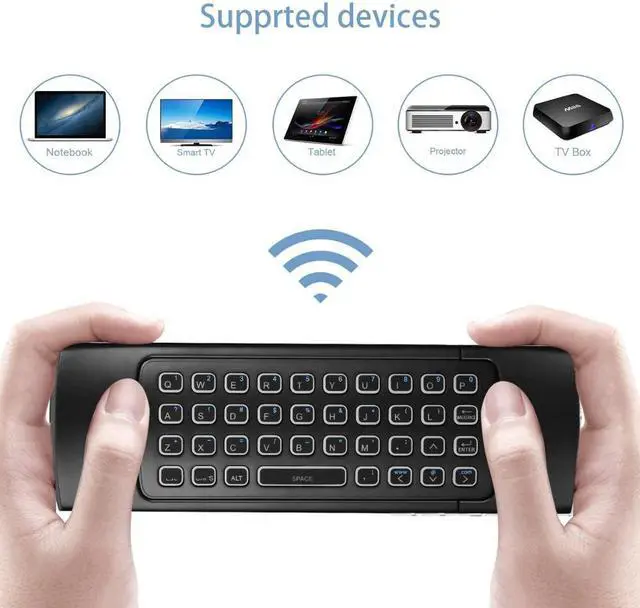

Systerm Support

1. Android OS

2. Mac OS

3. Linux

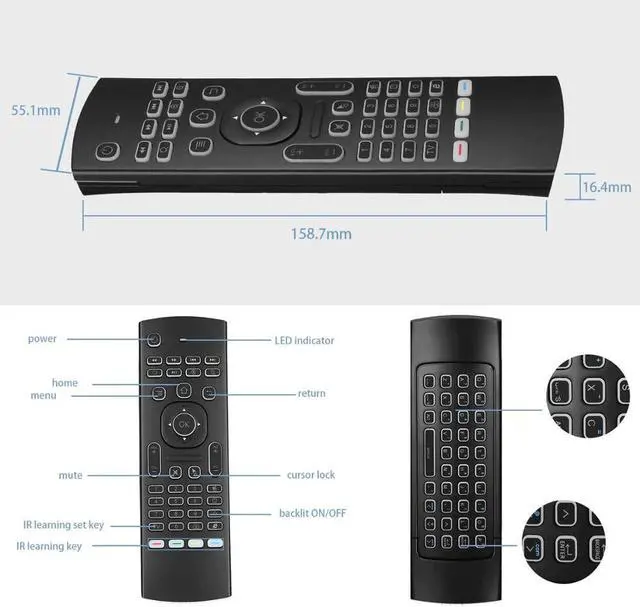

IR learning function

There are 5 buttons which could be programmed to your TV remote keys:

1. Power button -Locate the top left corner

2. 4colors buttons-Locate the bottom

Note: Please check if your TV remote supports the NEC protocol for learning.

IR learning operation as the following steps

1. Pointing IR emitters of the TV remote and the air mouse to each other ,

2. Press and hold hte TV key on the remote 4-5s until the LED flash slowly,

3. When you see the LED flashing slowly ,press the key on your TV remote to learn,

4. When the remote receiver the IR signal,the LED will be solid.

5. The 5 keys could learn following the step 1-4,

6. Press the TV button to finish the learning process.

Specification

1) Transmission and control: 2.4 G RF wireless radio-frequency technique;

2) Sensor: 3-Gyro + 3-Gsensor;

3) The key number:81 keys;

4) Control distance: >5m;

5) Battery Type: AAA*2(not included)

6) Working Power: Less than 10mA in the work condition;

7) Standby Power: Microampere, almost no power, in line with the

European "Energy star" environmental standard;

1 * User Manual
