10G Ethernet PCIe Network Adapter Lan Card, AQUANTIA AQC107 Chipset 10Gbps LAN Controller, RIITOP 10G/5G/2.5G/1G/100Mbps RJ45 NIC Card,Support PXE for Windows 11 and Linux
- 10G PCIe Network Card NIC Adapter with AQC107 Chipset

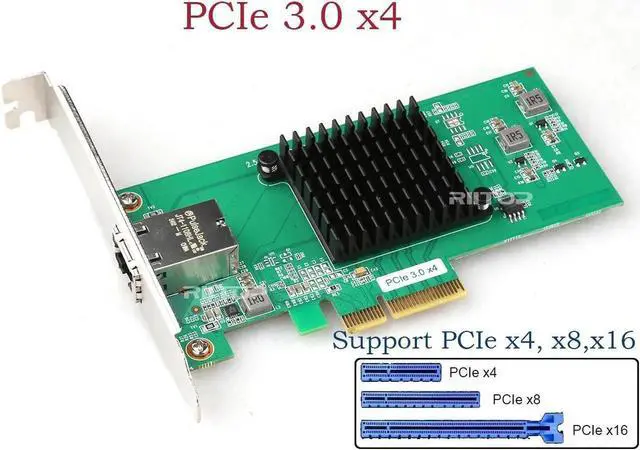

- PCI Express 3.0 X4, Supports line rate of 8.0GT/s and 5.0GT/s per lane,compatible with PCIe X4,X8,X16 Slot.
- Provides 10Gbps high speed rate transmission speed with higher data transfer rate. Gaming and playing large games can maintain a stable network transmission, to deal with delays, lag and drop problems.
- Using AQC107 chip solution, multi-core processor, expandable virtual and unified storage, better compatibility and stability.

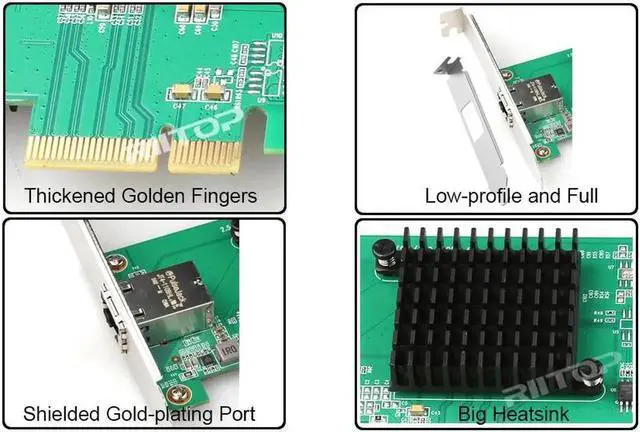

- The all-around oversized board heatsink design can effectively and continuously dissipate heat quickly to avoid unstable data transmission due to high temperature overheating.
- PCIe x4 interface design, compatible with PCI Express X4, X8, X16 channels ,Not suitable for PCI slots. With 2U Bracket Profile, both small and large chassis can be used.
+
+
Overview
Specs
Reviews
Note:
1. Need a free PCIe x4 slot to add on this card, please confirm that before bid.
This RIITOP PCIe 10 Gigabit NIC will allow users to transfer out a single electrical port 10 Gigabit NIC on a desktop computer or server to provide 10Gbps high rate transfer speed. It is a high-performance desktop single-port 10GbE network adapter with PCI Express Gen2/3 x4 channels that supports five network speeds: 10GBASET/5GBASET/2.5GBASET/1000BASET/100BASETX. Scalable virtualization and unified storage make it easy to create a high-speed 10GbE network environment. If you are a hardcore gaming gamer seeking stability and high speed, this 10GbE NIC is a good high-speed network solution.
Features:
Supports PCI Express Gen-III x4.
PCI Express 3.0 x4 lanes.
Bus type PCIe x4, compatible with x8, x16.
Supports jumbo frames up to 16 KB.

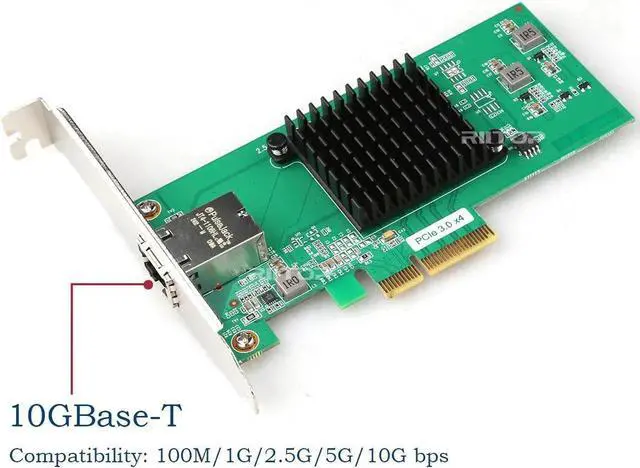

1 Gbps to 10 Gbps, 5 Gbps, 2.5 Gbps and 100M data rates.
IEEE 802.3an 10 Gbit/s Ethernet over unshielded twisted pair.
IEEE 802.3bz 2.5 / 5GBASE-T.
IEEE 802.3ab 1000BASE-T Gigabit Ethernet.
IEEE 802.3u 100BASE-TX Fast Ethernet.
IEEE 802.1Q VLAN.
IEEE 802.3x Full Duplex and Flow Control.
IEEE 802.3az-Energy Efficient Ethernet (EEE).
iSCSI: No.
WoL: yes.
Jumbo frame: yes.
DPDK: yes.
PXE: yes.
FCoE: no.
PCI-SIG/SR-IOV:Yes.
Cable Type Compatible:
10GBase-T:Cat 6 or higher up to 100m.
5GBase-T:Cat 6 or higher up to 100m.
2.5GBase-T:Cat 5e or higher up to 100m.
1GBase-T:Cat 5e or higher up to 100m.
100MBase-T:Cat 5 or higher up to 100m.
(Please note: NO cable included!)
Hardware Requirements:
1x PCIe x4 (or above) slot needed.
System Requirements:
Windows 7 / 8 / 8.1 / 10.
Windows Server 2008 R2 / 2012 R2 / 2016 R2 / 2019 R2.
Linux stable kernel version 2.6.32 / 3.x / 4.x or higher.
Linux CentOS / RHEL 6.5 / 7.x or higher.
Ubuntu 14.x / 15.x / 16.x or higher.
VMware ESX / ESXi 4.x / 5.x / 6.x or higher.
MAC OS.
