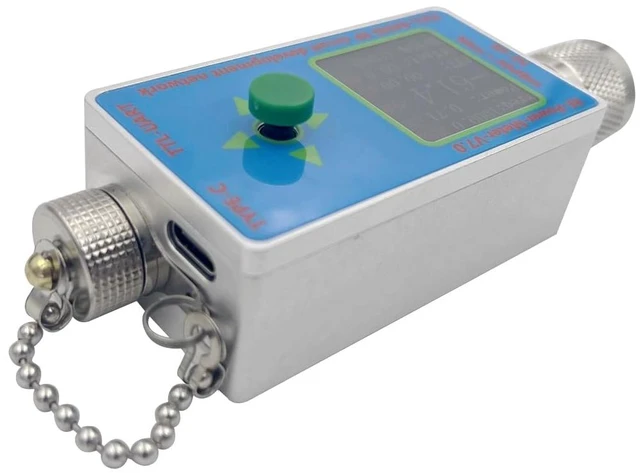

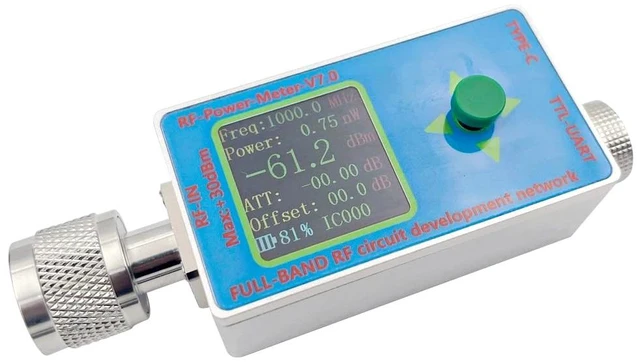

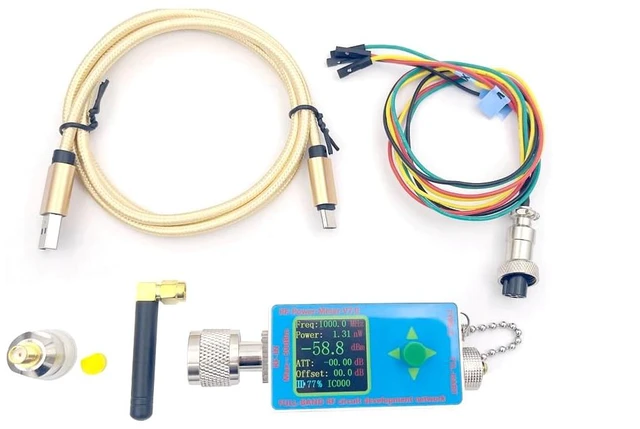

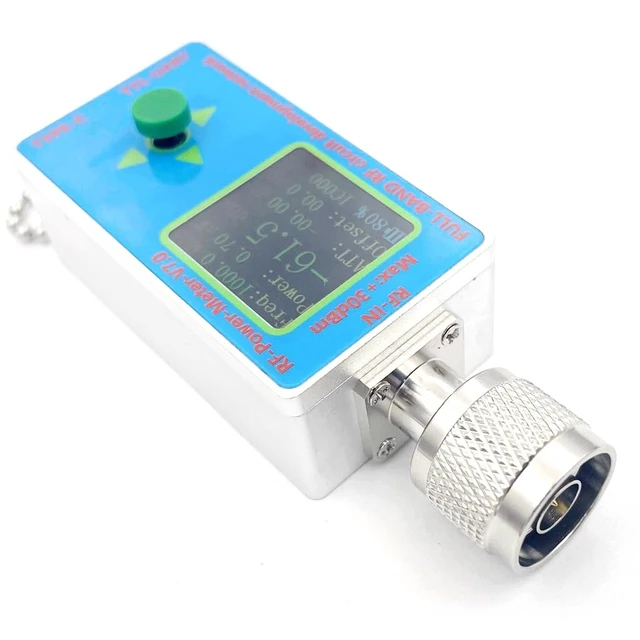

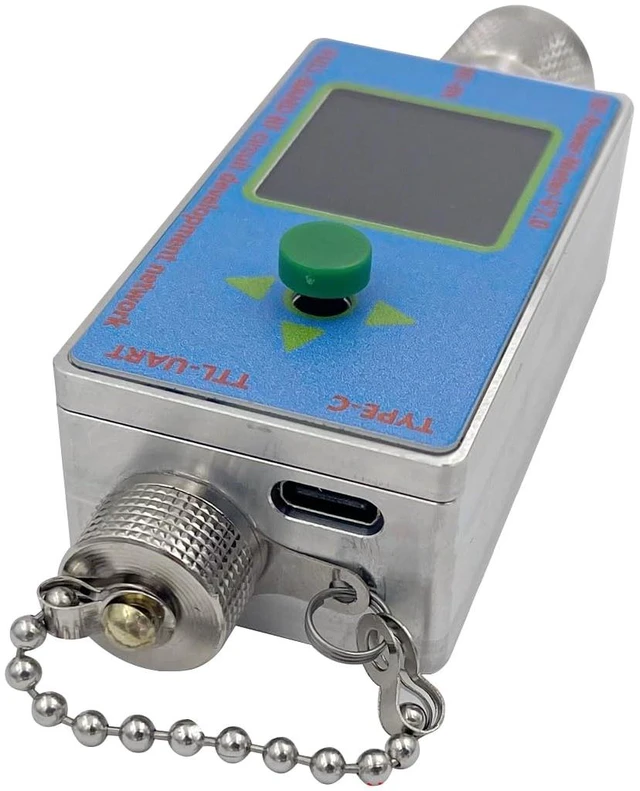

10GHZ N Type RF Power Meter V7 Power Detector 5V USB-C Port Serial Communication Data Export with 1.3-inch TFT LCD (Detector Kit)

The RF-Power-Meter-V 7.0 series Features preset bias, wide dynamic range, and fast measurement speed. The software with this power meter allows users to configure the power meter on a PC and simplifies data recording and sharing.; Supports multiple high-speed dynamic acquisitions, with a maximum of 500kbps (2S) for host computer acquisition. Supports RF signal acquisition up to 10GHz.; Has a built-in digital programmable attenuator (0 - 31.75DB ).

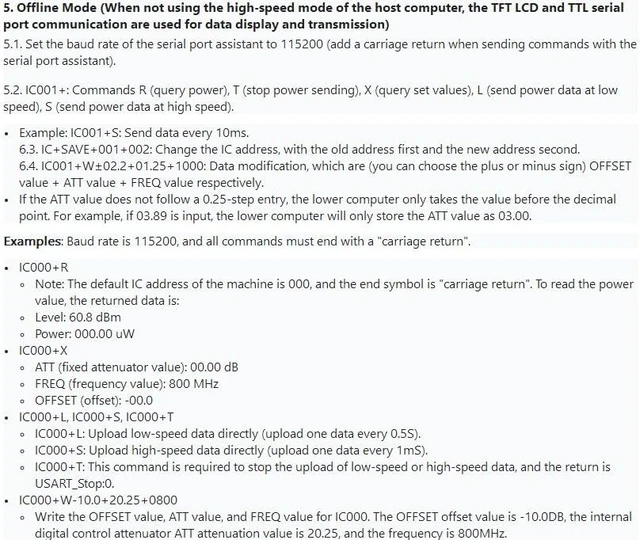

Measurement power range: -60 to +30dBm (excellent linearity from 0 to -40dBm. When the input signal is greater than 0 to +30dBm, the internal digital control attenuator can be set as ATT = 30DB and OFFSET = +30DB, and the measured power value will be displayed after actual measurement).; Uses a 4-pin aviation plug to provide TTL serial port read and write functions, and offers single-shot and continuous data reading modes. The RF input interface is an N-type male connector.; The host computer has 2 MARK cursor functions, facilitating the measurement of modulation pulse width; it can automatically calculate the maximum and minimum values, with a maximum storage depth of 500 points; it also supports pause, data saving, and export functions.
