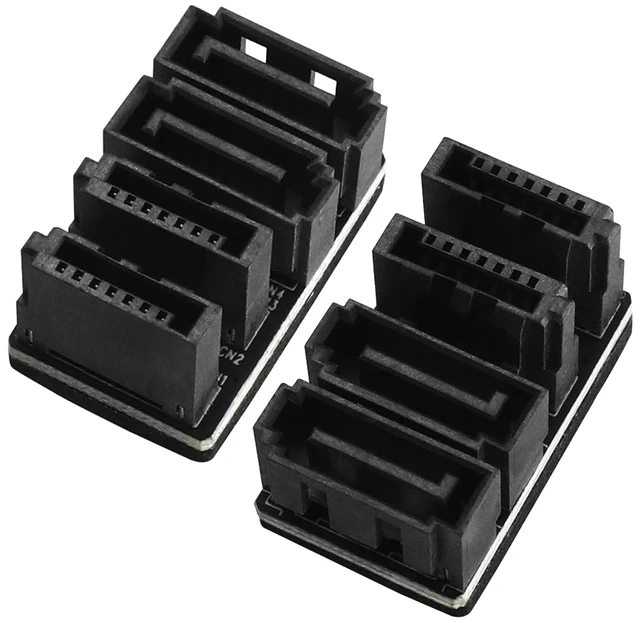

180 Degree SATA Motherboard Converter, Dual SATA 7-Pin Female to 7-Pin Male Connector Adapter.Suitable for Computer/SSD/HDD Motherboard Dual Port Expansion Socket (2-Pack/180 Degree)

Quantity: (2-Packs)

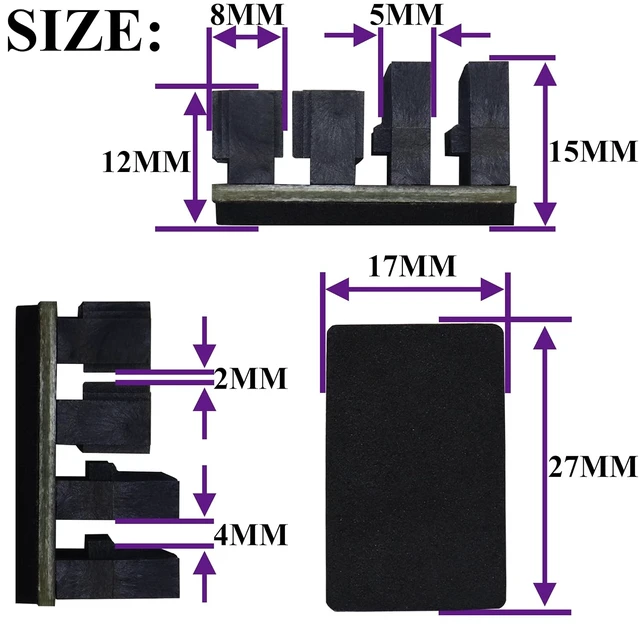

Size: Length, Width, Height ( 2.7 mmx 1.7 mmx 1.5 mm)

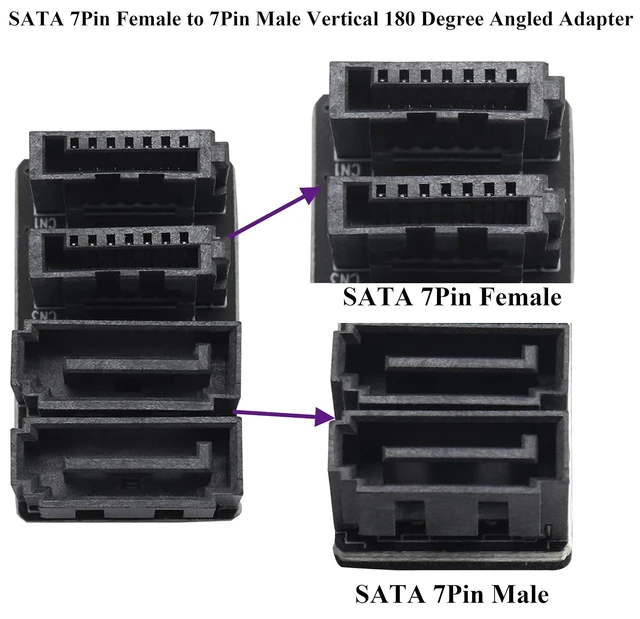

Material: PCB+plastic+metal, Color: (black) Connector 1: 180 degree SATA 3.0 x2 female 7-pin plug adapter,
Connector 2: SATA 3.0 x2 male 7-pin plug adapter.;

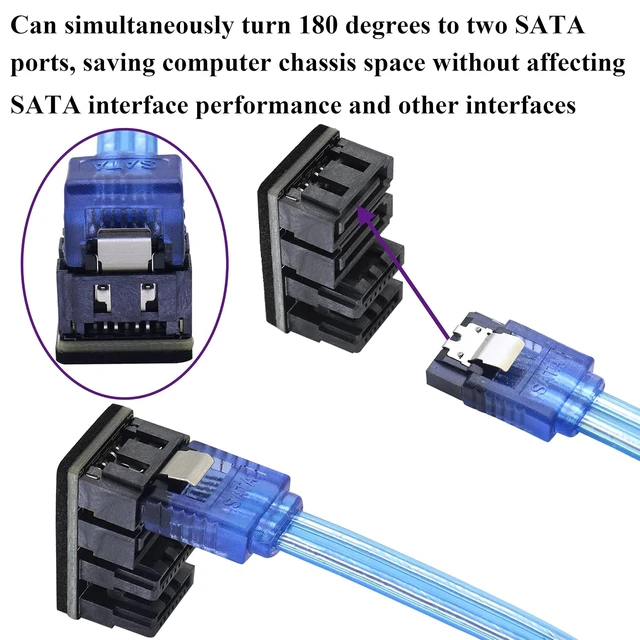

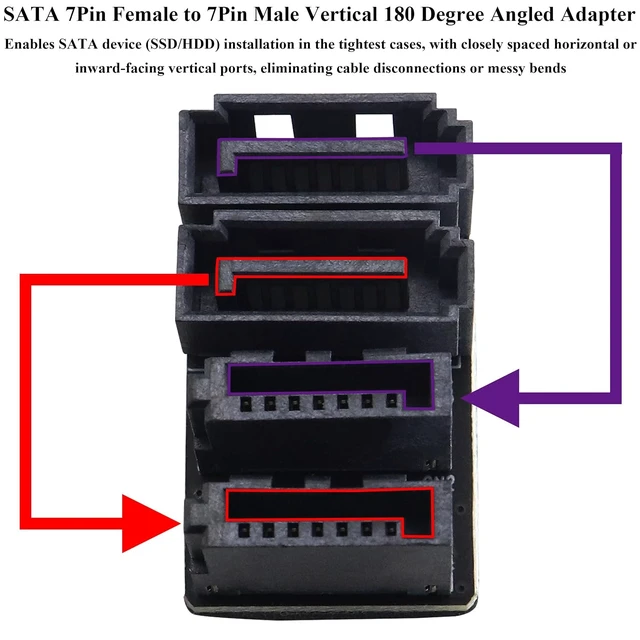

Usage: The 180 degree angled installation effectively solves the problem of limited steering and saves chassis space, especially the issue of height limitation preventing the insertion of standard SATA cables, providing greater installation flexibility.;

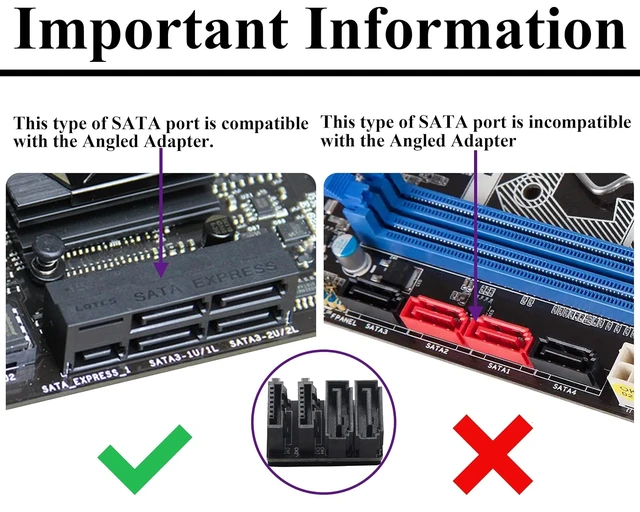

Important Notice: This adapter is designed specifically for changing the installation direction of SATA 7-pin disk cables and is only compatible with L-shaped SATA interfaces. It extends approximately 11mm-12mm from the front of the socket and has a good insulation backing.; Supports High-Speed

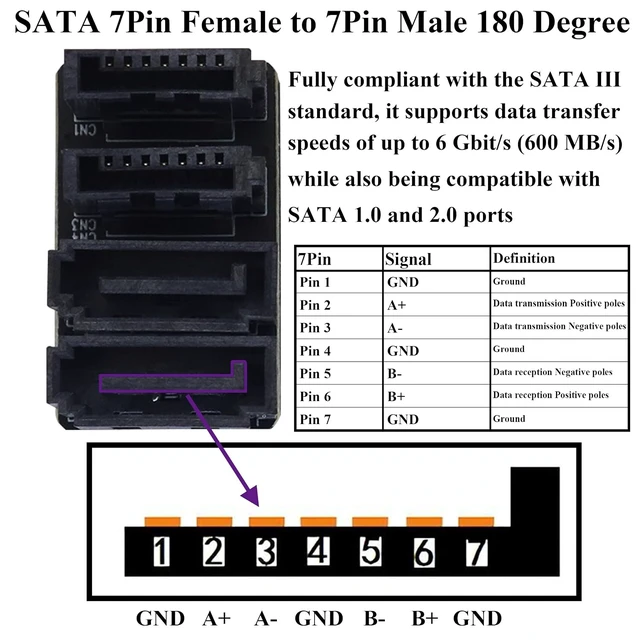

SATA 3.0: The data transfer rate is 6 Gbps high-speed line, fully backward compatible with SATA I and II devices.; How to choose the correct angle: We offer connectors with two different directional angles of 90 degrees and 180 degrees. Choose the correct connector according to your needs. Please carefully check your computer motherboard. Please confirm the angle and direction you need before purchasing.
