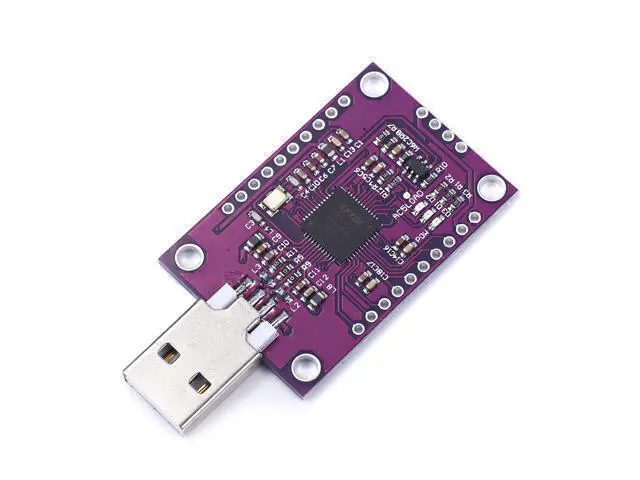

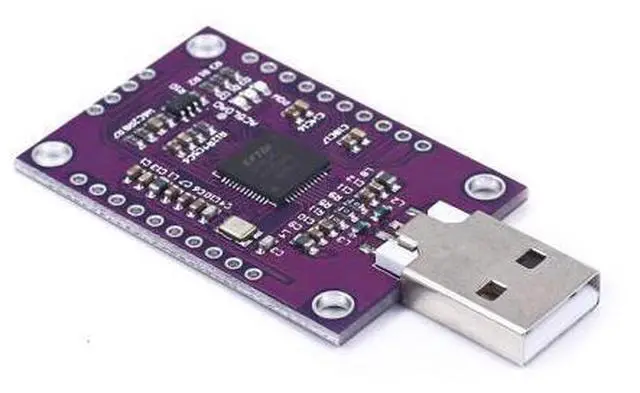

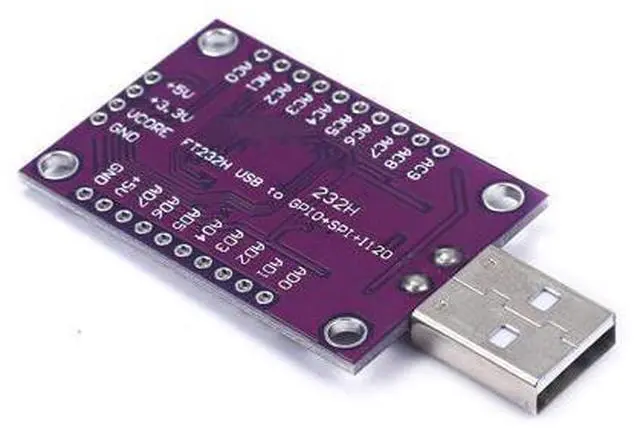

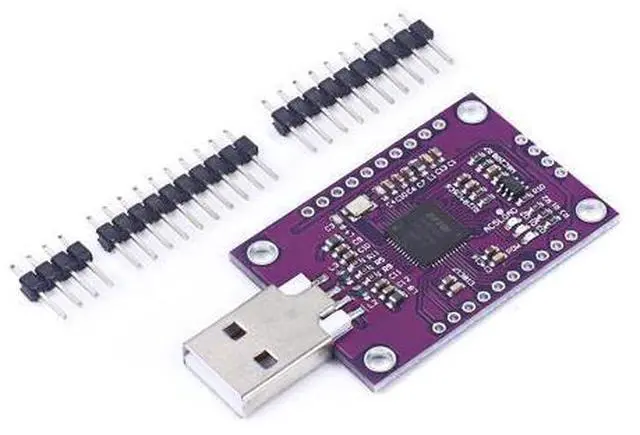

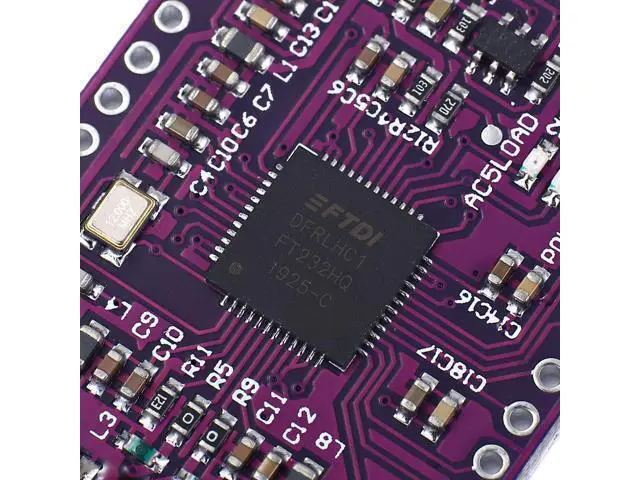

FT232H USB to JTAG High-Speed Multifunction Serial Port Module SPI/I2C UART/FIFO SPI/I2C
Limited time offer, ends 06/28 By Peili Daily
- Working voltage: 3.3V-5V
- Working environment temperature: -40~85degree
- Supports bus-powered, self-powered and high-power bus-powered USB configurations +1.8V (chip core) and +3.3VI/O interface (+5V withstand voltage)
- Support USB bulk data transfer mode (512-byte packets in high-speed mode) UART transfer data rate up to 12 megabaud (baud). (PS232 data rate limit is determined by external level shifter), UART interface supports 7 or 8 bit data bits, 1 or 2 stop bits and odd/even/marker/space/no parity
- Use external EEPROM to save operating mode configuration and USB description string configuration data via USB interface
- Automatic transmission enable control for RS485 serial applications using the TXDEN pin
- Compatible with UHCI/OHCI/EHCI host controller
- compatible with USB2.0 high speed 480Mbps and full speed 12Mpbs
+
+
Overview
Specs
Reviews
Working voltage: 3.3V -5V.
Working environment temperature: -40~85degree. Supports bus-powered, self-powered and high-power bus-powered USB configurations + 1.8V (chip core) and + 3.3VI /O interface (+5V withstand voltage). Support USB bulk data transfer mode (512-byte packets in high-speed mode) UART transfer data rate up to 12 megabaud (baud). (PS232 data rate limit is determined by external level shifter), UART interface supports 7 or 8 bit data bits, 1 or 2 stop bits and odd/even/marker/space/no parity. Use external EEPROM to save operating mode configuration and USB description string configuration data via USB interface. Automatic transmission enable control for RS485 serial applications using the TXDEN pin. Compatible with UHCI/OHCI/EHCI host controller. compatible with USB 2.0 high speed 480Mbps and full speed 12Mpbs
Working environment temperature: -40~85degree. Supports bus-powered, self-powered and high-power bus-powered USB configurations + 1.8V (chip core) and + 3.3VI /O interface (+5V withstand voltage). Support USB bulk data transfer mode (512-byte packets in high-speed mode) UART transfer data rate up to 12 megabaud (baud). (PS232 data rate limit is determined by external level shifter), UART interface supports 7 or 8 bit data bits, 1 or 2 stop bits and odd/even/marker/space/no parity. Use external EEPROM to save operating mode configuration and USB description string configuration data via USB interface. Automatic transmission enable control for RS485 serial applications using the TXDEN pin. Compatible with UHCI/OHCI/EHCI host controller. compatible with USB 2.0 high speed 480Mbps and full speed 12Mpbs
