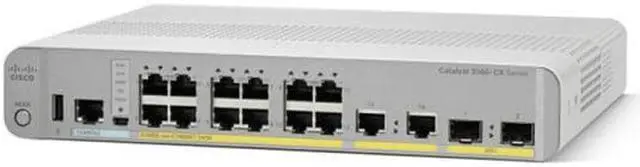

WS-3560-CX 12-port compact Switch Layer 3, POE- 12 x 10/100/1000 Ethernet Ports, 2 SFP&2GE uplinks- Data IP Base (WS-C3560CX-12PC-S)

WS-C3560CX-12PC-S Specification
Ethernet Ports

12 x 10/100/1000 Gigabit Ethernet

PoE
Output Ports

12 PoE+

Available
PoE Power

240W

Uplinks

2 x 1G copper plus

2 x 1G SFP

Default Software

Powering Option

Internal power supply

Available PoE Power (W)

240W

Can Switch Be Powered with Uplinks?

No

Forwarding Bandwidth

16 Gbps

Switching Bandwidth (full-duplex capacity)

32 Gbps

Flash memory

128 MB

Memory DRAM

512 MB

Max VLANs

1023

VLAN IDs

4000

Maximum transmission unit (MTU)

Up to 9000 bytes

Jumbo frames

9198 bytes

Forwarding rate 64 Byte Packet

23.8 mpps

Dimensions
(H x W x D)

1.75 x 10.6 x 9.4 in ( 4.44 x 26.9 x 23.8 cm)

Weight

5.1 lb ( 2.31 Kg)

Operating* temperature up to 5000 ft (1524 m)

-5°C to +45°C (+23°F to +113°F)

Operating* temperature up to 10, 000 ft (3048 m)

-5°C to +45°C (+23°F to +113°F)

Storage temperature up to 15, 000 ft (4572 m)

-25°C to +70°C (-13°F to +158°F)

Operating altitude

Up to 3048 m (Up to 10, 000 ft)

Storage altitude

Up to 4000 m (Up to 15, 000 ft)
