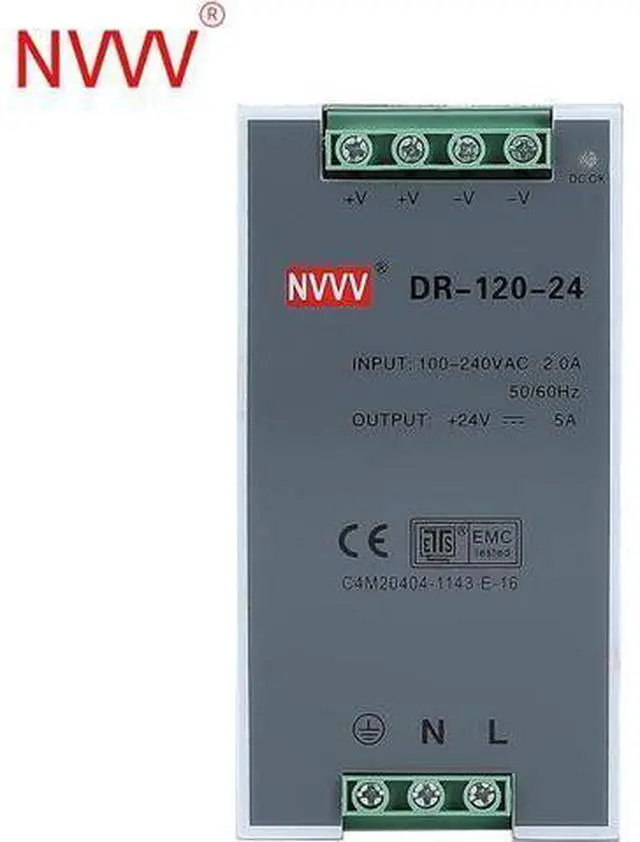

NVVV DR-120-24 AC to DC DIN-Rail Mount Power Supply, 24V, 5Amp, 120W Single Extreme -30 to 70 °C (-22 to 158 °F) Operating Temp, Overload Protection, Metal
- POWER - The DR-120 specs out with 24 volts at 5 amps and has a universal AC input range; Gone through 100% full load burn-in tests; Input voltage 85-264 VAC at 47-63Hz; Easy install - the door-120 series power supply was designed to easily install on din rail ts-35/7.5 or 15 rails to provide for an efficient and organized work space; Protections - the power supply protects against short-circuits, overloading, over-voltage, and over temperature ensuring you and your place of work remain safe and recovers automatically after failure; Industrial - this power supply is designed to work with the most rigorous of machinery and adaptations including heavy machinery like cnc machines; MONEY BACK GUARANTEE - If you are not 100% satisfied with your power supply just return the device and we will refund your purchase; or you can take advantage of the unique NVVV 3-year warranty
+
+
Overview
Reviews
Package Include: 1 x 120W 24V single output industrial DIN rail power supply
DR-120-24 specifications: output
power (W): 120 ripple
& noise (mV p-p): 150
mV load regulation: ±
1 % line regulation: ±
0.5 % efficiency: 88% size (L x W x
H): 2.58 x 3.94 x 4.93 inches
Overvoltage Protection: When the outputvlotage is more than 135%, the output will be turned off. It will recover automatically after the abnormal.
detailed specifications: primary
output voltage (VDC): 24
output current (a): 5
maximum output power (W): 120
family: DR-120
input voltage: 85 to 264
VAC input frequency: 47Hz to 63Hz maximum input current (a): 2.25 output connector
Type: screw
terminal operating temperature-min (CEL): -30 to 70 °C operating temperature-max (CEL): 50
agency approvals: 3C/CE/ISO
color: silver
style: DIN.
Brand Name: NVVV
Connection instruction: Ground wire
L: Live wire
N: Negative
wire +V: DC
power output + -V: DC power output - +V
ADJ: output voltage regulation
DR-120-24 specifications: output
power (W): 120 ripple
& noise (mV p-p): 150
mV load regulation: ±
1 % line regulation: ±
0.5 % efficiency: 88% size (L x W x
H): 2.58 x 3.94 x 4.93 inches
Overvoltage Protection: When the outputvlotage is more than 135%, the output will be turned off. It will recover automatically after the abnormal.
detailed specifications: primary
output voltage (VDC): 24
output current (a): 5
maximum output power (W): 120
family: DR-120
input voltage: 85 to 264
VAC input frequency: 47Hz to 63Hz maximum input current (a): 2.25 output connector
Type: screw
terminal operating temperature-min (CEL): -30 to 70 °C operating temperature-max (CEL): 50
agency approvals: 3C/CE/ISO
color: silver
style: DIN.
Brand Name: NVVV
Connection instruction: Ground wire
L: Live wire
N: Negative
wire +V: DC
power output + -V: DC power output - +V
ADJ: output voltage regulation
