Bridge Rectifier 100A 1600V Full Wave diode Module 3 Phase MDS100A-X Small Size
Resistive load series:
Batteries, incandescent lamps, resistance wires, heating rods, electric irons,
resistance stoves, electric water heaters, thermal oil lamps, electric heaters.
Inductive load series:
Transformers, coils, motors, cutting machines, generators,Frequency inverters, mercury lamps,
voltage sodium lamps, metal halide lamp , charging piles, tram charging.
- Typical application: Inverter Ac/dc motor control Various rectifier power sources Battery charging, wire cutting, frequency, welding machine, electromagnetic heating
- Notice: The nominal current of a power semiconductor device is tested in a specific heat dissipation condition, and it is not a long working current.Therefore, the user should leave enough residual amount according to working conditions and working environment when selecting type.Leave 6 times the margin.The actual working current should be less than 5A when it is not equipped with the radiator, and the actual working current is greater than 5A.When the actual working current is greater than 40A, the appropriate radiator and fan should be installed to assist the heat dissipation.
MDS100A-X
|
MDS100A1600V
|
MDS100A with Heatsink
|
MDS200A1600V
|
MDS300A1600V
|
MDS400A1600V
|
|
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — | — no data | — | — | — | — no data |
| ITM | 100A small size | 100A | 100A with heatsink | 200A | 300A | 400A |
| Vrrm | 1600V | 1600V | 1600V | 1600V | 1600V | 1600V |
| Terminal | 5 | 5 | 5 | 5 | 5 | 5 |
| Frequency | 50Hz | 50Hz | 50Hz | 50Hz | 50Hz | 50Hz |
| Mounting | 57mm | 66mm | Mounted with radiator | 50*50mm | 94*53mm | 94*53mm |
| Category | 3-phase rectifier bridge | 3-phase rectifier bridge | 3-phase rectifier bridge | 3-phase rectifier bridge | 3-phase rectifier bridge | 3-phase rectifier bridge |
Bridge Rectifier 100A 1600V Full Wave diode Module 3 Phase MDS100A-X Small Size
| Model | MDS100A-X |
| Voltage | 1600V |
| PIN | 5 terminals |
| Ambient Temperature | -20~+75? |
| Mouting Method | Screw fixed |

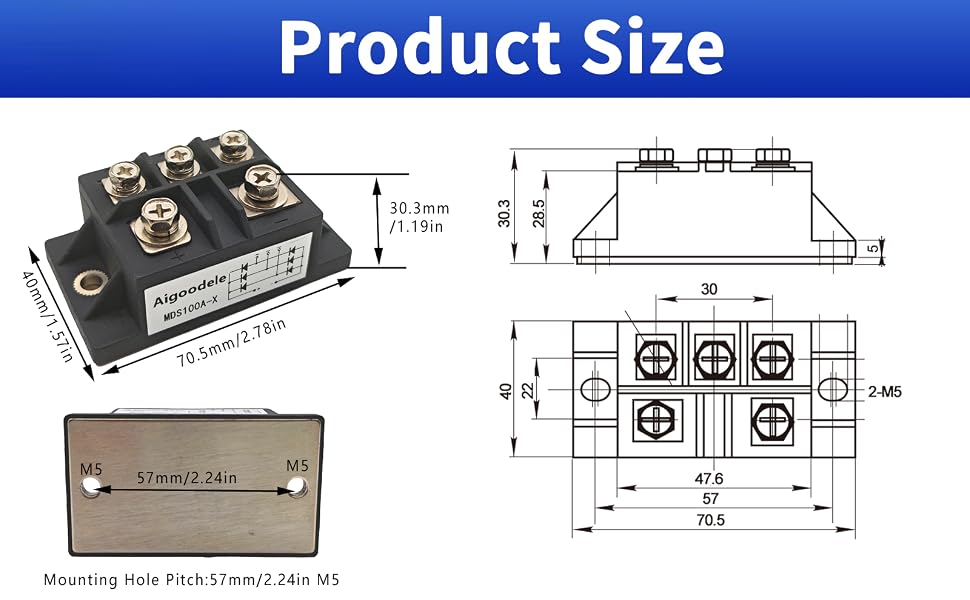

| Size | 70.5mm*40mm*30.3mm / mounting distance 57mm m5 |
Resistive load series:
Batteries, incandescent lamps, resistance wires, heating rods, electric irons,
resistance stoves, electric water heaters, thermal oil lamps, electric heaters.
Inductive load series:
Transformers, coils, motors, cutting machines, generators,Frequency inverters, mercury lamps,
voltage sodium lamps, metal halide lamp , charging piles, tram charging.
- Typical application: Inverter Ac/dc motor control Various rectifier power sources Battery charging, wire cutting, frequency, welding machine, electromagnetic heating
- Notice: The nominal current of a power semiconductor device is tested in a specific heat dissipation condition, and it is not a long working current.Therefore, the user should leave enough residual amount according to working conditions and working environment when selecting type.Leave 6 times the margin.The actual working current should be less than 5A when it is not equipped with the radiator, and the actual working current is greater than 5A.When the actual working current is greater than 40A, the appropriate radiator and fan should be installed to assist the heat dissipation.
|
