$21.86
Ships from China.
Meet Your Seller
PCIE Network Card M.2 A+E to RTL8111F Gigabit Ethernet Card Single Port RJ45
- Top quality products: The quality of the products can be guaranteed to the greatest extent, because we have our own production warehouse. Products can be tested for quality before they leave the factory.
- High-quality distribution logistics: Our delivery warehouse is in the United States. The logistics method used is a local first-level logistics service provider in the United States. From the moment you place the order, it will be collected within 24 hours. You can receive your package within 3-5 working days.
- Timely after-sales service: Whether you have any questions about the logistics provider or product quality, you can contact me at any time. As long as the product is unused, you can return it to our warehouse in New Jersey. We serve you wholeheartedly 373 hours a day.
+
+
Overview
Specs
Reviews
PCIE Network Card M. 2 A+E to RTL8111F Gigabit Ethernet Card Single Port RJ45

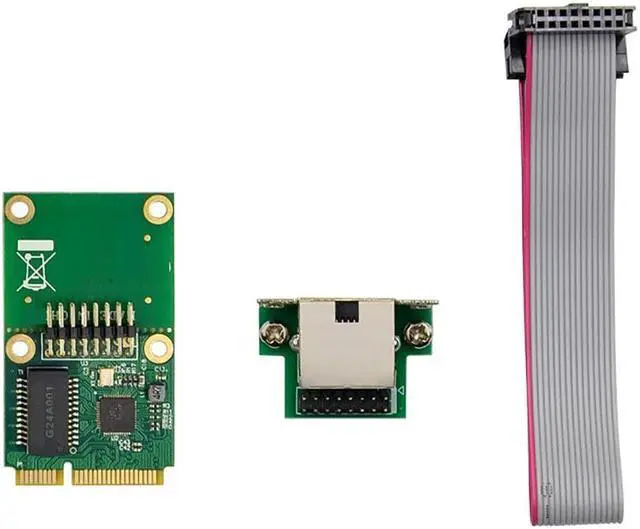

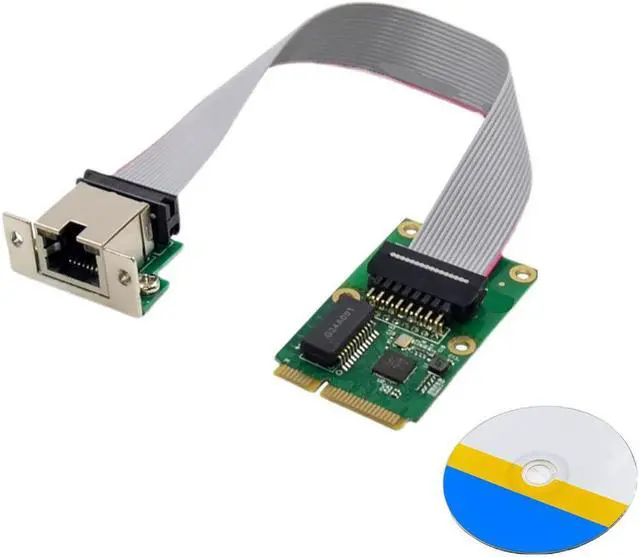

Package Contents:
1 x M. 2 A+E RTL8111F-Main Card
1 x RJ45 terminal
1 x CD-Drive Disc
1 x Network Terminal Cable
Mini PCIe:
-Single channel (x1) PCIe with throughput up to 2.5G bps
-Compatible with MiniPCIE Card Mechanical and Electrical Specification Revision 1.2
-Compatible with half/full size MiniPCIE card types and sizes
-Complies with PCIE Basic Specification Revision 1.1
-Plug and Play
Technical
Applicable network: Gigabit Ethernet server
Main chipset: Realtek RTL8111F
Bus type: MiniPCI-E
Media interface: 1 x RJ45, copper twisted pair
Transmission rate: 10/100/1000Mbps (data rate automatic negotiation operation)
High performance 1000BASE-T Ethernet controller card, backwards compatible with 10/100BASE-T networks
Network topology: fully compliant with IEEE 802.3802. 3u, 802.3 ab
Supports full duplex flow control (IEEE 802.3 x)
Supports IEEE 802.1P Layer 2 priority encoding
Supports IEEE 802.1Q VLAN tagging
Management function: IPv4 and IPv6 checksum offloading support
Receive side scaling (RSS) with two hardware receive queues
Supports massive frames of 9k bytes
Cross detection and automatic correction operation
Operating system:
Windows ME/98SE/2000/XP/Vista/Win 7/Win 8/Win 10 32&64bit
Windows Server2003/Server/Server2008/Server2012 32&64bit
Linux, DOS, MAC OS X 10.4. X or higher
Package Contents:
1 x M. 2 A+E RTL8111F-Main Card
1 x RJ45 terminal
1 x CD-Drive Disc
1 x Network Terminal Cable
Mini PCIe:
-Single channel (x1) PCIe with throughput up to 2.5G bps
-Compatible with MiniPCIE Card Mechanical and Electrical Specification Revision 1.2
-Compatible with half/full size MiniPCIE card types and sizes
-Complies with PCIE Basic Specification Revision 1.1
-Plug and Play
Technical
Specifications
:Applicable network: Gigabit Ethernet server
Main chipset: Realtek RTL8111F
Bus type: MiniPCI-E
Media interface: 1 x RJ45, copper twisted pair
Transmission rate: 10/100/1000Mbps (data rate automatic negotiation operation)
High performance 1000BASE-T Ethernet controller card, backwards compatible with 10/100BASE-T networks
Network topology: fully compliant with IEEE 802.3802. 3u, 802.3 ab
Supports full duplex flow control (IEEE 802.3 x)
Supports IEEE 802.1P Layer 2 priority encoding
Supports IEEE 802.1Q VLAN tagging
Management function: IPv4 and IPv6 checksum offloading support
Receive side scaling (RSS) with two hardware receive queues
Supports massive frames of 9k bytes
Cross detection and automatic correction operation
Operating system:
Windows ME/98SE/2000/XP/Vista/Win 7/Win 8/Win 10 32&64bit
Windows Server2003/Server/Server2008/Server2012 32&64bit
Linux, DOS, MAC OS X 10.4. X or higher
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
- CONTACT
Return Policies
- Return for refund within: 30 days
- Return for replacement within: 90 days
- This item is covered by Yingshan Autos Return Policy
