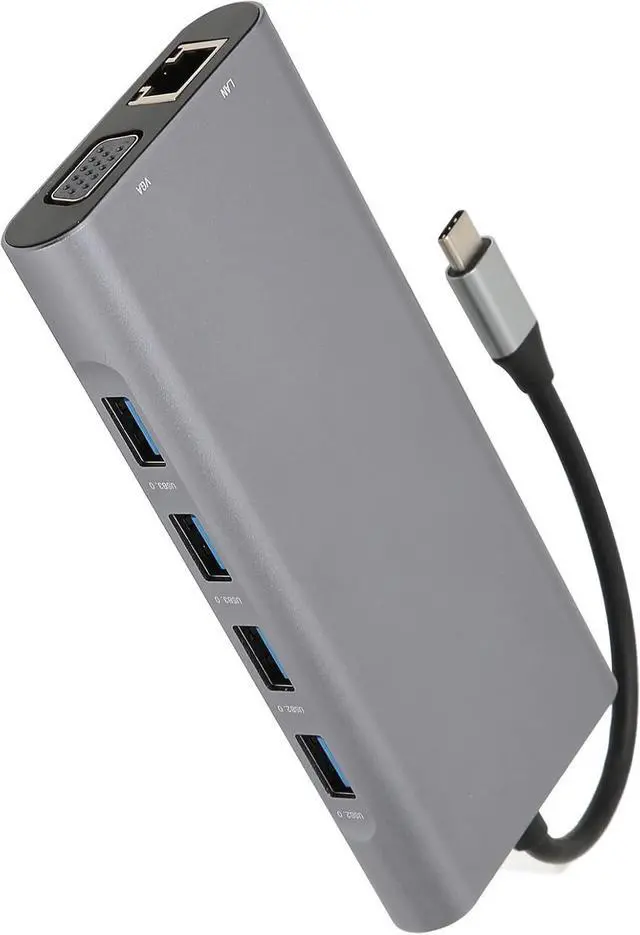

Item Type: Type C Hub
Material: Aluminum alloy
Interface: 1 x High Definition Multimedia Interface, 1 x VGA, 1 x RJ45, 1 x Type C (PD), 2 x USB 3.0, 2 x USB 2.0, 1 x Storage Card Reader, 1 x Memory Card Reader, 1 x 3.5mm Voice Frequency
Plug: USB 3.1 Type C Male
Compatible: Compatible Type C Devices.Support for Macbook2019/2018/2017. for Mi Air 12, for DELL XPS13-9360 and other Type C Interface Computers.Support for HUAWEI Mate 10 Pro, for Mate 10 and Other Mobile Phone Table(With the Function of Video Output)
System Requirements: For 7, for WIN 8, for WIN 10 or for OS X x 10.2 and Higher
1 x High Definition Multimedia Interface: Up to 3840 x 2160 at 30Hz Resolution, Mirror or Expand the Screen to TV, Monitor or Projector. It is backward compatible with 1080P, 720P, etc.
1 x VGA: Up to 1080P at 60Hz Resolution, Mirror or Expand the Screen to TV, Monitor or Projector.
2 x USB 3.0 and 2 x USB 2.0 Ports: USB 3.0 Transfer rate is up to 5Gbit/s, power supply is up to 4.5W. Used to Connect Wired Keyboard/Mouse, USB HDD/SDD, Etc.
Storage Card / Memory Card Reader: Extended Memory up to 2TB
1 x Type C: PD (100W Power Supply)
1 x RJ45: Gigabit Ethernet LAN RJ45 Port. USB Net Adapter Port. 1000/100/10M
Voice Frequency: 1 x 3.5mm Voice Frequency
Package List
1 x Type C Hub
1 x Rubber Hat
Note:
1. To use for MacBook M1, you need to upgrade to the latest system before using this product. (11.2.3)
2. If the High Definition Multimedia Interface output port is used, the host Type C port of the device must support the DisplayPort mode.
3. Voice frequency interface cannot be used alone, must be used together with High Definition Multimedia Interface output.
4. Supports BOTH High Definition Multimedia Interface and VGA output to work in mirror mode or extended mode.
The extended mode works as follows:
The laptop screen and the docking screen (VGA+High Definition Multimedia Interface
