100m USB 3.2 and USB 3.0 Extender with 4 Port Hub RS232 FSYNC and Single Adapter Power

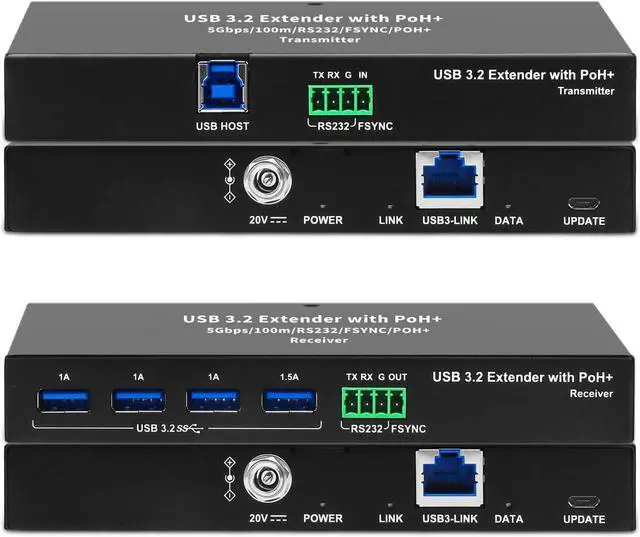

Extend USB 3.2 Gen 1 and USB 3.0 2.0 1.1 devices up to 100 meters over a single Cat 6a or Cat 7 cable. This advanced extender delivers 5Gbps data transfer speeds with full backward compatibility. Plug and play installation requires no drivers and works seamlessly with Windows macOS and Linux systems.

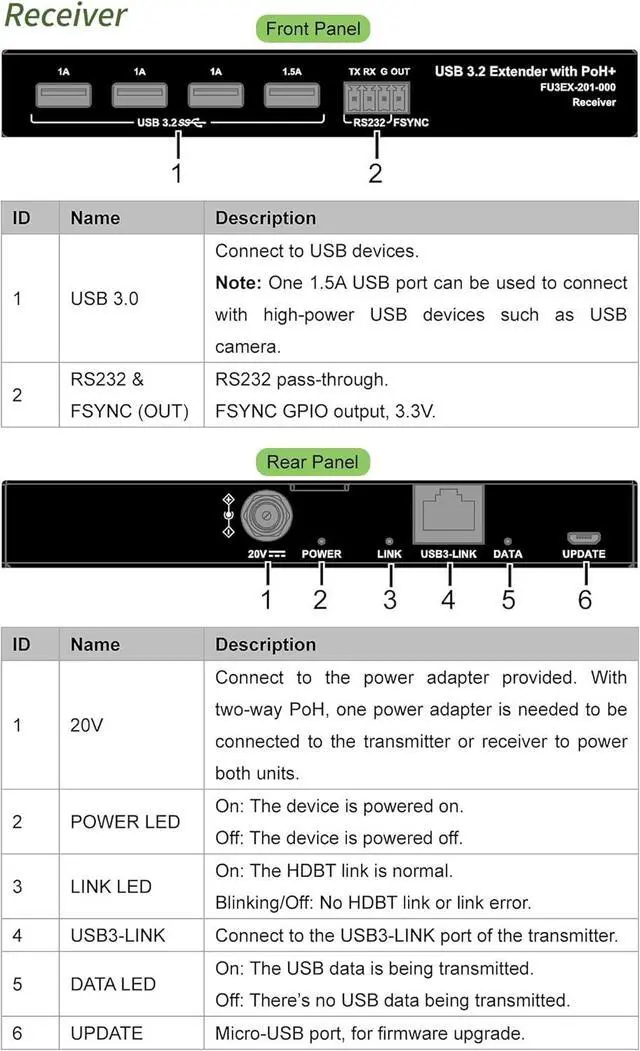

The hardware based design supports all USB protocols including Control Bulk Interrupt and Isochronous for industrial reliability. The receiver features a built in 4 port USB hub with one dedicated 1.5A high power port for demanding devices like cameras. It occupies only one USB tier allowing expansion with external hubs.
Innovative two-way power technology simplifies setup: Connect the included 20V/3A adapter to either the transmitter or receiver to power both units. Ideal for remote installations like outdoor surveillance where power access is limited.

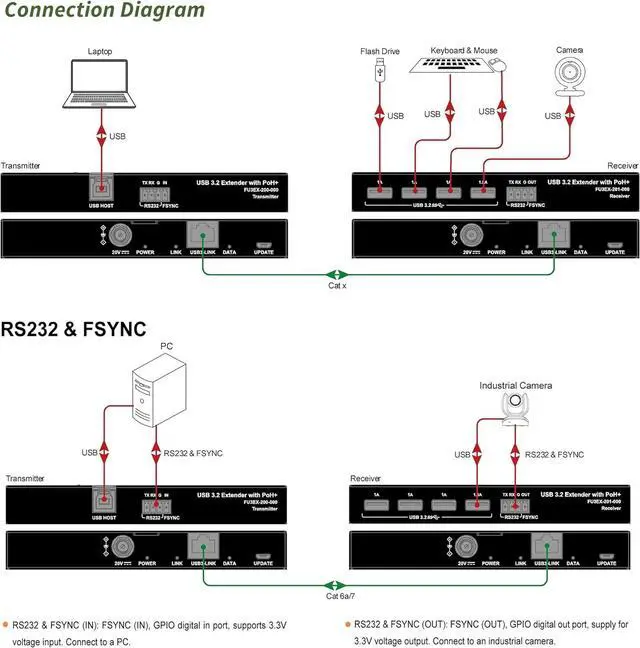

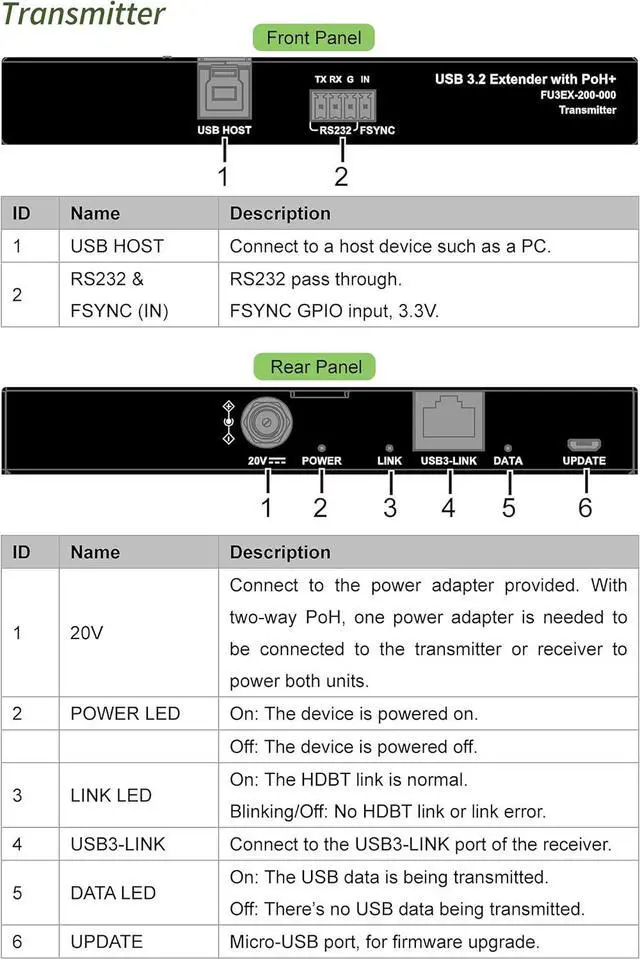

Integrated RS232 serial and FSYNC GPIO ports enable industrial camera control. The transmitter offers 3.3V FSYNC input for PC commands while the receiver provides synchronized 3.3V FSYNC output to trigger cameras. Perfect for automation and machine vision systems.

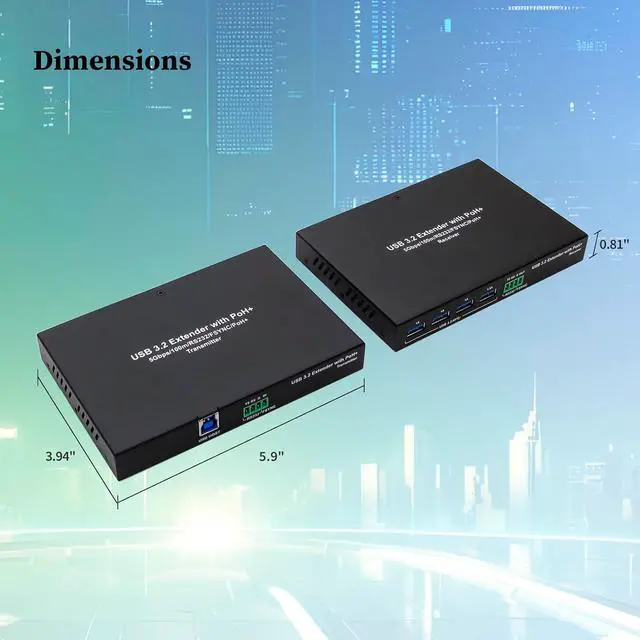

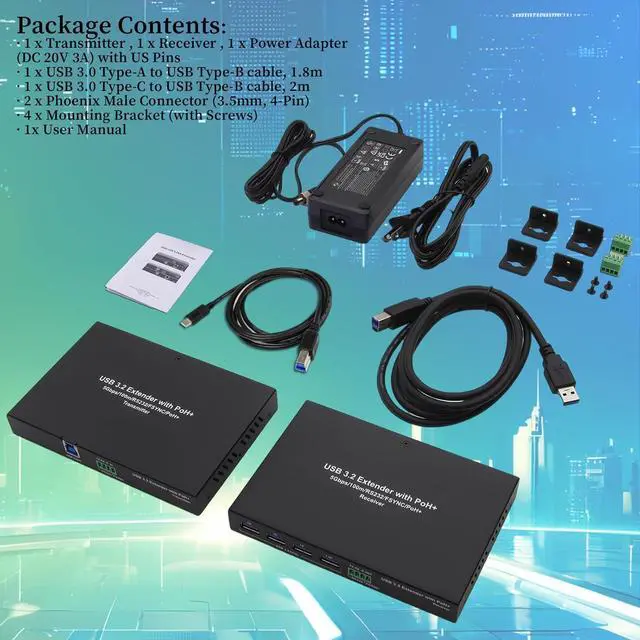

The package includes one transmitter unit (150x20.5x100mm), one receiver unit (150x20.5x100mm) , one 20V/3A power adapter (US pins), one USB 3.0 Type-A to Type-B cable, one USB 3.0 Type-A to Type-C cable, two 3.5mm 4-pin Phoenix connectors for RS232 & FSYNC wiring, and four mounting brackets with screws for immediate deployment.
