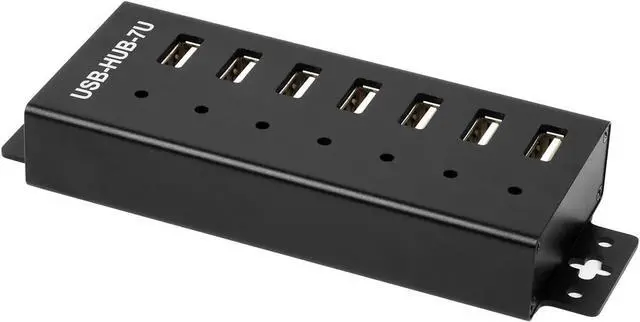

Industrial Grade USB HUB Extending 7X USB 2.0 Ports 7X Concurrent USB Connections MTT Technology(Without Power Supply)

DESCRIPTION
Industrial Grade USB HUB, Extending 7x USB 2.0 Ports
Industrial 7U USB HUB
Industrial-Grade Materials, Stable And Reliable Performance,
Rugged & With A Variety Of Protective Functions
Suitable For IndustrialOffice With Higher Level Device Requirements
Features At A Glance
7x extended USB ports compatible with USB 20 11
Industrial grade HUB chip, adopting MTT technology, allows stable and smooth 7x concurrent USB connections
ESD protection for each USB port, preventing electric surge damage and data loss
Over-voltage protection, effectively preventing other high voltage power input from damaging the connected devices
Multiple protection circuits: over-voltage, over-current, short circuit, over-temperature, reverse current, under voltage lock-out, 8KV ESD protection, filtering protection, etc.
LED indicators for monitoring operating statuses of power supply and USB ports
Industrial grade metal case, rugged & with mounting holes for easy installation
Specifications
USB PORT
USB 20
BAUD RATE
Theoretically up to 480Mbps
USB HUB INPUT
operating voltage5V
connectorUSBB
USB OUTPUT
operating voltage:5V@Imax:1.2A
connector:USB-A
EXTERNAL POWER
power supply voltage:DC 5V
connector:DC jack
OPERATING ENVIRONMENT
-40 ~ 85
OS SUPPORT
OS (8.6 or above), Linux(2.4.20 or above), Windows 11 / 10 / 8.1 / 8 / 7 / XP
up to 1.2A Max output current for each USB ports, when there's enough power input
comes with 5V 4A power supply, for higher USB loads, it is recommended to replace a power supply with higher power
7x Extended USB Ports
Allows Concurrent Use Of Multiple Devices
Extended 7x USB2.0 Ports For Or PC At The Same Time
Avoid Repeated Unplugging, More Convenient To Use
Industrial Grade USB HUB Chip
MTT Technology, 7x Concurrent USB Connections, More Stable And Smooth
Multiple Protections, More Safe
Over-Voltage, Over-Current, Short Circuit, Over-Temperature, Reverse Current, Under Voltage Lock-Out, 8KV ESD Protection, Filtering Protection...
Multiple OS Support, & Play
Application Environments
Suitable For IndustrialOffice Environments With Higher Level Device Requirements
7x USB
Industrial chip allows 7x USB connections stable smooth
Small and compact easy to install
Flexible installation USB port extension for sorts of devices

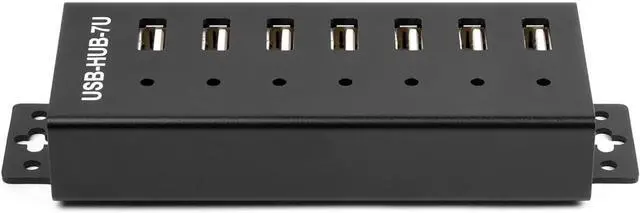

Reserved screw holes
Easy to mount industrial metal case rugged
Detachable bracket
Suitable for industrial applications in different scenarios
Common Device Support

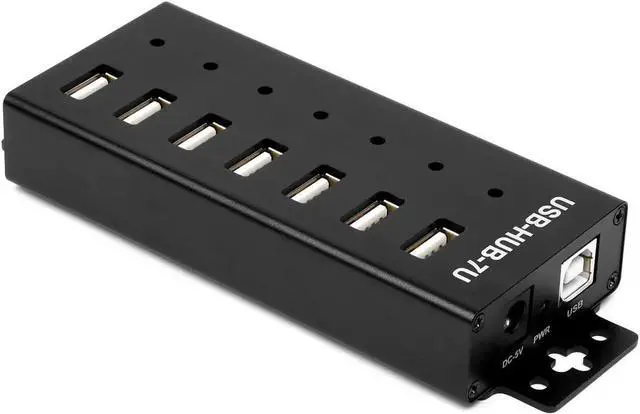

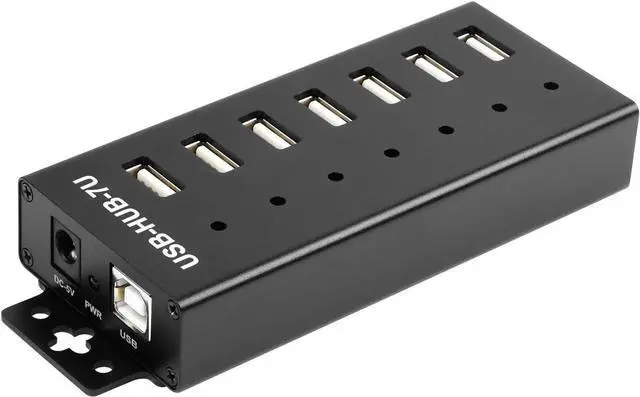

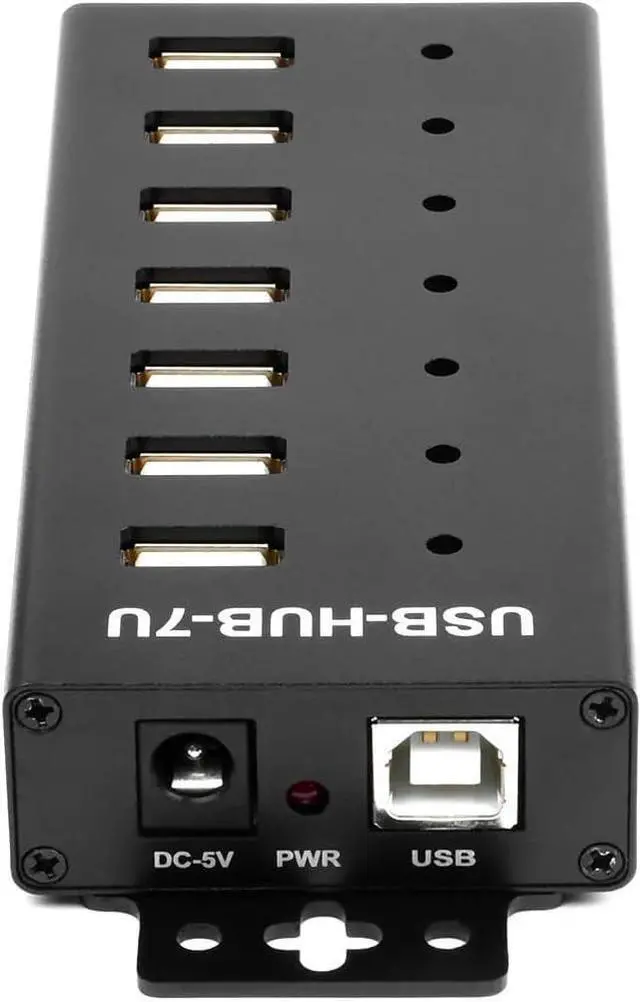

Interface Introduction
Outline Dimensions
Resources Services
Wikiwwwwaveshare.com/wiki/USB-HUB-7U
PACKAGE CONTENT
Weight:0.336 kg
USB-HUB-7U x1
USB cable ~1.2m x1
OPTIONS5V 4A power adapter x1
==========
Hign-concerned Chemical : None
Model Number : USB-HUB-7U
Demo Board Type : FPGA
Certification : None
Origin : Mainland
USB PORT : USB 2.0
BAUD RATE : Theoretically up to 480Mbps
OPERATING ENVIRONMENT : -40 ~ 85
