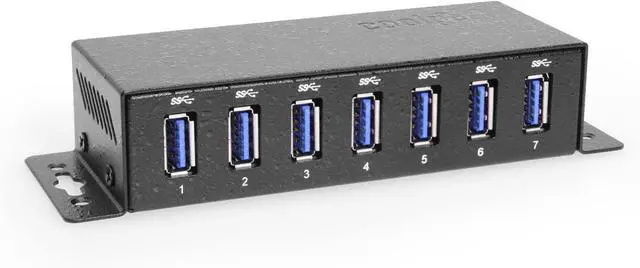

Coolgear 7 Port USB Hub w/Power Adapter - 5Gbps Data, ESD Protection, Self-Powered with DC Input, Mountable Metal Housing

Industrial Grade | +5V DC Input | Surge Protection | Surface Mountable | 5

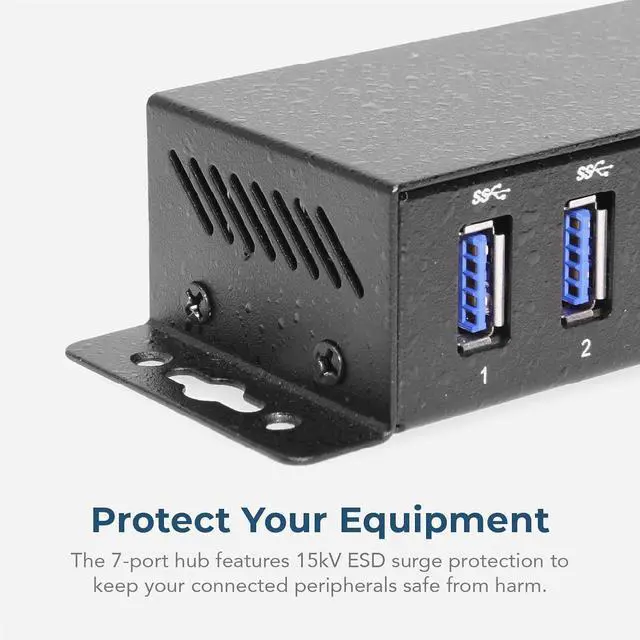

Gbps Protect Your Equipment: The 7-port hub features 15kV ESD surge protection to keep your connected peripherals safe from harm.
Super Fast Speeds: This USB hub is 3.2 Gen 1 compliant, ensuring super-fast 5Gbps data transfer speeds. It supports super speed, high speed and full speed which enables it to be compatible with USB 2.0 / 1.1.
Small-Scale Quality: Housed in a compact steel chassis, the 4-port hub is perfect for discreet installations in offices, labs, warehouses, heavy machinery, automation equipment, and other industrial applications.

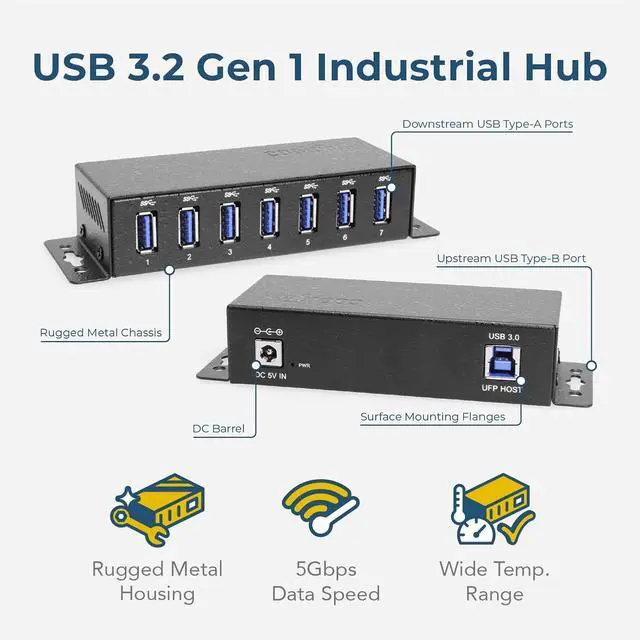

Upstream: 1 USB port, Type B connector
Downstream: 7 USB ports, Type A connectors
Power Connector: DC Barrel 2.5 mm ID × 5.5 mm OD, Center Pin Positive

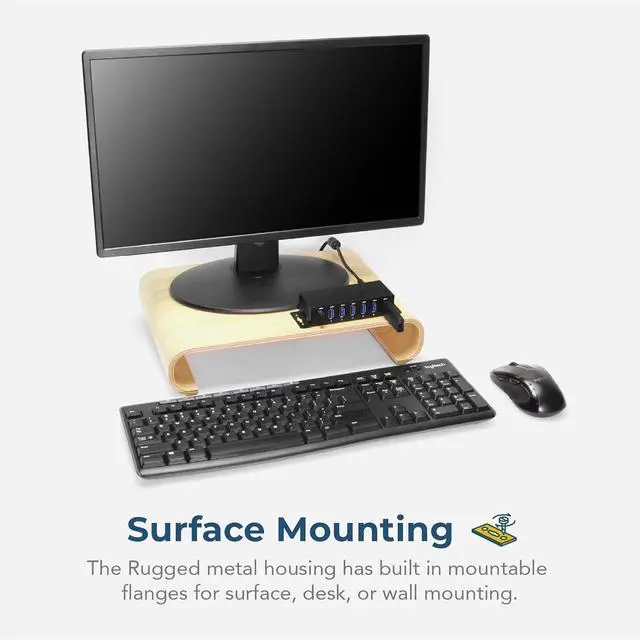

Mounting Options: Wall &
Surface Description Introduction: USB 3.2 Gen 1 powered hub with industrial-grade chassis and surface mounting flanges. The CG-U3MINI7PH is a 5V DC input, generation 1 USB 3.2 Gen 1 hub with ESD and Surge protection. This USB 3.2 Gen 1 Hub will support fast charging for Apple and Samsung Galaxy devices. Each port is protected individually to help keep your peripherals safe. The USB 3.2 Gen 1 Hub uses a GL 3510 chip, each port is on an individual circuit to maintain high current and protection. The GL3510 Hub controller chip features native fast-charging and complies with USB-IF battery charging specification rev 1.2.
Features: Compliant with USB 3.2 Gen 1 Specification Upstream port supports Super-Speed (SS), High-Speed (HS) and Full-Speed (FS) traffic Downstream ports support SS, HS, FS, and Low-Speed (LS) traffic 1 control pipe and 1 interrupt pipe Backward compatible to USB specification Revision 2.0 / 1.1 Compliant with USB Battery Charging Revision v 1.2, supporting CDP, DCP, and ACA-Dock Downstream ports can be turned from a Standard Downstream Port (SDP) into Charging Downstream Port (CDP) or Dedicated Charging Port (DCP) Downstream devices can be charged while upstream VBUS is not present, which can be applied on wall charger applications Upstream port is capable of charging and data communicating simultaneously for portable devices supporting ACA-Dock or proprietary charging protocols Compatible with Windows 7, 8, 10, 11, Linux and Mac OS X

Specifications

:
Chip: GL3510 USB 3.2 Gen 1 Gen Compliant Supports High Speed and Full Speed transmit and Receive Complies with USB-IF battery charging specification rev 1.2 Automatic switching between self-powered and bus-powered modes

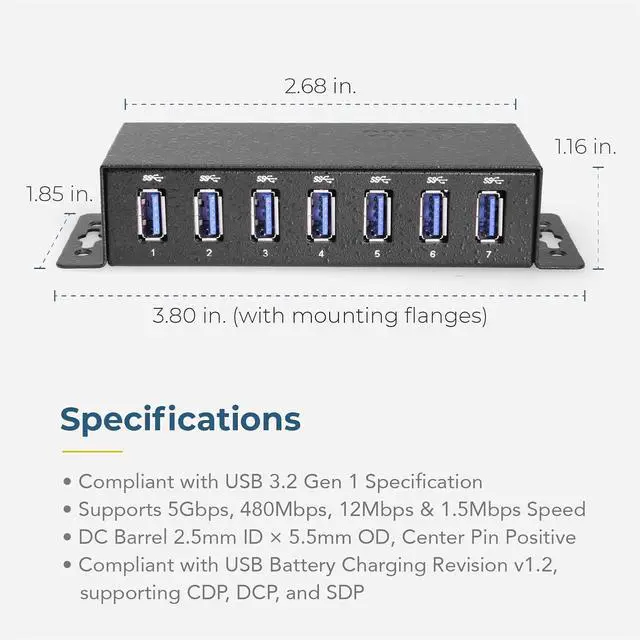

Item Dimensions: 4.61 (L 5.57 w/ears) x 1.85 (W) x 1.16 (H)
Item Weight:. 56 lbs. ( 5.2 oz)

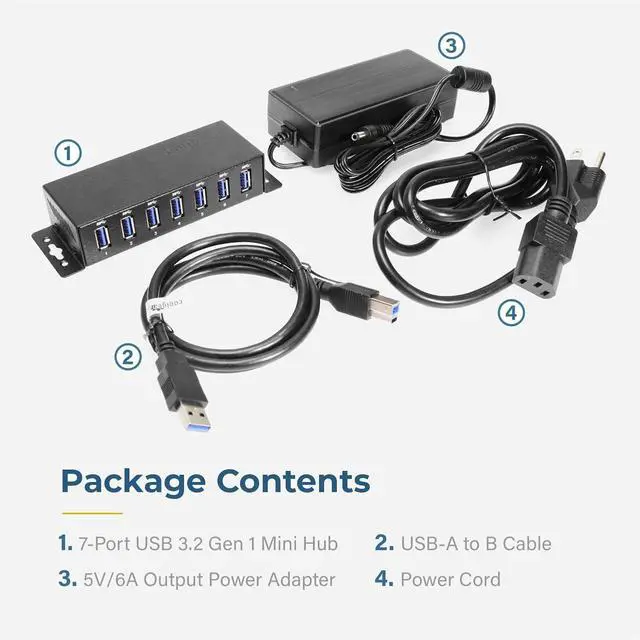

Package Contents: USB 3.2 Gen 1 7-Port Hub 6 Amp 5V DC Mini-Switching Power Adapter 3ft. USB A to B Cable for Hub *Surface Mounting screws not included.

Specifications

Product

Specifications

Environmental Operating Temperature 0°C to 55°C (32°F to 131°F) Storage Temperature -20 to 75°C (-4 to 167°F) Humidity 5% ~ 95% (non-condensing) Performance ESD Protection 15KV Surge Protection for Each Port Isolated/Surge Protected Yes Max Data Transfer Rate 5Gbps Over Current Protection Y Over Voltage Protection Y per buck Surge Protection 350W Hardware Chipset GL3510 Charging Protocols BC 1.2, Charging Downstream Port (CDP), Dedicated Charging Port (DCP), Samsung, Standard Downstream Port (SDP) Per USB Port Current 2A Product Information Warranty 1 year from date of purchase Power Input Voltage +5V DC Over Current Protection Y Over Voltage Protection Y per buck Power Source AC Adapter Included, DC Barrel Jack 2.5 mm ID × 5.5 mm OD Idle Consumption 57mA @ 5V / 35.6 mA Bus Power External Power Required No Software OS Support Win 11, Linux, Mac OSX, Win 10, Win 7, Win 8 What's in the Box Package Contents Hub, Power Adapter, Power Cable, USB-A to USB-B Cable USB USB Type USB 3.2 Gen 1 Upstream USB Ports 1 Type-B Female USB Downstream USB Ports 7 Type-A Female USB Isolated/Surge Protected Yes Mechanical Color Black Item Dimensions (L × W × H) 5.57 × 1.85 × 1.16 in.

Item Weight 0.56 lbs. Mounting Sty
