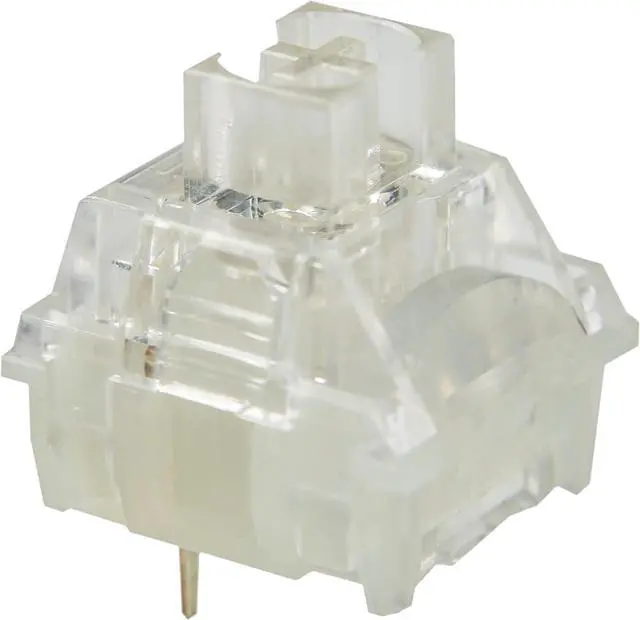

Main image of TTC Ace Bluish White Gold Pink Silent Red Speed Silver Flame Red Frozen Wind Honey MX Switch for MX Mechanical Keyboard (70 pcs, Frozen)

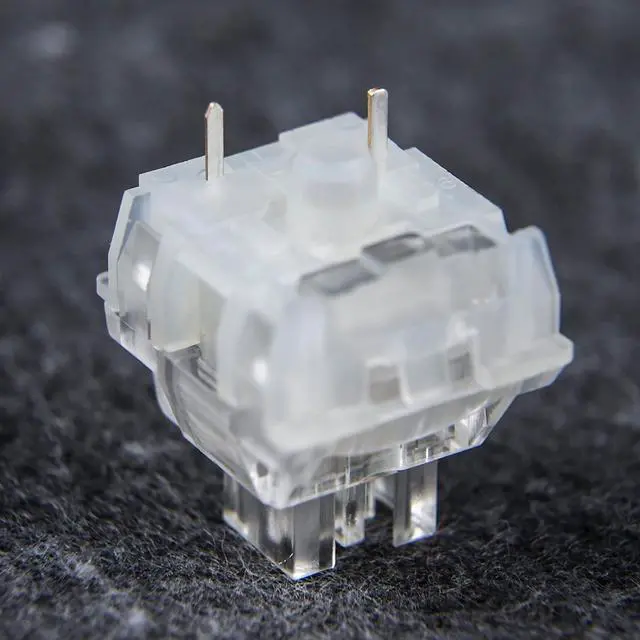

Alt view image 2 of 7 - TTC Ace Bluish White Gold Pink Silent Red Speed Silver Flame Red Frozen Wind Honey MX Switch for MX Mechanical Keyboard (70 pcs, Frozen)

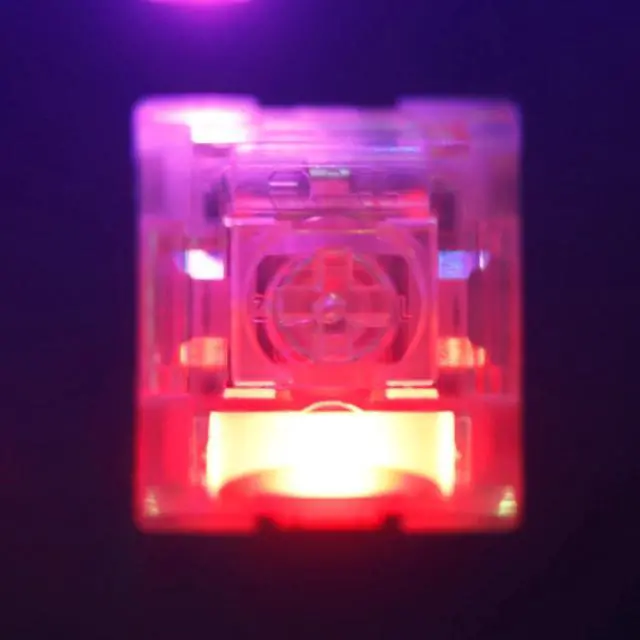

Alt view image 3 of 7 - TTC Ace Bluish White Gold Pink Silent Red Speed Silver Flame Red Frozen Wind Honey MX Switch for MX Mechanical Keyboard (70 pcs, Frozen)

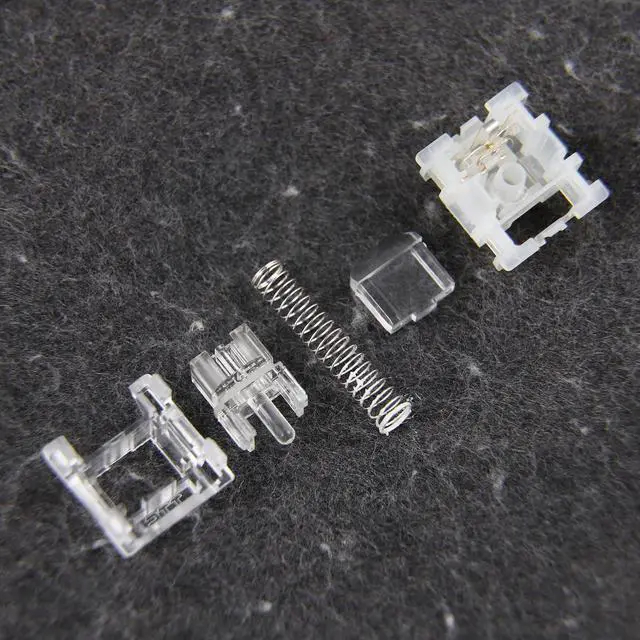

Alt view image 4 of 7 - TTC Ace Bluish White Gold Pink Silent Red Speed Silver Flame Red Frozen Wind Honey MX Switch for MX Mechanical Keyboard (70 pcs, Frozen)

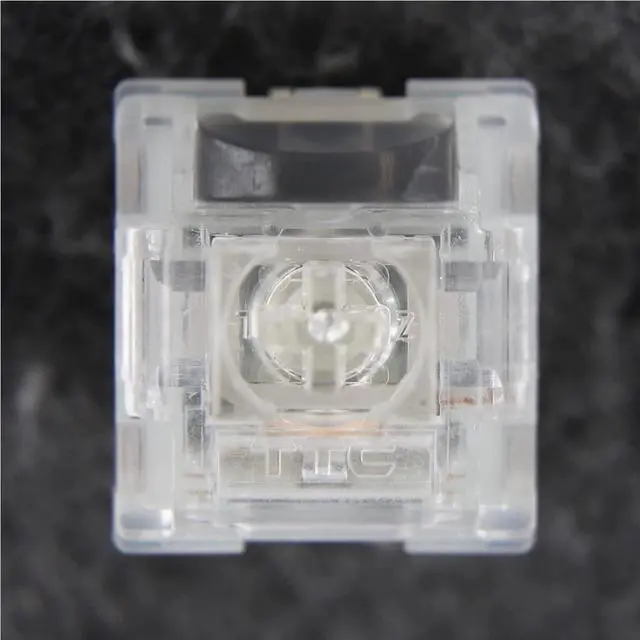

Alt view image 5 of 7 - TTC Ace Bluish White Gold Pink Silent Red Speed Silver Flame Red Frozen Wind Honey MX Switch for MX Mechanical Keyboard (70 pcs, Frozen)

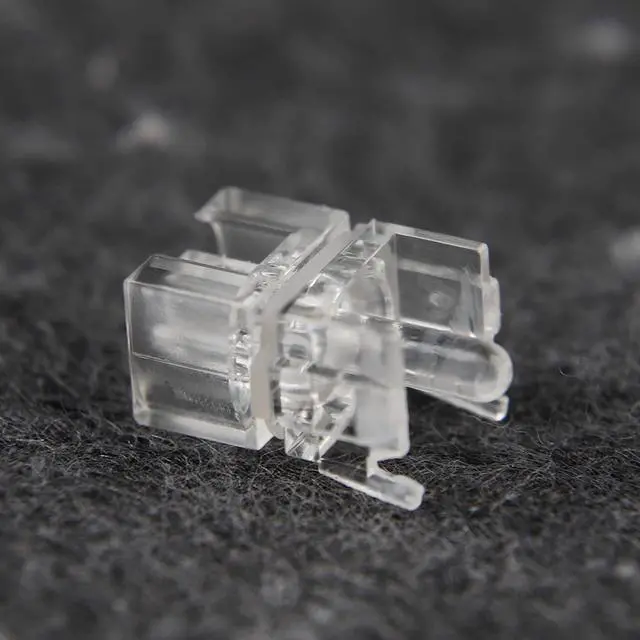

Alt view image 6 of 7 - TTC Ace Bluish White Gold Pink Silent Red Speed Silver Flame Red Frozen Wind Honey MX Switch for MX Mechanical Keyboard (70 pcs, Frozen)

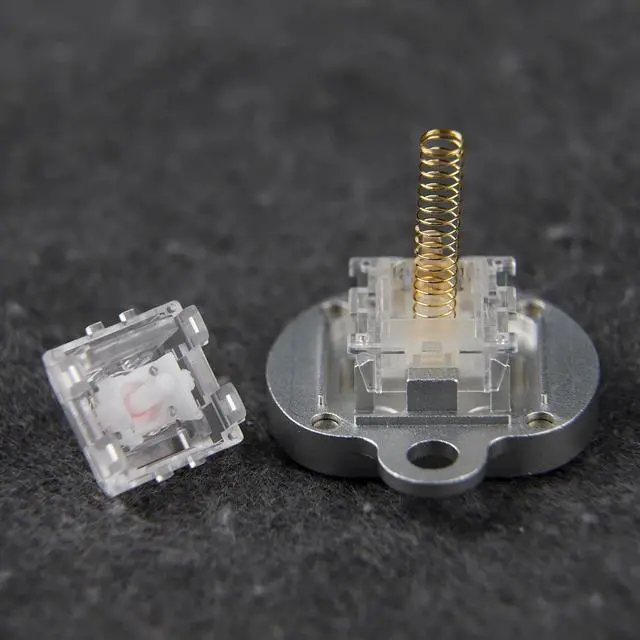

Alt view image 7 of 7 - TTC Ace Bluish White Gold Pink Silent Red Speed Silver Flame Red Frozen Wind Honey MX Switch for MX Mechanical Keyboard (70 pcs, Frozen)

Shop All JAOCDOEN Products | Visit POLING Store

TTC Ace Bluish White Gold Pink Silent Red Speed Silver Flame Red Frozen Wind Honey MX Switch for MX Mechanical Keyboard (70 pcs, Frozen)

This link is only the shaft and switches for mechanical keyboard,no keyboard included.There are eleven options(Ace V2Bluish whiteSilent Bluish whiteGold Pink V2Flame RedHoneySilent RedSpeed Silver V2WindSilent BrownFronzen).
TTC Speed Silver V23 pin linearTotal travel3.4±0.4mmConduction stroke1.08+0.4/-0.2mmPress the initial pressure39gfConduction pressure45±4gfMechanical Life100 Million times21mm silver 2 stage spring
TTC ACE Switch V25 pin LinearSpring Spec: 22mm gold 2 stage springActuation Force: 53gfBottom Force: 60gfPretravel: 2mmTotal Travel: 4mmOperating Life: 100 Million CyclesFactory Lubed: yesCompared with V1, the silver-plated pins are upgraded, and the smoothness is improved.
TTC Gold pink V23 pin LinearSpring Spec: 22mm gold springActuation Force: 37±5gfBottom Force: 42gfPretravel: 2±0.3mmTotal Travel: 4-0.3mmOperating Life: 100 Million CyclesFactory Lubed: yes.Compared with V1, the silver-plated pins are upgraded, and the smo

Overview

Specs

Reviews

This link is only the shaft and switches for mechanical keyboard,no keyboard included.There are eleven options(Ace V2Bluish whiteSilent Bluish whiteGold Pink V2Flame RedHoneySilent RedSpeed Silver V2WindSilent BrownFronzen).
TTC Speed Silver V23 pin linearTotal travel3.4±0.4mmConduction stroke1.08+0.4/-0.2mmPress the initial pressure39gfConduction pressure45±4gfMechanical Life100 Million times21mm silver 2 stage spring
TTC ACE Switch V25 pin LinearSpring Spec: 22mm gold 2 stage springActuation Force: 53gfBottom Force: 60gfPretravel: 2mmTotal Travel: 4mmOperating Life: 100 Million CyclesFactory Lubed: yesCompared with V1, the silver-plated pins are upgraded, and the smoothness is improved.
TTC Gold pink V23 pin LinearSpring Spec: 22mm gold springActuation Force: 37±5gfBottom Force: 42gfPretravel: 2±0.3mmTotal Travel: 4-0.3mmOperating Life: 100 Million CyclesFactory Lubed: yes.Compared with V1, the silver-plated pins are upgraded, and the smoothness is improved.The current version is the light guide column version, which can only support LEDs soldered on the PCB, and does not support plug-in lights
TTC Bluish white3 pin tactileSpring Spec: 22mm gold 2 stage springActuation Force: 42±10gfBottom Force: 60gfPretravel: 2±0.4mmTotal Travel: 3.5±0.4mmOperating Life: 100 Million CyclesFactory Lubed: yes
