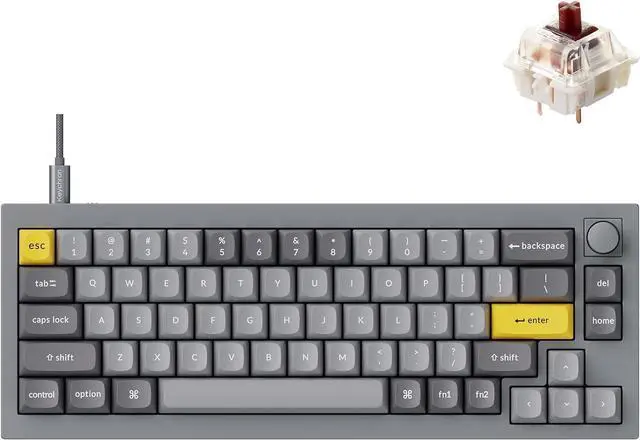

The Keychron Q2 Knob version is a fully customizable mechanical keyboard with out-of-the-box QMK/VIA support and full aluminum frame. Anyone can intuitively master any keyboard keys or macro commands (incl. the knob) through the VIA software. The Q2 is designed to be able to assemble easily, so you can customize the hardware and software with endless possibilities.

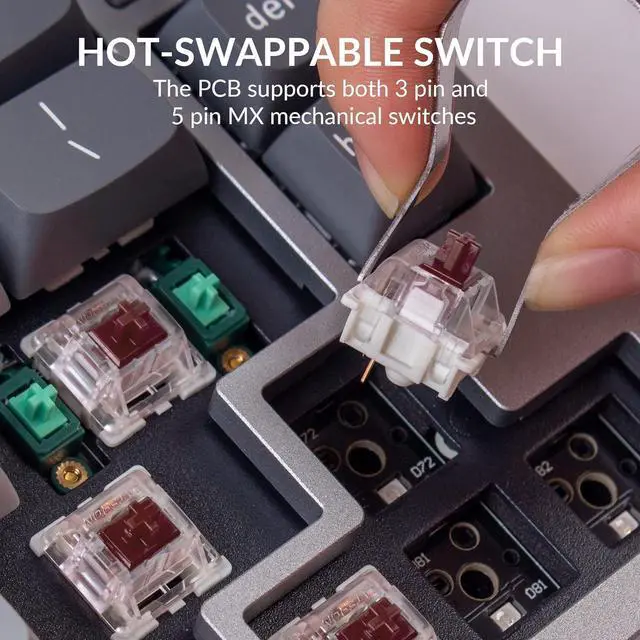

The hot-swappable sockets supports both 3 pin and 5 pin MX mechanical switches (including Cherry, Gateron, Kailh, Panda, etc.), so you can customize your favorite switches without soldering.
This Double-Gasket Structure allows the keyboard to maintain the flexibility of the gasket structure and improves the overall typing sound. We added silicone pads between the top and bottom cases to significantly reduce the sound resonance between the metals and reduce the noise of the impacted metals. Each keyboard component could be reassembled easily, so you can customize it the way you want. If there is any problem with the keyboard, it can be repaired by reassembling.
The Q2 is crafted with CNC machined 6063 aluminum that is processed through polished, anodized, sandblasted, and undergoes 24 more manufacturing stages to this compact 65% layout.
Dimension:12.93 x 4.76 x 1.33 in (327.5 mm x 121 mm x 33.8 mm)Weight:1645 g ± 10 g (3.63 lb ± 0.02 lb)Body Material:Full CNC Machined AluminumPlate Material:SteelPolling Rate: 1000 HzKeycaps:Double-shot PBT Keycaps, OSA Profile (OEM Height, SA Shape)MCU:Ultra-low-Power Arm Cortex-M4 32-bit STM32L432 (128KB Flash)Switches:Gateron G Pro Mechanical BrownHot-Swappable:Yes, compatible with most of the 3pin and 5pin MX switches such as Cherry, Kailh, Panda, Gateron, etc.Backlight:South-facing RGB LEDStabilizers:Screw-in PCB StabsConnectivity:Type-C Wired Keychron Q2 QMK/VIA Custom Mechanical Keyboard-Knob Version Hot-swappable Double-Gasket Design Full Aluminum 65% Compact Layout SPECIFICATIONS
