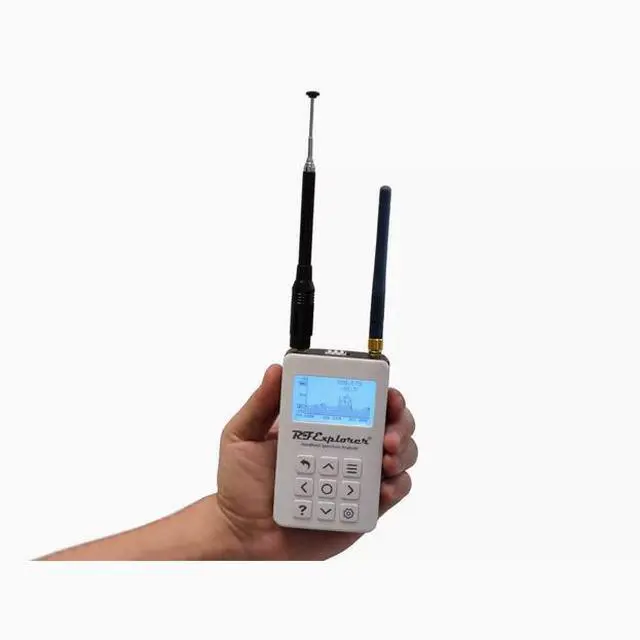

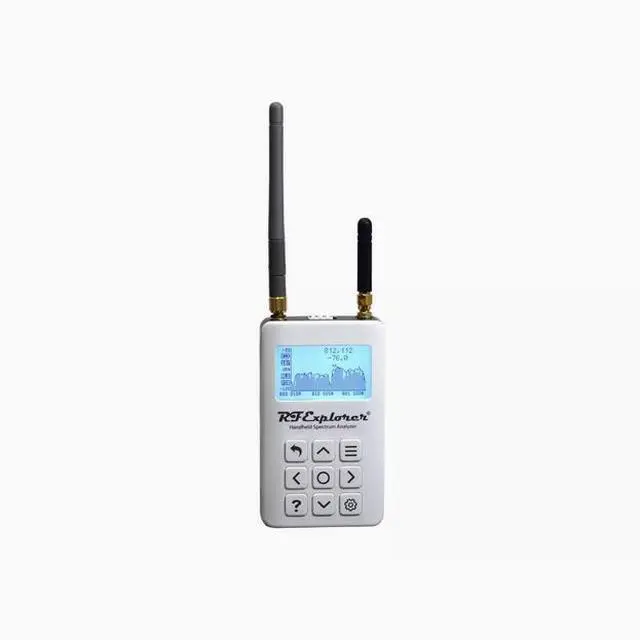

RF Explorer 6G Combo PLUS - Spectrum Analyzer
- The RF Explorer spectrum analyzer is a special device designed to detect highly sensitive signal radiation and identify signal interference, adjust antenna Settings, detect signal leakage and discover hidden errors, as well as many other applications. The combination of small size, high sensitivity and robust design makes it an ideal instrument for both indoor and outdoor measurements. When connected to a computer, it can be controlled through downloadable free software, which features astonishing high-resolution graphics, data storage and recovery capabilities.
- The RF Explorer6G COMBO+ is a powerful spectrum analyzer model, covering the entire 6GHz range from 50KHz to 6.1GHz, with no gaps or limitations.
- Compared with the standard 6G Combo model, the new SLIM design offers an excellent robust casing, a sturdy metal body and shiny paint finish, more convenient side USB connectors and a larger internal battery capacity.
- Product Features:
- Internal LNA amplifier and optional attenuator fo
+
+
Overview
Specs
Reviews
Frequency band:
Left connector: 0.05 -960MHz
Right connector: 240 -6100MHz \ nSingle scan frequency span: 2-960MHz \ nInternal optional LNA 25dB gain \ nInternal optional attenuators 30dB and 60dB \ nwifi analyzer suitable for 2.4GH z and 5GHz bands \ nGraphic LCD 128x64 pixels The backlight provides excellent outdoor visibility and outstanding indoor visibility
It is equipped with a built-in 1800mA/h rechargeable lithium-ion battery
Standard SMA 50-ohm connector

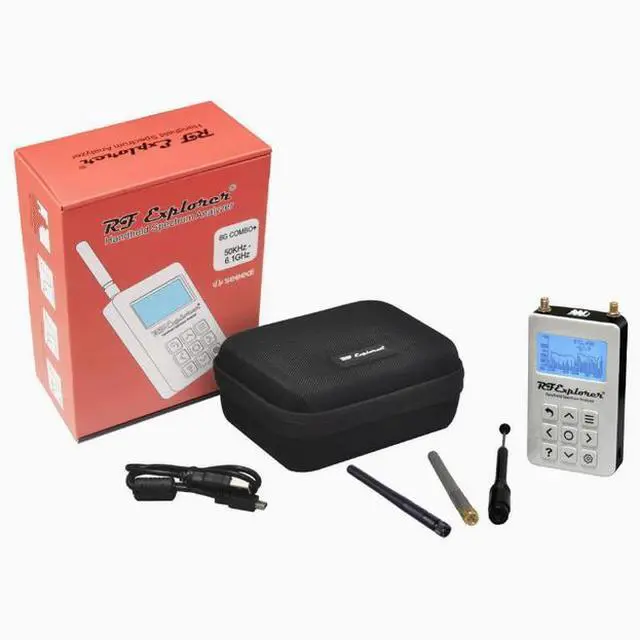

It includes a broadband 144/433 MHZ dual-frequency telescopic antenna
Including UHF 400-900 MHZ rubber duck articulated antennas
It includes a 2.4 /5GHz dual-frequency antenna
Amplitude resolution: 0.5 dBm
Dynamic range: -125 DBM to 10dBm
Maximum input power: +30dBm
Average noise level (typical LNA): -125 DBM
Frequency stability and accuracy (typical values): +- 1.0 ppm \ nAmplitude stability and accuracy (typical values): +-3dBm \ nFrequency resolution: 1Khz
Resolution Bandwidth (RBW): Automatically from 2.6K hz to 600Khz, including support for Windows, Linux and Mac0S X
Left connector: 0.05 -960MHz
Right connector: 240 -6100MHz \ nSingle scan frequency span: 2-960MHz \ nInternal optional LNA 25dB gain \ nInternal optional attenuators 30dB and 60dB \ nwifi analyzer suitable for 2.4GH z and 5GHz bands \ nGraphic LCD 128x64 pixels The backlight provides excellent outdoor visibility and outstanding indoor visibility
It is equipped with a built-in 1800mA/h rechargeable lithium-ion battery
Standard SMA 50-ohm connector
It includes a broadband 144/433 MHZ dual-frequency telescopic antenna
Including UHF 400-900 MHZ rubber duck articulated antennas
It includes a 2.4 /5GHz dual-frequency antenna
Amplitude resolution: 0.5 dBm
Dynamic range: -125 DBM to 10dBm
Maximum input power: +30dBm
Average noise level (typical LNA): -125 DBM
Frequency stability and accuracy (typical values): +- 1.0 ppm \ nAmplitude stability and accuracy (typical values): +-3dBm \ nFrequency resolution: 1Khz
Resolution Bandwidth (RBW): Automatically from 2.6K hz to 600Khz, including support for Windows, Linux and Mac0S X
