NEMA Steel Enclosure, 16 x 16 x 8\'\' NEMA 4X Steel Electrical Box, IP66 Waterproof & Dustproof, Outdoor/Indoor Electrical Junction Box, with Mounting Plate
- Specifications
- Model: SPT
- Color: Gray White(RAL7035)
- Material: 0.059'' / 1.5 mm Carbon Steel
- Coating: Epoxy Polyester Powder Coating
- Mounting Plate: 0.079'' / 2 mm Detachable Galvanized Backplate
- IP Rating: Designed to meet IP66 and NEMA 1, 2, 4, 4X, & 12 specifications
- Connection Type: Hinged
- Feature: Lockable, Waterproof
- Galvanized Backplate Dimensions: 13.8" x 13.8" / 35 x 35 cm

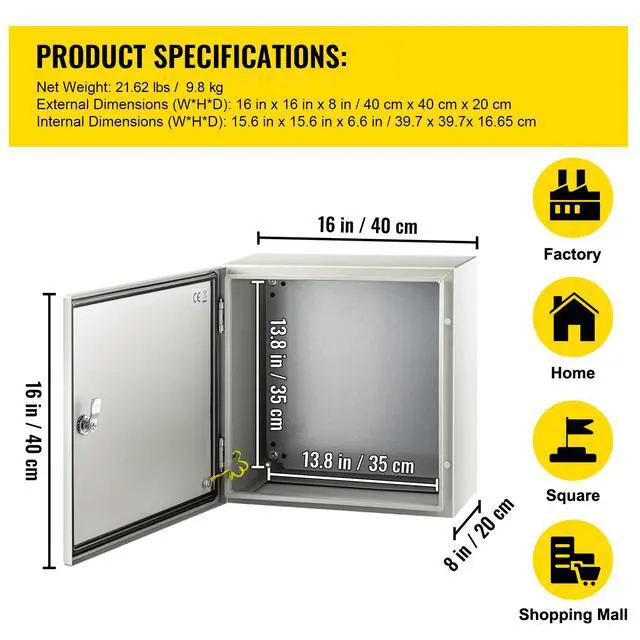

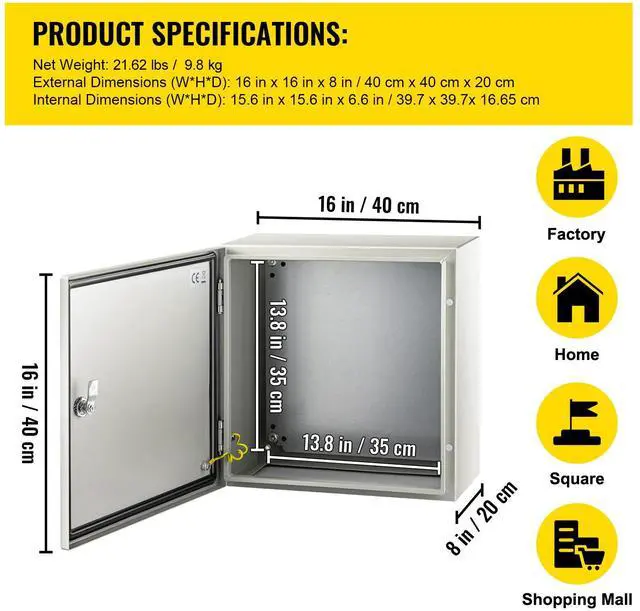

- Outer Dimensions (H x W x D): 16'' x 16'' x 8'' / 40 x 40 x 20 cm
- Inner Dimensions (H x W x D): 15.6'' x 15.6'' x 6.6'' / 39.7 x 39.7 x 16.65 cm
- Product Weight: 24.69 lbs / 11.2 kg
- Certification: CE / ROHS Certification

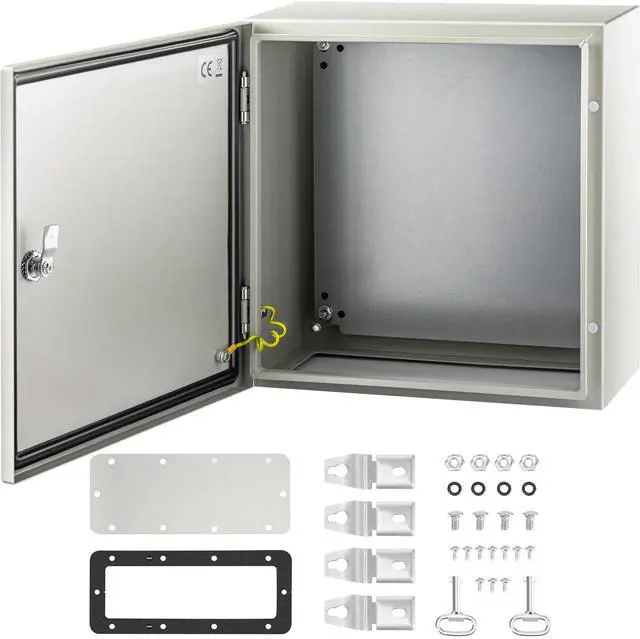

- Package Content
- 1 x Electrical Box
- 2 x Keys
- 1 x Mounting Plate(The mounting plate has been assembled in the box)

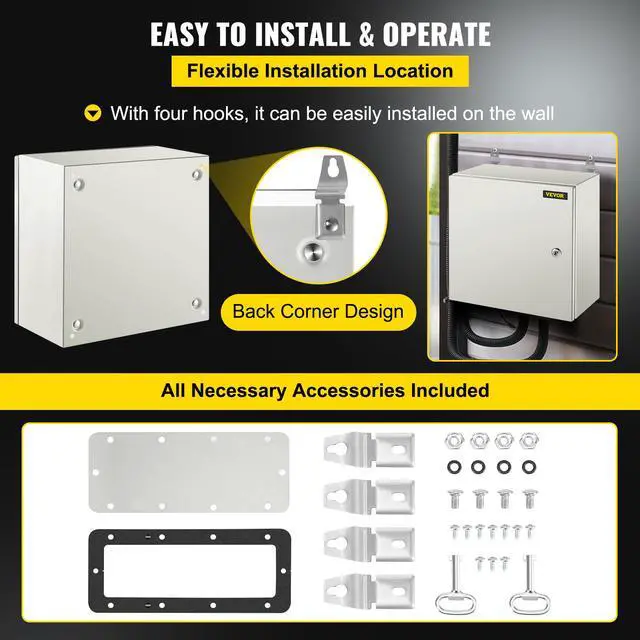

- 1 x Set of Wall Mounting Pendants
- 1 x Bottom Sealing Plate
+
+
Overview
Specs
Reviews
Specifications
Model: SPT
Color: Gray White (RAL7035)

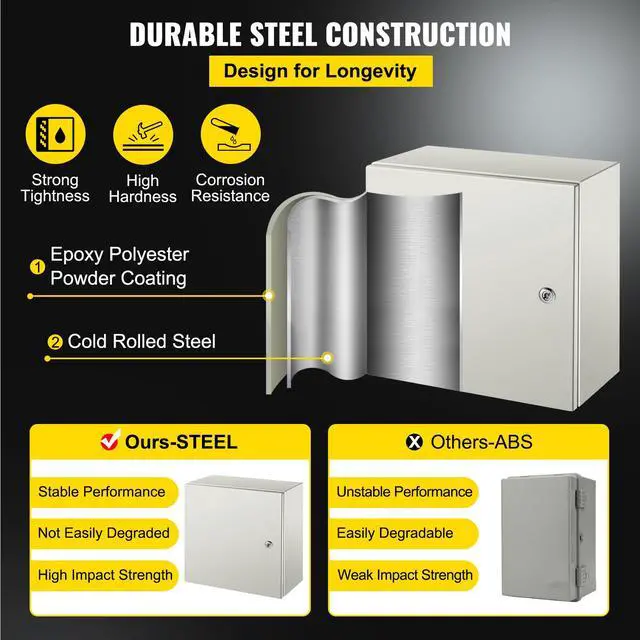

Material: 0.059 '' / 1.5 mm Carbon Steel
Coating: Epoxy Polyester Powder Coating
Mounting Plate: 0.079 '' / 2 mm Detachable Galvanized Backplate
IP Rating: Designed to meet IP66 and NEMA 1, 2, 4, 4X, & 12 specifications
Connection Type: Hinged
Feature: Lockable, Waterproof
Galvanized Backplate Dimensions: 13.8" x 13.8" / 35 x 35 cm
Outer Dimensions (H x W x D): 16'' x 16'' x 8'' / 40 x 40 x 20 cm
Inner Dimensions (H x W x D): 15.6 '' x 15.6 '' x 6.6 '' / 39.7 x 39.7 x 16.65 cm
Product Weight: 24.69 lbs / 11.2 kg
Certification: CE / ROHS Certification
Package Content
1 x Electrical Box
2 x Keys
1 x Mounting Plate (The mounting plate has been assembled in the box)
1 x Set of Wall Mounting Pendants
1 x Bottom Sealing Plate
