NEMA Steel Enclosure, 12 x 12 x 8\'\' NEMA 4X Steel Electrical Box, IP66 Waterproof & Dustproof, Outdoor/Indoor Electrical Junction Box, with Mounting Plate

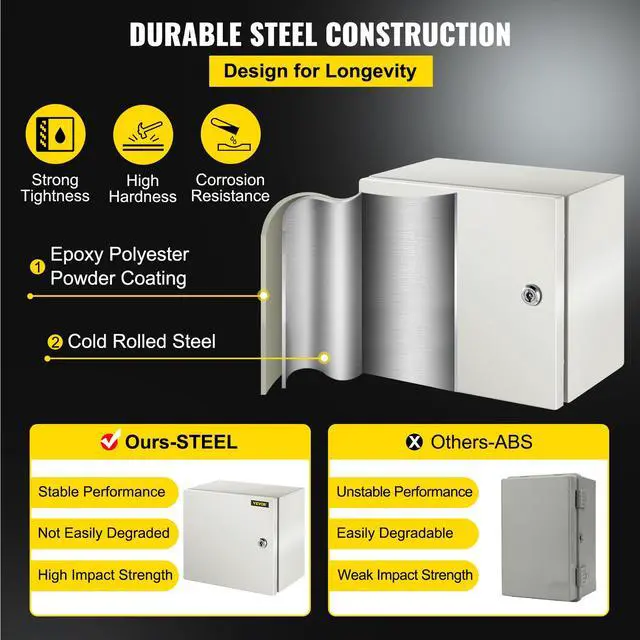

- Sturdy Steel Construction: Made of 1.5 mm cold-rolled steel, precision cut and welded. Our electrical enclosures got CE, ROHS certificates, have stronger wear resistance, keep your equipment is well protected in harsh environments.

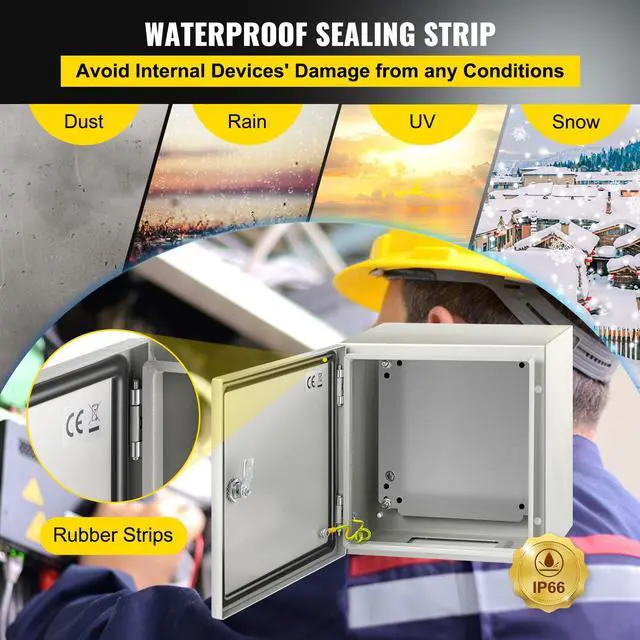

- IP66 Waterproof Grade: The sealing strip of foam plastic has excellent sealing performance, and the enclosed box body is guaranteed to reach the protection level of IP66, which can prevent dirt and water from entering the box when the lid is opened. Ideal choice for factories, construction sites, malls, squares, residential areas, courtyards, etc.

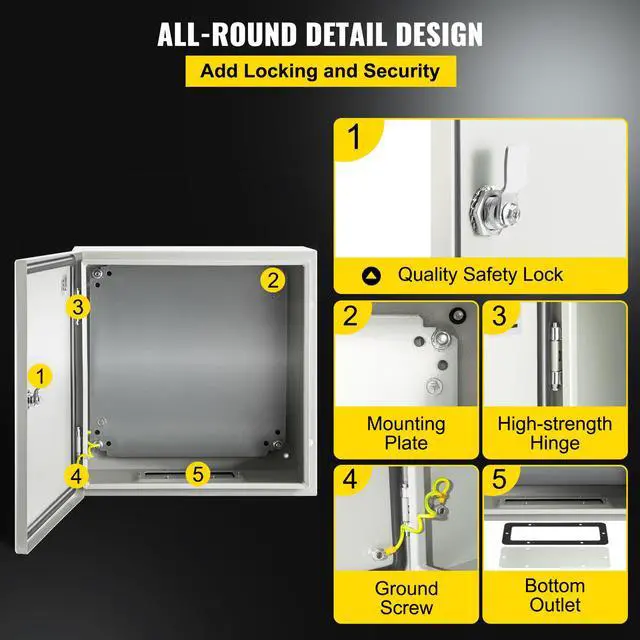

- Reinforced Lock & Hinge: The high-strength hinged cover is designed to ensure that the door is not easily damaged or broken due to squeezing. The shell box adopts a high-quality lock core to increase safety and lockability.
- Convenient Operation: The junction box is equipped with a detachable galvanized mounting backplate for easy installation of electrical components
+
+
Overview
Specs
Reviews
Specifications
Model: SPT
Color: Gray White (RAL7035)
Material: 0.059 '' / 1.5 mm Carbon Steel
Coating: Epoxy Polyester Powder Coating
Mounting Plate: 0.079 '' / 2 mm Detachable Galvanized Backplate
IP Rating: Designed to meet IP66 and NEMA 1, 2, 4, 4X, & 12 specifications
Connection Type: Hinged
Feature: Lockable, Waterproof
Galvanized Backplate Dimensions: 9.8" x 9.8" / 25 x 25 cm

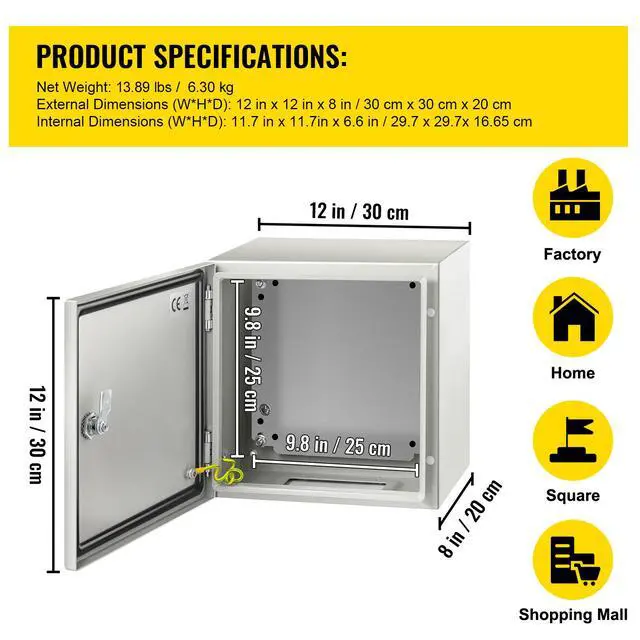

Outer Dimensions (H x W x D): 12'' x 12'' x 8'' / 30 x 30 x 20 cm
Inner Dimensions (H x W x D): 11.7 '' x 11.7 '' x 6.6 '' / 29.7 x 29.7 x 16.65 cm
Product Weight: 16.31 lbs / 7.4 kg
Certification: CE / ROHS Certification

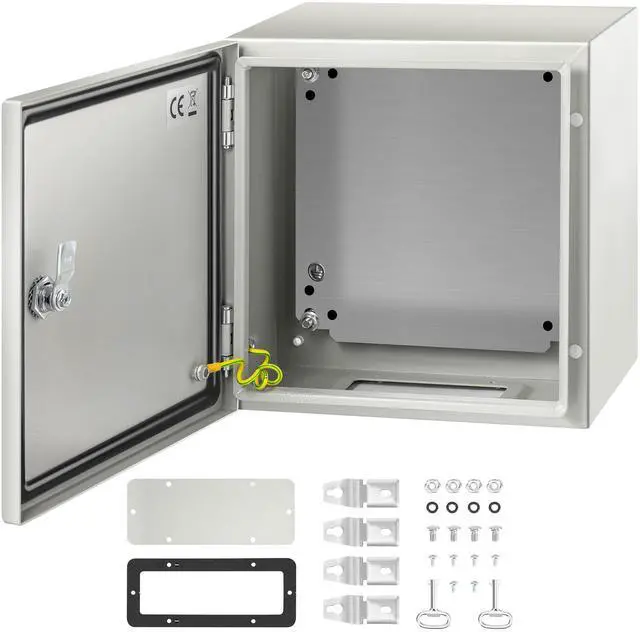

Package Content
1 x Electrical Box
2 x Keys
1 x Mounting Plate (The mounting plate has been assembled in the box)
1 x Set of Wall Mounting Pendants
1 x Bottom Sealing Plate
