Koutech Add-On Card Model IO-MPEU230

Name: Koutech Add-On Card Model IO-MPEU230
Brand: Koutech
SKU: N82E16815201048
Rating: 3 (5 reviews)

Specs

Reviews (5)

Learn more about the Koutech IO-MPEU230

Model
Brand	Koutech
Model	IO-MPEU230

Details
Type	Mini PCI Express to USB Card
External USB Ports	2x USB Ports
Standard	USB 3.0
Data Transfer Rate	Up to 5Gbps
Operating Systems Supported	32-bit & 64-bit Windows XP / Server 2003 / Vista / Server 2008 / Windows 7
Specifications	Power Input: 5V & 12V via 4-pin Molex power connector Output Voltage per Port: DC +5V Output Current per Port: 900mA (max) Operating Temperature: 0°C~ 40°C

Features
Features	Fully compliant with one-lane (x1) PCI Express 2.0 specifications Mini PCI Express bus interface Two (2) 5Gbps SuperSpeed USB 3.0 ports via ICC ICC is a 20-pin connector by Intel USB 3.0 Internal Connector & Cable specification USB 3.0 complies with Intel eXtensible Host Controller Interface (xHCI) SuperSpeed USB 3.0 offers 10 times performance increase over Hi-Speed USB 2.0 SuperSpeed USB 3.0 is backwards compatible with USB 1.0 / 1.1 /2.0 devices (data transfer rate at 1.5 / 12 / 480Mbps) SuperSpeed USB 3.0 is fully compatible with original USB system, peripherals and cables Built-in with 4-pin Molex power connector for added power source to better support power hungry bus-powered devices Ideal connection for digital cameras, scanners, printers, external CD/DVD/Blu-Ray writers, hard disk drives, flash memory drives and etc. Fully Plug-N-Play and Hot Swap compatible

Dimensions & Weight
Dimensions	8.7" x 6.25" x 1.85"
Weight	0.28 lbs.

Packaging

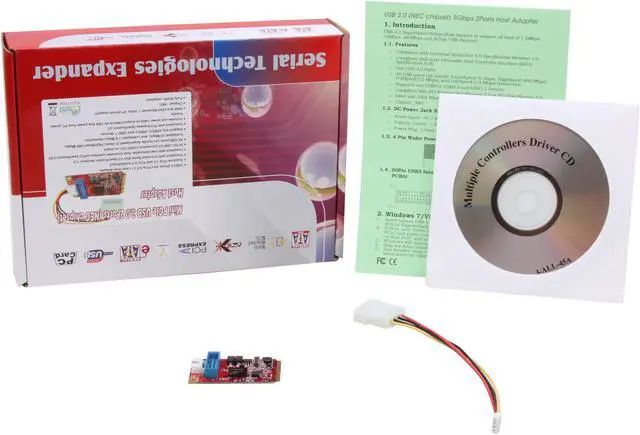

Package Contents	One (1) Mini PCI Express card One (1) Molex power cable Software drivers CD User manual

Additional Information
First Listed on Newegg	November 04, 2011

Return for refund within: 30 days

Return for replacement within: 30 days
