8-Port Dual Link DVI KVMP Switch KIT with VGA support
Learn more about the IOGEAR GCS1208KIT2
Model
Brand
IOGEAR
Model
GCS1208KIT2
Details
Type
D-Sub, DVI
PC Connectors
Monitor: 8 x DVI-I ports (female) Microphone: 8 x Microphone jack Audio: 8 x Stereo earphone jack Keyboard & Mouse: 8 x USB Type B sockets
Console Connectors
Mouse: 1 x USB Type A socket Keyboard: 1 x USB Type A socket Monitor: 1 x VGA port (female) / 1 x DVI-I port (female) Microphone: 2 x Microphone jack (1 x front panel, 1 x rear panel) Audio: 2 x Stereo earphone jack (1 x front panel, 1 x rear panel)
Computer Connections
8 Ports
Monitor Connections
2 Ports
Video Resolution
2560 x 1600
PC Selection
Push Buttons/Hot Keys/OSD
AutoScan Interval
1-255 secs (Default: 5 secs)
LED Indicators
Selected: 8 x Orange On Line: 8 x Orange USB Peripherals: 8 x Green Power On: 1 x Dark Green
Features
Features
One USB console controls eight DVI or VGA computers
Supports both digital (DVI), analog (DVI) video and analog (VGA)
Superior video quality: 2560x1600 (Dual Link DVI), 1920x1200 (Single Link DVI), 2048x1536 (VGA); DDC2
Supports widescreen resolutions
Multiplatform support - Windows, Linux, Mac, Sun
Includes two USB 2.0 peripheral sharing ports
Independent switching of KVM and USB focus
Two-level (Administrator / User) password authorization for enhanced security protection
Cascadable to three levels - control up to 512 computers
IOGEAR's DynaSync technology reads and remembers the monitor's parameters (EDID) so there is no delay or change of video resolution when switching between, or booting computers
Audio enabled - Full bass response provides a rich experience for 2.1 channel surround sound systems
Complete keyboard emulation for error-free booting
Console mouse port emulation/bypass feature supports most mouse drivers and multifunction mice
Mac / Sun keyboard support and emulation
Auto Scan Mode for monitoring all computers
Broadcast mode - allows you to send commands from the console to all computers to perform operations simultaneously
Firmware upgradable
HDCP compatible
Console audio ports on front panel for easy access
Package Contents

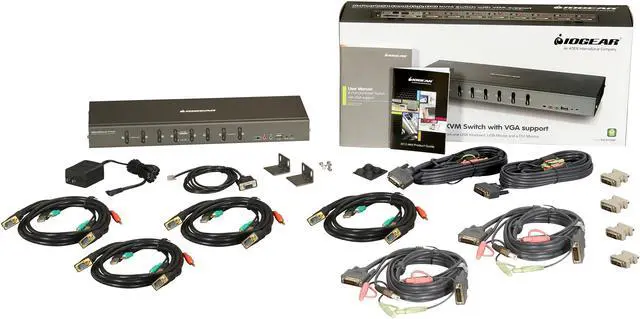

Package Contents
1 x GCS1208 8-port USB Dual Link DVI KVMP Switch 4 x 6ft Dual Link DVI-D USB KVM Cable 4 x 6ft VGA USB Audio / Mic KVM Cable 4 x DVI-A (M) to VGA (F) Adapter 1 x Firmware Upgrade Cable 1 x Power Adapter 1 x Foot Pad Set (4 pcs) 1 x User Manual 1 x Rack Mounting Kit
