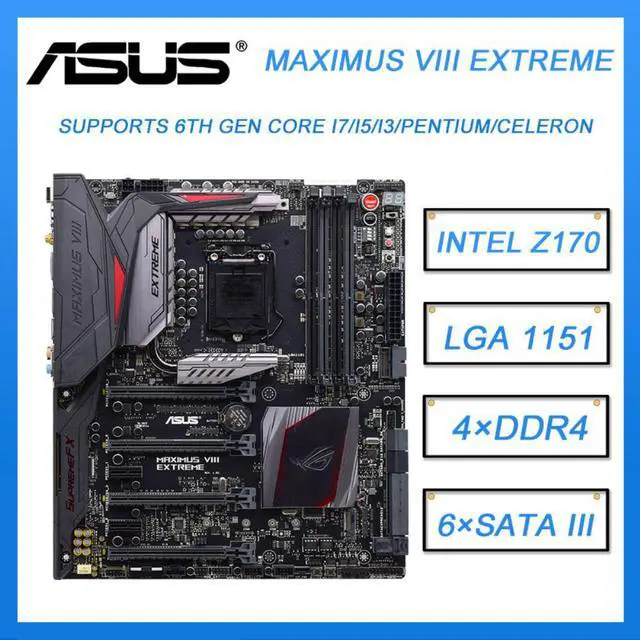

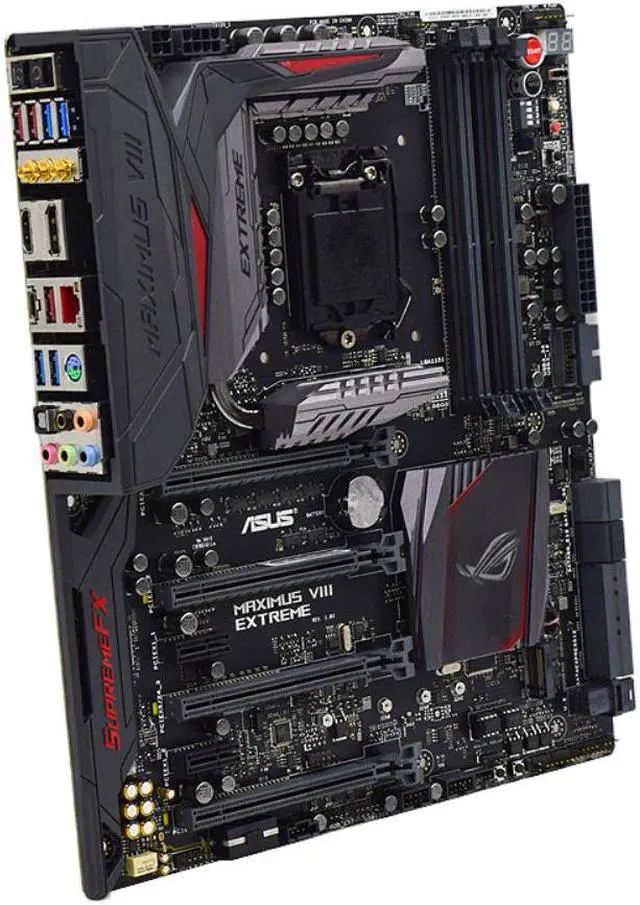

Motherboard LGA 1151 ASUS ROG MAXIMUS VIII EXTREME Motherboard 1151 DDR4 Intel Z170 64GB PCI-E 3.0 M.2 USB3.1 for Core i3-7300

Chipset:Intel Z170
Storage Interface Type:U.2
Onboard LAN:1x RJ45
Package:No
Application:Desktop
Maximum Ram Capacity:64 GB
Chipset Manufacturer:Intel
Back I/O Ports:VGA(D-Sub)
PCI - E standards:PCI - E 3.0
Socket Type:LGA 1151
Model Number:MAXIMUS VIII EXTREME
With CPU:No
Special Function:NONE
Support Memory Type:DDR4
Usage Scenario:Office
Number of PCI:0
Origin:CN(Origin)
Number Of Memory Slots:4
Form Factor:CeB
Support USB Type:USB 3.1 Gen1
Number of PCIe x 4:0
Number of PCIe x 16:4
Memory channel:Double
Quality Certification:ce
Number of SATA Ports:6
Launch Date:2004
Number of PCIe x 1:2
Certification:WEEE
Number of M.2:1
type:MAXIMUS VIII EXTREME

Motherboard chip
Integrated chip sound card/network card
Main chipset Intel Z170
Chipset description Using Intel Z170 chipset
Display chip CPU built-in display chip (requires CPU support)
Audio chip Integrated SupremeFX 2015 8-channel audio chip
Network card chip onboard Intel I219V Gigabit network card
Processor specifications
CPU type Sixth generation Core i7/i5/i3/Pentium/Celeron
CPU socket LGA 1151
CPU description Support Intel 14nm processor
Memory specifications
Memory type 4×DDR4 DIMM
Maximum memory capacity 64GB
Memory description Support dual channel DDR4
3866(OC)/3800(OC)/3733(OC)/3600(OC)/3500(OC)/3466(OC)/3400(OC)/3333(OC)/3300(OC)/3200(OC)/ 3000(OC)/2800(OC)/2666(OC)/2400(OC)/2133MHz memory
Storage expansion
PCI-E standard PCI-E 3.0
PCI-E slot 4×PCI-E X16 graphics card slot, 2×PCI-E X1 slot
Storage interface 1×U.2 interface, 1×M.2 interface, 2×SATA Express interface, 6×SATA III interface
I/O interface
USB interface 3×USB3.1 Type-A interface (backplane), 1×USB3.1 Type-C interface (backplane), 8×USB3.0 interface (4 built-in +4 backplane), 6×USB2.0 Interface (built-in)
Video interface 1×Display Port interface, 1×HDMI interface
Power connector Two 4-pin, one 8-pin, one 24-pin power connector
Other interfaces 1×RJ45 network interface, 1×optical interface, audio interface, 1×PS/2 keyboard and mouse universal interface
Plate type
Motherboard type E-ATX type
Dimensions 30.5×27.2cm
