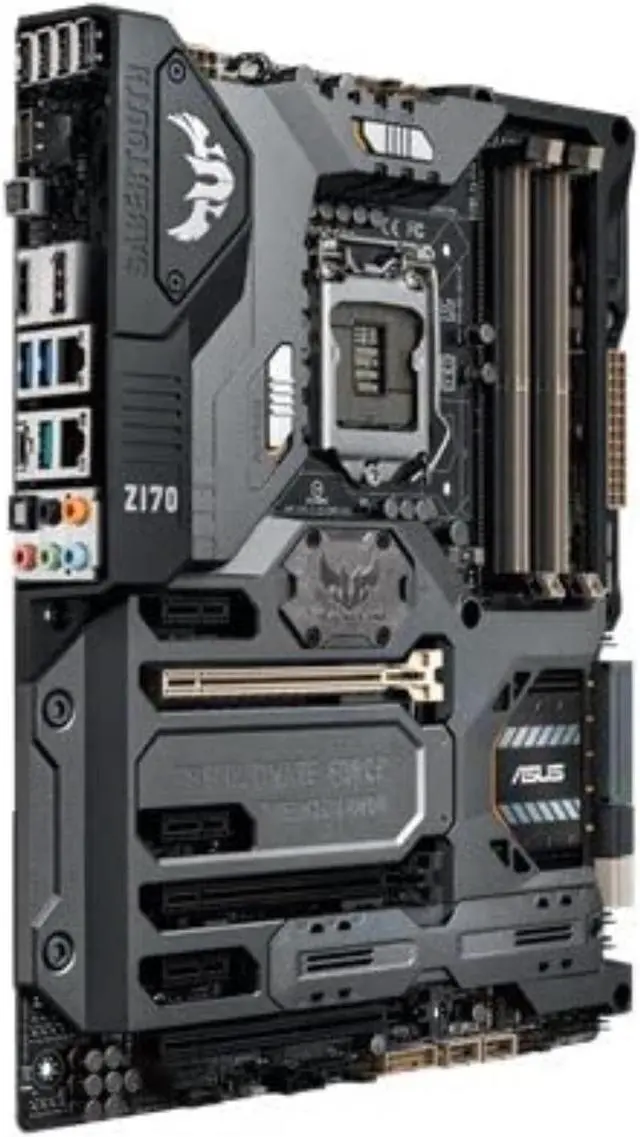

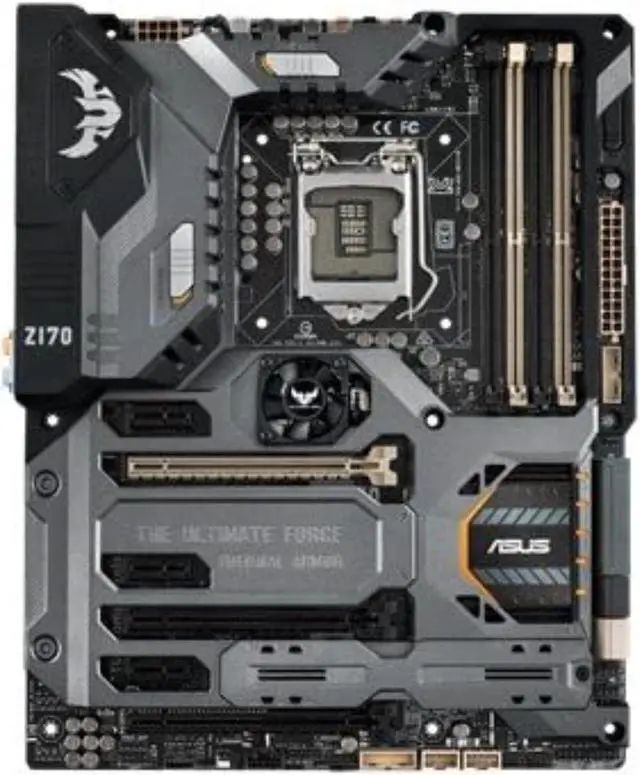

Motherboard LGA 1151 Asus SABERTOOTH Z170 MARK 1 1151Motherboard DDR4 64GB Intel Z170 PCI-E 3.0 USB3.1 ATX For Core i3-6320 cpus

Quality Certification:ce
Chipset:Intel Z170
Socket Type:LGA 1151
Storage Interface Type:SATA
Onboard LAN:1x RJ45
Package:No
Model Number:SABERTOOTH Z170 MARK I1
Application:Desktop
With CPU:No
Special Function:NONE
Maximum Ram Capacity:64 GB
Chipset Manufacturer:Intel
Back I/O Ports:VGA(D-Sub)
Support Memory Type:DDR4
Usage Scenario:Audio & Video
Number of PCI:0
PCI - E standards:PCI - E 3.0
Origin:CN(Origin)
Number of PCIe x 8:0
Number of PCIe x 16:3
Number Of Memory Slots:4
Memory channel:Double
Number of SATA Ports:6
Form Factor:CeB
Support USB Type:USB 2.0
Launch Date:2007
Number of PCIe x 4:0
Number of PCIe x 1:3
Number of M.2:1
type:1151Motherboard DDR4

Motherboard chip
Integrated chip sound card/network card
Main chipset Intel Z170
Chipset description Using Intel Z170 chipset
Display chip CPU built-in display chip (requires CPU support)
Audio chip integrated Realtek ALC1150 8-channel audio chip
Network card chip Onboard Intel I219V Gigabit network card, Realtek RTL8111H Gigabit network card
Processor specifications
CPU type 6th generation Core i7/i5/i3/Pentium/Celeron
CPU socket LGA 1151
CPU description Support Intel 14nm processor
Memory specifications
Memory type 4×DDR4 DIMM
Maximum memory capacity 64GB
Memory description Support dual-channel DDR4 2400/2133MHz memory
Storage expansion
PCI-E standard PCI-E 3.0
PCI-E slot 3×PCI-E X16 graphics card slot, 3×PCI-E X1 slot
Storage interface 1×M.2 interface, 2×SATA Express interface, 6×SATA III interface
I/O interface
USB interface 1 × USB3.1 Type-A interface, 1 × USB3.1 Type-C interface, 6 × USB3.0 interface (4 built-in + 2 backplane), 8 × USB2.0 interface (4 built-in + 4 backplane )
Video interface 1×Display Port interface, 1×HDMI interface
Power connector One 8-pin, one 24-pin power connector
Other interfaces 1×optical interface, 1×TUF Detective USB interface, audio interface
Board type
Motherboard board type ATX board type
Dimensions 30.5×24.4cm
Software management
BIOS performance 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 5.0, multi-language BIOS, ASUS EZ Flash 2, CrashBIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 favorites, quick notes, history, F12 screenshots, F3 shortcut keys, memory SPD information
Other parameters
Multi-graphics technology supports AMD Quad-GPU CrossFireX dual-card four-core crossfire technology
Support AMD 3-Way CrossFireX technology
Support NVIDIA SLI two-way crossfire technology
Support NVIDIA Quad-GPU SLI dual card four core crossfire technology
Overclocking function support
RAID function Support RAID 0, 1, 5, 10
Listing date October 2015
