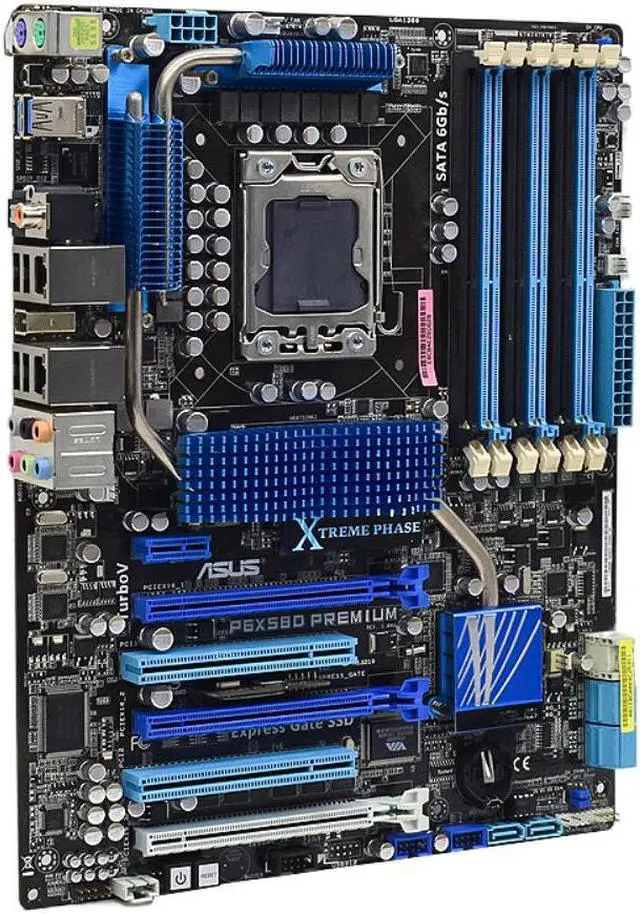

LGA 1366 Motherboard ASUS P6X58D PREMIUM Motherboard LGA 1366 DDR3 24GB SATA 3 USB3.0 3×PCI-E X16 ATX For Core i7 970 cpu

Asus Model:P6X58D Premium
Quality Certification:ce
Chipset:Intel X58
Socket Type:LGA 1366
Storage Interface Type:U.2
Onboard LAN:1x RJ45
Package:No
Model Number:P6X58D Premium
Application:Desktop
With CPU:No
Special Function:NONE
Maximum Ram Capacity:16 GB
Chipset Manufacturer:Intel
Back I/O Ports:VGA(D-Sub)
Support Memory Type:DDR3
Usage Scenario:Office
Number of PCI:0
PCI - E standards:PCI - E 3.0
Origin:CN(Origin)
Number of PCIe x 8:0
Number of PCIe x 16:3
Number Of Memory Slots:6
Memory channel:Double
Number of SATA Ports:8
Form Factor:CeB
Support USB Type:USB 2.0
Launch Date:2010
Number of PCIe x 4:0
Number of PCIe x 1:1
Certification:WEEE
Number of M.2:0

Motherboard chip
Integrated chip sound card/network card
Main chipset Intel X58
Chipset description Intel X58 North Bridge + ICH10R South Bridge chipset
Display chip none
Audio chip integrated Realtek ALC889 8-channel audio chip
Network card chip onboard Marvell 88E8056 dual Gigabit network card
Processor specifications
CPU type Core i7
CPU socket LGA 1366
CPU description Nehalem Bloomfield Core i7 quad-core processor supporting LGA 1366 interface
Memory specifications
Memory type 6×DDR3 DIMM
Maximum memory capacity 24GB
Memory description Support three-channel DDR3 2000 (overclocking)/1600/1333/1066MHz memory
Storage expansion
PCI-E slot 3×PCI-E X16 graphics card slot (1 16X, 2 8X)
1×PCI-E X1 slot
PCI slot 2 × PCI slot
Storage interface 6×SATA II interface; 2×SATA III interface
I/O interface
USB interface 8×USB2.0 interface (4 built-in +4 backplane); 2×USB3.0 interface (located on the backplane)
Power connector One 8-pin, one 24-pin power connector
Other interfaces 2×RJ45 network interface, 1×IEEE 1394 interface, 1×coaxial output interface, 1×optical interface, audio interface, PS/2 mouse, PS/2 keyboard interface
Plate type
Motherboard board type ATX board type
Dimensions 30.5×24.4cm
Software management
BIOS performance 16Mb Flash ROM, AMI BIOS, PnP, DMI 2.0, WfM 2.0, SM BIOS 2.3, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashBIOS 3
Other parameters
Multi-graphics technology supports NVIDIA 3-way SLI technology
Support ATI 4-channel CrossFireX technology
