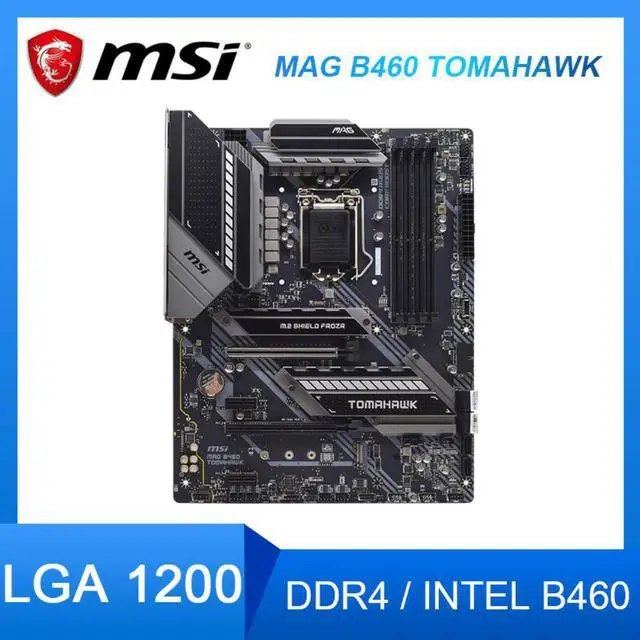

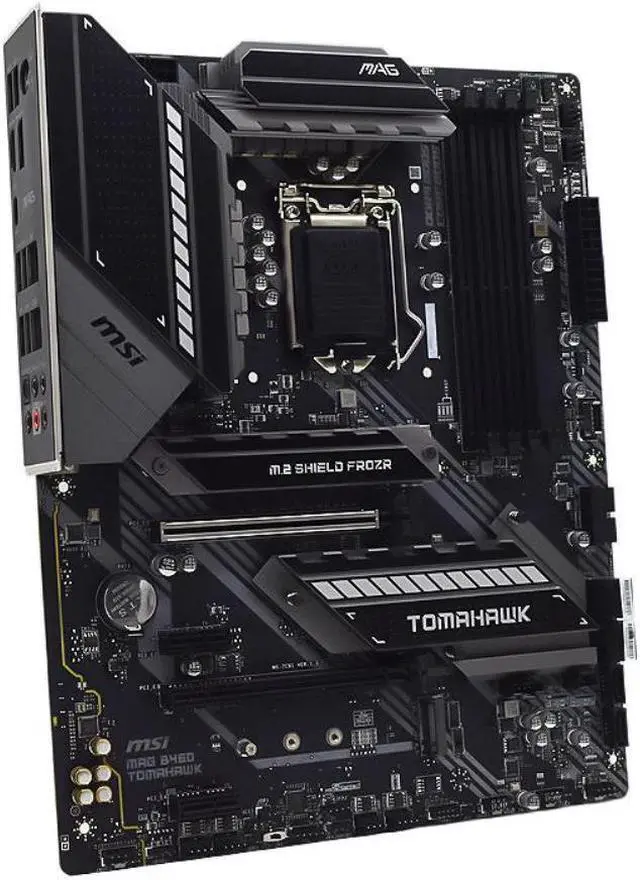

Motherboard LGA 1200 MSI MAG B460 TOMAHAWK DDR4 PCI-E 3.0 M.2 USB3.2 ATX Intel B460 Motherboard For Core i5-10500T i3-10100 cpus

Quality Certification:ce
Chipset:Intel B460
Socket Type:LGA1200
Storage Interface Type:U.2
Onboard LAN:1x RJ45
Package:No
Model Number:MAG B460 TOMAHAWK
Application:Desktop
With CPU:No
Special Function:NONE
Maximum Ram Capacity:128 GB
Chipset Manufacturer:Intel
Back I/O Ports:VGA(D-Sub)
Support Memory Type:DDR4
Usage Scenario:Office
Number of PCI:0
PCI - E standards:PCI - E 3.0
Origin:CN(Origin)
Number of PCIe x 8:0
Number of PCIe x 16:2
Number Of Memory Slots:4
Memory channel:Double
Number of SATA Ports:6
Form Factor:CeB
Launch Date:2004
Number of PCIe x 4:0
Number of PCIe x 1:2
Certification:WEEE
Number of M.2:2
type1:Intel B460 TOMAHAWK
type2:Motherboard LGA 1200 MAG B460 TOMAHAWK
type3:Motherboard LGA 1200
type4:DDR4 Motherboard
type5:Motherboard

Motherboard chip
Integrated chip sound card/network card
Main chipset Intel B460
Chipset description Using Intel B460 chipset
Display chip CPU built-in display chip (requires CPU support)
Audio chip integrated Realtek ALC1200 7.1 channel audio chip
Network card chip Onboard Realtek RTL8125B Gigabit network card, Intel I219V Gigabit network card
Processor specifications
CPU type Tenth generation Core/Pentium/Celeron
CPU socket LGA 1200
Memory specifications
Memory type 4×DDR4 DIMM
Maximum memory capacity 128GB
Memory description Support dual-channel DDR4 2933MHz memory (maximum)
Storage expansion
PCI-E standard PCI-E 3.0
PCI-E slot 2×PCI-E X16 graphics card slot, 2×PCI-E X1 slot
Storage interface 2×M.2 interface, 6×SATA III interface
I/O interface
USB interface 7×USB3.2 Gen1 interface (6×Type-A, 1×Type-C), 1×USB3.2 Gen2 interface (1×Type-C), 6×USB2.0 interface
Video interface 1×Display Port interface, 1×HDMI interface
Power connector One 8-pin, one 24-pin power connector
Other interfaces 2×RJ45 network interface, 1×PS/2 keyboard and mouse universal interface, 5×audio interface
Plate type
Motherboard board type ATX board type
Dimensions 30.5×24.4cm
Software management
BIOS performance 1x128 Mb flash, UEFI AMI BIOS, ACPI 6.2, SM BIOS 3.2·Multi-language
Other parameters
Overclocking function does not support
RAID function Support RAID 0, 1, 5, 10
