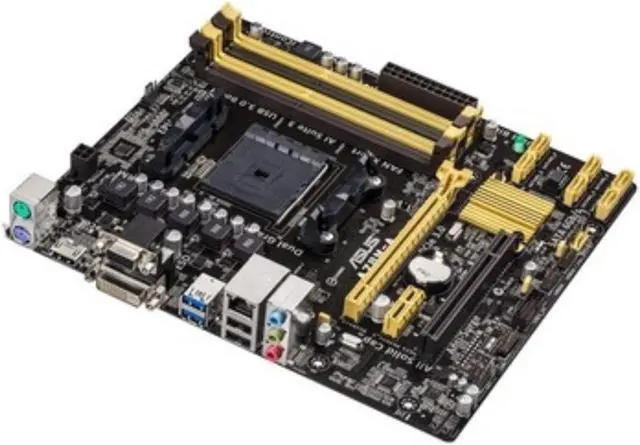

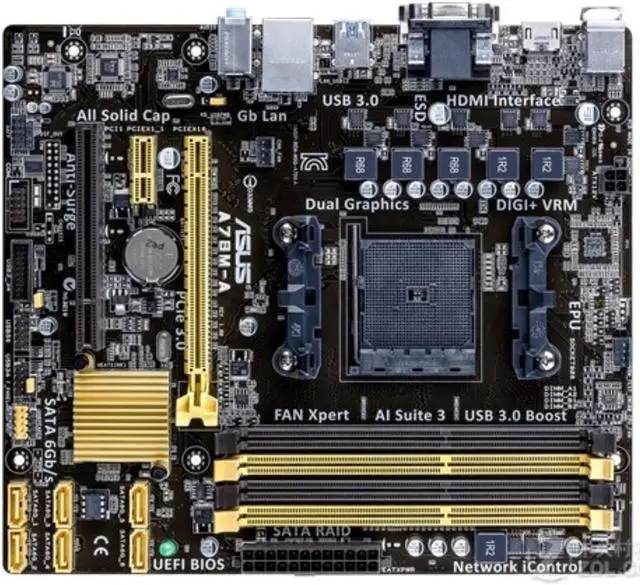

ASUS A78M-A FM2 Motherboard DDR3 64GB USB3.0 SATA3 USB3.0 Micro ATX VGA AMD A78 Motherboard For AMD A6-7400B 5400B cpus

Asus Model:A78M-A
Quality Certification:ce
Chipset:AMD A78
Socket Type:Socket FM2
Storage Interface Type:U.2
Onboard LAN:1x RJ45
Package:No
Model Number:A78M-A
Application:Desktop
With CPU:No
Special Function:NONE
Maximum Ram Capacity:32 GB
Chipset Manufacturer:AMD
Back I/O Ports:VGA(D-Sub)
Support Memory Type:DDR3
Usage Scenario:Office
Number of PCI:1
PCI - E standards:PCI - E 3.0
Origin:CN(Origin)
Number of PCIe x 8:0
Number Of Memory Slots:4
Memory channel:Double
Number of SATA Ports:6
Form Factor:CeB
Launch Date:2013
Number of PCIe x 4:0
Number of PCIe x 1:1
Certification:WEEE

Motherboard chip
Integrated chip sound card/network card
Main chipset AMD A78
Chipset description Using AMD A78 chipset
Display chip integrated ATI Radeon R/HD7000 display core
Audio chip integrated Realtek ALC887 8-channel audio chip
Network card chip Onboard Realtek RTL8111GR Gigabit network card
Processor specifications
CPU socket Socket FM2/FM2+
Memory specifications
Memory type 4×DDR3 DIMM
Maximum memory capacity 64GB
Memory description Support dual-channel DDR3 2400 (overclocking)/2133/1866/1600/1333MHz memory
Storage expansion
PCI-E slot 1×PCI-E X16 graphics card slot, 1×PCI-E X1 slot
PCI slot 1 × PCI slot
Storage interface 6×SATA III interface
I/O interface
USB interface 6 × USB3.0 interface (4 built-in + 2 backplane), 4 × USB2.0 interface (2 built-in + 2 backplane)
Video interface 1×VGA port, 1×DVI port, 1×HDMI port
Power connector One 4-pin, one 24-pin power connector
Other interfaces 1×RJ45 network interface, audio interface, 1×PS/2 mouse, 1×PS/2 keyboard interface
Board type
Motherboard type Micro ATX type
Dimensions 23.6x20.8cm
Software management
BIOS performance 64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.6, ACPI 4.0a, multi-language BIOS, ASUS EZ Flash 2, ASUS CrashBIOS 3, favorites, quick notes, history Record, F12 screenshot, F3 shortcut key function and ASUS DRAM SPD (Serial Presence Detect) memory information
Other parameters
Power supply mode 3+2 phase
RAID function Support RAID 0, 1, 10, JBOD
