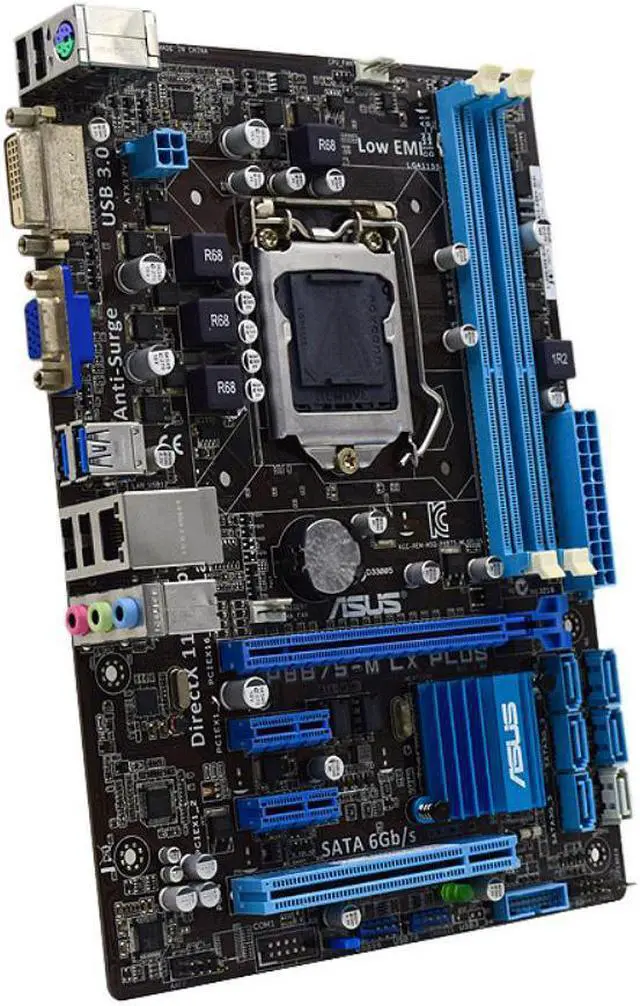

Motherboard LGA 1155 ASUS P8B75-M LX PLUS 1155 Motherboard DDR3 Intel B75 16GB SATA III USB3.0 PCI-E 3.0 For Core i3-3220 cpus

Asus Model:P8B75-M LX PLUS
Chipset:Intel B75
Onboard LAN:1x RJ45
Maximum Ram Capacity:16 GB
With CPU:No
Support Memory Type:DDR3
Number of PCI:0
Storage Interface Type:U.2
Package:No
Application:Desktop
Chipset Manufacturer:Intel
Back I/O Ports:VGA(D-Sub)
PCI - E standards:PCI - E 3.0
Socket Type:LGA 1155
Model Number:P8B75-M LX PLUS
Special Function:NONE
Usage Scenario:Office
Origin:CN(Origin)
Number of PCIe x 8:0
Number Of Memory Slots:2
Form Factor:CeB
Number of PCIe x 16:1
Memory channel:Double
Number of SATA Ports:6
Launch Date:2004
Quality Certification:ce
Number of PCIe x 1:2
Certification:WEEE
Number of M.2:0
type1:Motherboard LGA 1155 DDR3 Motherboard
type2:Intel B75 Motherboard
type3:LGA 1155 DDR3 Motherboard
type4:Motherboard DDR3

Motherboard chip
Integrated chip sound card/network card
Main chipset Intel B75
Chipset description Using Intel B75 chipset
Display chip CPU built-in display chip (requires CPU support)
Audio chip integrated Realtek ALC887 8-channel audio chip
Network card chip Onboard Realtek RTL8111F Gigabit network card
Processor specifications
CPU type Core i7/Core i5/Core i3/Pentium/Celeron
CPU socket LGA 1155
CPU description Support Intel 22/32nm processor
Memory specifications
Memory type 2×DDR3 DIMM
Maximum memory capacity 16GB
Memory description Support dual-channel DDR3 2200 (overclocking)/2000 (overclocking)/1800 (overclocking)/1600/1333/1066MHz memory
Storage expansion
PCI-E standard PCI-E 3.0 standard
PCI-E slot 1×PCI-E X16 graphics card slot, 2×PCI-E X1 slot
PCI slot 1 × PCI slot
Storage interface 5×SATA II interface; 1×SATA III interface
I/O interface
USB interface 8 × USB2.0 interface (4 built-in + 4 backplane); 4 × USB3.0 interface (2 built-in + 2 backplane)
Video interface 1×DVI interface
1×VGA interface
Power connector One 4-pin, one 24-pin power connector
Other interfaces 1×RJ45 network interface, audio interface, PS/2 keyboard and mouse universal interface
Plate type
Motherboard type Micro ATX type
Dimensions 24.4×17.5cm
