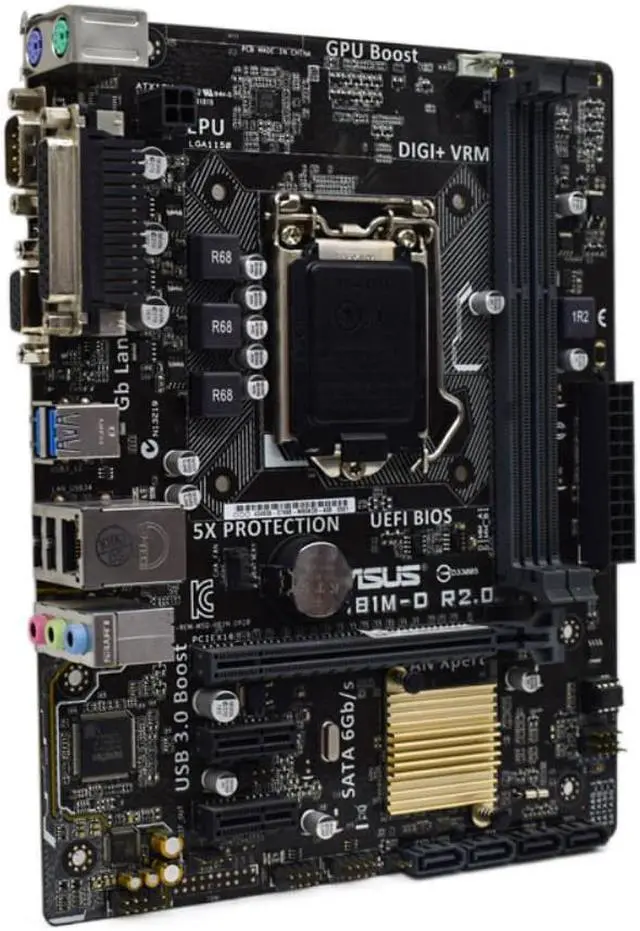

LGA 1150 Motherboard ASUS H81M-D R2.0 Motherboard LGA 1150 DDR3 Intel H81 16GB PCI-E 2.0 USB3.0 Micro ATX For Core i3-4170 cpus

Chipset:Intel H81
Storage Interface Type:SATA 2
Onboard LAN:1x RJ45
Package:No
Application:Desktop
Maximum Ram Capacity:16 GB
Chipset Manufacturer:Intel
Back I/O Ports:VGA(D-Sub)
PCI - E standards:PCI - E 3.0
Socket Type:LGA1150
Model Number:H81M-D R2.0
With CPU:No
Special Function:NONE
Support Memory Type:DDR3
Usage Scenario:Gaming
Number of PCI:0
Origin:CN(Origin)
Number of PCIe x 8:0
Number Of Memory Slots:2
Form Factor:CeB
Support USB Type:USB 2.0
Number of PCIe x 4:0
Number of PCIe x 16:1
Onboard Connectors & Header:SPI TPM Header
Memory channel:Double
Quality Certification:ce
Number of SATA Ports:4
Launch Date:2008
Number of PCIe x 1:2
Number of M.2:0
type:Motherboard LGA 1150 DDR3

Motherboard chip
Integrated chip sound card/network card
Main chipset Intel H81
Chipset description Using Intel H81 chipset
Display chip CPU built-in display chip (requires CPU support)
Audio chip integrated Realtek ALC887 8-channel audio chip
Network card chip Onboard Realtek RTL8111GR Gigabit network card
Processor specifications
CPU type Core i7/i5/i3/Pentium/Celeron
CPU socket LGA 1150
CPU description Support Intel 22nm processor
Memory specifications
Memory type 2×DDR3 DIMM
Maximum memory capacity 16GB
Memory description Support dual-channel DDR3 1600/1333/1066MHz memory
Storage expansion
PCI-E standard PCI-E 2.0
PCI-E slot 1×PCI-E X16 graphics card slot, 2×PCI-E X1 slot
Storage interface 2×SATA III interface, 2×SATA II interface
I/O interface
USB interface 2×USB3.0 interface (2 backplane), 6×USB2.0 interface (4 built-in +2 backplane)
Video interface 1×DVI interface, 1×VGA interface, 1×LPT interface
Power connector One 4-pin, one 24-pin power connector
Other interfaces 1×RJ45 network interface, 3×audio interface, 1×PS/2 mouse, 1×PS/2 keyboard interface
Board type
Motherboard type Micro ATX type
Dimensions 22.6×18.3cm
Software management
BIOS performance 64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 2.0a, multi-language BIOS, ASUS EZ Flash 2, ASUS CrashBIOS 3, favorites, quick notes, history Record, F12 screenshot, F3 shortcut key function and ASUS DRAM SPD (Serial Presence Detect) memory information
Other parameters
Overclocking function support
