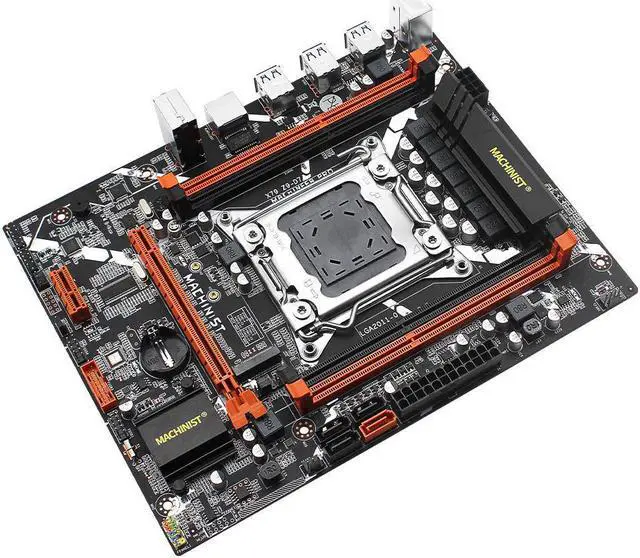

X79 LGA 2011 Motherboard Support Intel Xeon E5 V1 V2 Processor DDR3 Memory NON-ECC/REG ECC RAM M-ATX X79 Z9-D7

Bundle:Motherboards
Quality Certification:ce
Chipset:Intel X79
Socket Type:LGA 2011
Storage Interface Type:SATA 2
Item Condition:
Onboard LAN:1x RJ45
Package:Yes
Model Number:X79 Z9-D7
Application:Desktop
With CPU:No
Special Function:Support For Overclocking
Maximum Ram Capacity:64 GB
Chipset Manufacturer:Intel
Back I/O Ports:1x RJ45
Support Memory Type:DDR3
Usage Scenario:Enthusiast & Overclocking
Number of PCI:0
PCI - E standards:PCI - E 3.0
Origin:CN(Origin)
Number of PCIe x 8:0
Number of PCIe x 16:1
Onboard Connectors & Header:24-pin Main Power Connector
Number Of Memory Slots:4
Memory channel:Double
Number of SATA Ports:4
Form Factor:CeB
Support USB Type:USB 2.0
Number of PCIe x 4:0
Number of PCIe x 1:1
Certification:RoHS
Supports M.2 SSD:2280
Number of M.2:1

Feature:
100% and !
support NGFF SATA M.2 OR NVME PCI-E M.2
support DDR3 REG ECC / Non ECC server memory.
High compatibility for a higher experience.
All solid capacitors, fine workmanship, professional stability.
Specification:
Brand: MACHINIST
Model: X79 Z9-D7
Chipset: x79
Condition: Full
CPU socket: LGA 2011
Structure:Micro-ATX
Memory socket: 4*DDR3
Max memory supported: 4*16G DDR3
Memory type supported:supports DDR3 ECC and Non ECC memory.(Please use Samsung, Kingston, SanDisk, Micron, Hynix international brands. Not compatible with other brands)problem.)compability problem.)
ntegrated video card: NO

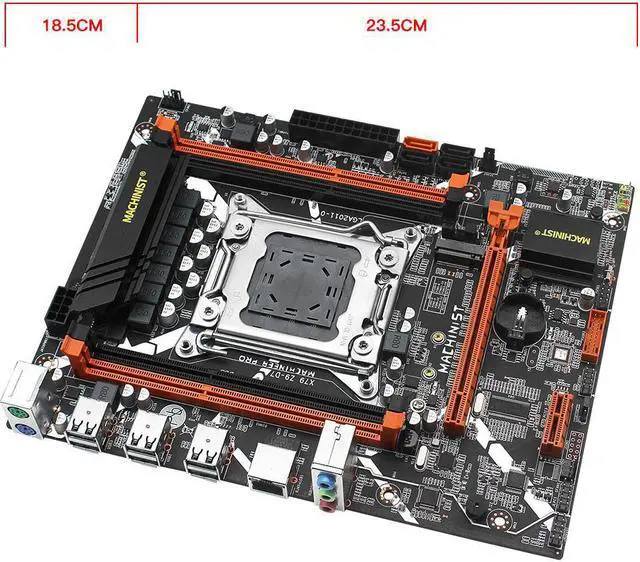

Motherboard dimension:235*185mm
Motherboard weight(including package): 0.9kg or so
Note:
(1) The color of the bottom plate of the slot may vary from batch to batch, but it will not affect the use of the product. The product is constantly optimized and upgraded.
(2) Please allow 1-3mm differs due to manual measurement.
(3) Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understanding.
(4) This planform needs powerful power supply. please make sure your power supply can enough to supports this planform.(at least 500w brand power supply)
